DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3G300-ME48-11FAN AXIAL 337X76.7MM 26VDC RECT ebm-papst Inc. |
111 |
|
Datasheet |
W2G300 | Bulk | Active | 26VDC | Round - 337mm Dia | 76.70mm | 1815.0 CFM (50.82m³/min) | - | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 80.0dB(A) | 320 W | 3650 RPM | 4 Position Rectangular Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | EAC | - |
|
|
8315100198DIAFORCE120 ebm-papst Inc. |
1,303 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 86.00mm | 400.5 CFM (11.21m³/min) | 12.526 in H2O (3119.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 83.5dB(A) | 450 W | 17200 RPM | 4 Wire Leads | IP20 | -13 ~ 158°F (-25 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
412F/2HFAN AXIAL 40X10MM 12VDC WIRE ebm-papst Inc. |
2,281 |
|
Datasheet |
400F | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 800 mW | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.038 lb (17.24 g) |
|
412FFAN AXIAL 40X10MM 12VDC WIRE ebm-papst Inc. |
2,303 |
|
Datasheet |
400F | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.7 CFM (0.132m³/min) | - | Sintec | Tubeaxial | - | 22.1dB(A) | 700 mW | 5400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.038 lb (17.24 g) |
|
405FHFAN AXIAL 40X10MM 5VDC WIRE ebm-papst Inc. |
317 |
|
Datasheet |
400F | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 900 mW | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.038 lb (17.24 g) |
|

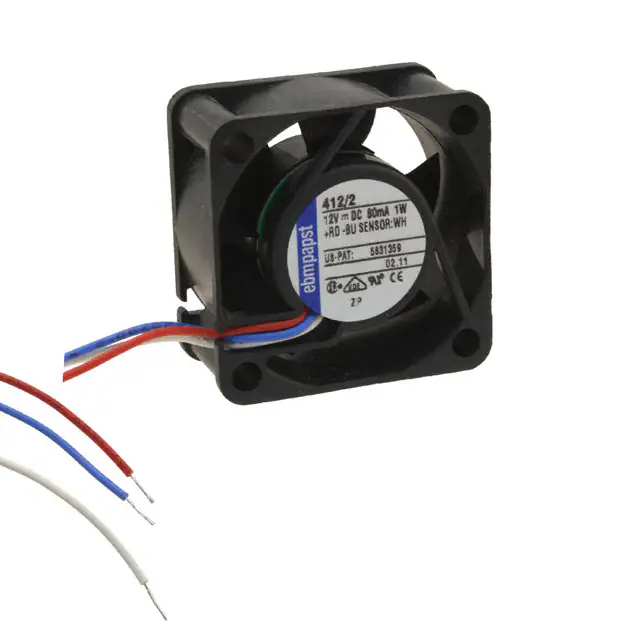

412/2FAN AXIAL 40X20MM 12VDC WIRE ebm-papst Inc. |
423 |
|
Datasheet |
400 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 18.0dB(A) | 900 mW | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|
612NGMEFAN AXIAL 60X25.4MM 12VDC WIRE ebm-papst Inc. |
1,188 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
614NGLFAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
475 |
|
Datasheet |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 12.4 CFM (0.347m³/min) | - | Sintec | Tubeaxial | - | 16.0dB(A) | 1 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
612F/2FAN AXIAL 60X15MM 12VDC WIRE ebm-papst Inc. |
135 |
|
Datasheet |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 19.0dB(A) | 1 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
8412NGMEFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
129 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
