DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
412F/2HFAN AXIAL 40X10MM 12VDC WIRE |
2,281 |
|
Datasheet |
400F | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 800 mW | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.038 lb (17.24 g) |
|
CFM-8025BG-190-572-20FAN AXIAL 80X25.4MM 12VDC WIRE |
250 |
|
Datasheet |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 93.0 CFM (2.60m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 57.3dB(A) | 18.24 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0605M702FAN AXIAL 60X15MM BALL 5VDC WIRE |
1,391 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 750 mW | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
CFM-A225B-230-438FAN AXIAL 120X25.4MM 24VDC WIRE |
320 |
|
Datasheet |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 104.6 CFM (2.93m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 46.6dB(A) | 7.2 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB04512HHA-AR00FAN BLOWER 45X10MM 12VDC WIRE |
5,639 |
|
Datasheet |
BFB | Bulk | Not For New Designs | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.555 in H2O (138.2 Pa) | Ball | Blower | Locked Rotor Sensor | 35.5dB(A) | 960 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.029 lb (13.15 g) |
|
OD4028-12HBFAN AXIAL 40X28MM 12VDC WIRE |
655 |
|
Datasheet |
OD4028 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.0 CFM (0.336m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 37.0dB | - | 8800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

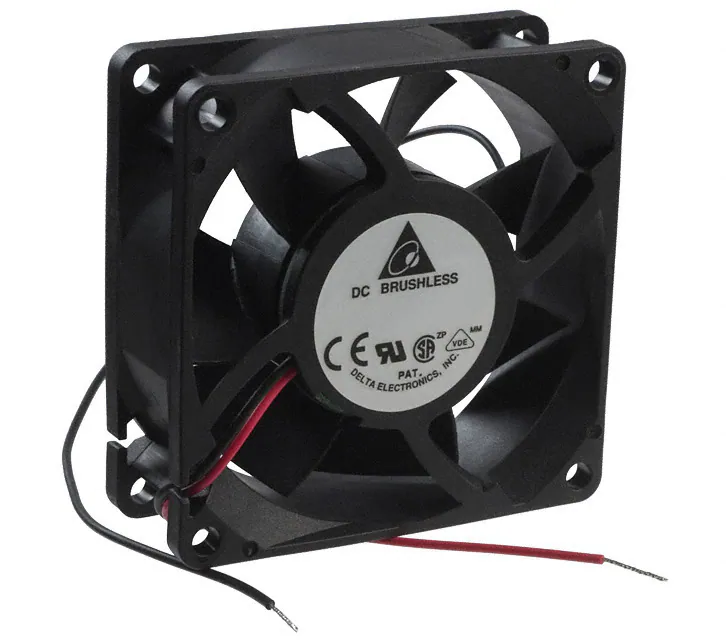

AFB0712SH-ABFAN AXIAL 70X25.4MM 12VDC WIRE |
1,546 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 61.1 CFM (1.71m³/min) | 0.625 in H2O (155.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.5dB(A) | 7.8 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.231 lb (104.78 g) |
|
|
AUB0912HJ-00AXIAL 92X25 12V PWM |
458 |
|
Datasheet |
AUB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 69.0 CFM (1.93m³/min) | 0.407 in H2O (101.4 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 4.2 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 185°F (-10 ~ 85°C) | CE, cURus, TUV | - |
|
9G1224G4D011FAN AXIAL 119X25MM 24VDC WIRE |
1,065 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 11.28 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
AFB0512LB-AFAN AXIAL 50X15MM 12VDC WIRE |
335 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.7 CFM (0.328m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.08 W | 4300 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.045 lb (20.41 g) |
|
AFB0812HBFAN AXIAL 80X15MM 12VDC WIRE |
336 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 1.68 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
DC0351012W2B-2T0FAN AXIAL 35X10MM 12VDC WIRE |
239 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 840 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
EFB0612MA-F00FAN AXIAL 60X10MM 12VDC WIRE |
115 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 15.5 CFM (0.434m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
AFB0524MBFAN AXIAL 50X15MM 24VDC WIRE |
933 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
9A0912H401FAN AXIAL 92X25MM 12VDC WIRE |
199 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

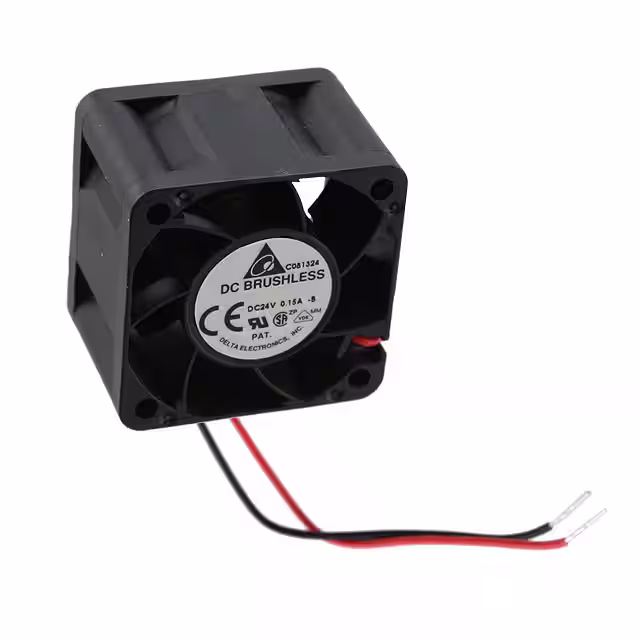

FFB0424VHN-BFAN AXIAL 40X28MM 24VDC WIRE |
9,182 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 2.4 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
BFB0512HHA-CZMQFAN BLOWER 50X10.3MM 12VDC |
5,413 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 4.0 CFM (0.112m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Blower | Locked Rotor Protection | 37.5dB(A) | 1.92 W | 5900 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.05 lb (22.68 g) |
|
CFM-4028BG-1200-568FAN AXIAL 40X28MM 12VDC WIRE |
142 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.4 CFM (0.683m³/min) | 2.440 in H2O (607.8 Pa) | Ball | Tubeaxial | Auto Restart | 56.9dB(A) | 11.28 W | 20000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
EFB0424HDFAN AXIAL 40X20MM 24VDC WIRE |
2,163 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 1.44 W | 7600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
MS2507E05D-RSRFAN AXIAL 25X7.4MM SLEEVE 5VDC |
205 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 7.40mm | 2.8 CFM (0.078m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | - | 17000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
