DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

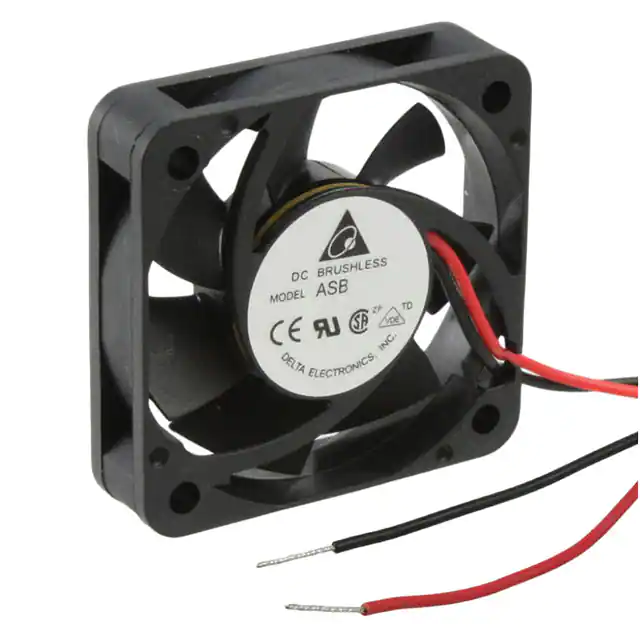

ASB0412LA-AFAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
3,004 |
|
Datasheet |
ASB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 15.0dB(A) | 360 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
AUB0912VH-CITFAN AXIAL 92X25.4MM 12VDC Delta Electronics |
3,584 |
|
Datasheet |
AUB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 72.0 CFM (2.02m³/min) | 0.287 in H2O (71.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.231 lb (104.78 g) |
|
ASB03512MA-AF00FAN AXIAL 35X10MM 12VDC WIRE Delta Electronics |
802 |
|
Datasheet |
ASB | Box | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.5 CFM (0.126m³/min) | 0.079 in H2O (19.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.5dB(A) | 600 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.022 lb (9.98 g) |
|
AUB0912L-CFAN AXIAL 92X25.4MM 12VDC Delta Electronics |
690 |
|
Datasheet |
AUB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 39.4 CFM (1.10m³/min) | 0.094 in H2O (23.4 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 2000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|
ASB0405HHA-AF00FAN AXIAL 40X10MM 5VDC WIRE Delta Electronics |
443 |
|
Datasheet |
ASB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.5dB(A) | 650 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
DSB0624VH-AFAN AXIAL 60X25.4MM 24VDC WIRE Delta Electronics |
157 |
|
- |
DSB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.7 CFM (0.776m³/min) | 0.294 in H2O (73.2 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 5.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|

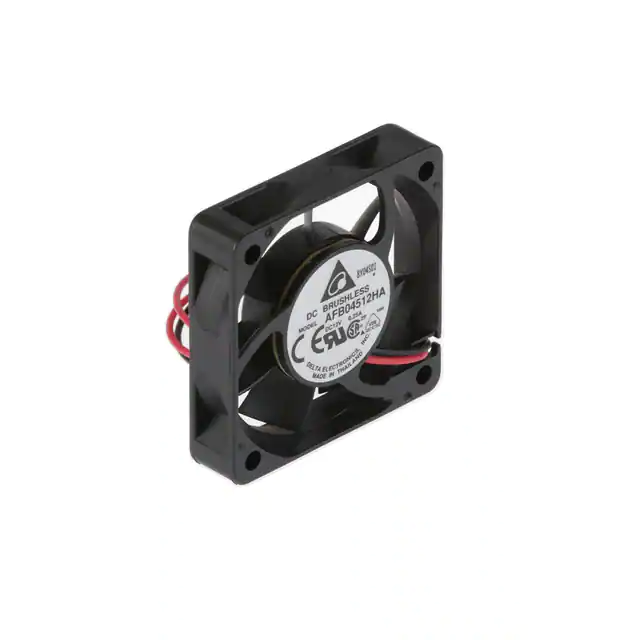

AFB04512HAFAN AXIAL 45X10MM 12VDC WIRE Delta Electronics |
257 |
|
- |
AFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.8 CFM (0.330m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.5dB(A) | 2.04 W | 6000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.035 lb (15.88 g) |
|

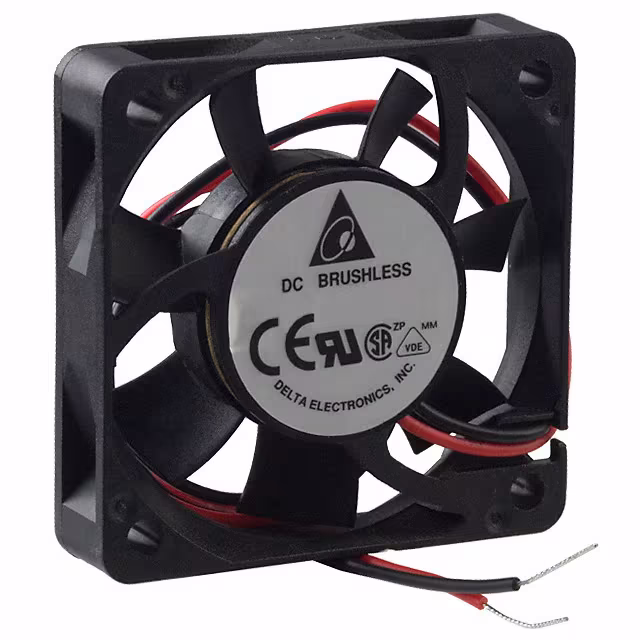

AFB04512MAFAN AXIAL 45X10MM 12VDC WIRE Delta Electronics |
147 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.32 W | 5000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.035 lb (15.88 g) |
|
AFB03505LA-AFAN AXIAL 35X10MM BALL 5VDC WIRE Delta Electronics |
552 |
|
Datasheet |
AFB | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.4 CFM (0.095m³/min) | 0.048 in H2O (11.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 15.0dB(A) | 300 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
BFB0305MA-AFAN BLOWER 30X10MM 5VDC WIRE Delta Electronics |
1,611 |
|
Datasheet |
BFB | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Blower | Locked Rotor Protection | 26.0dB(A) | 400 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
