DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1224HE-F00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,272 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 5.76 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224HE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
901 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 5.76 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224SHE-F00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
393 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 12 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
FFB1224EHE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
408 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.0dB(A) | 24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
AFB0624EH-SP50FAN AXIAL 60X25.4MM 24VDC WIRE Delta Electronics |
726 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 5.76 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB1212VH-T500FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
558 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.8 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
AFB1212VHE-T50FFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
150 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

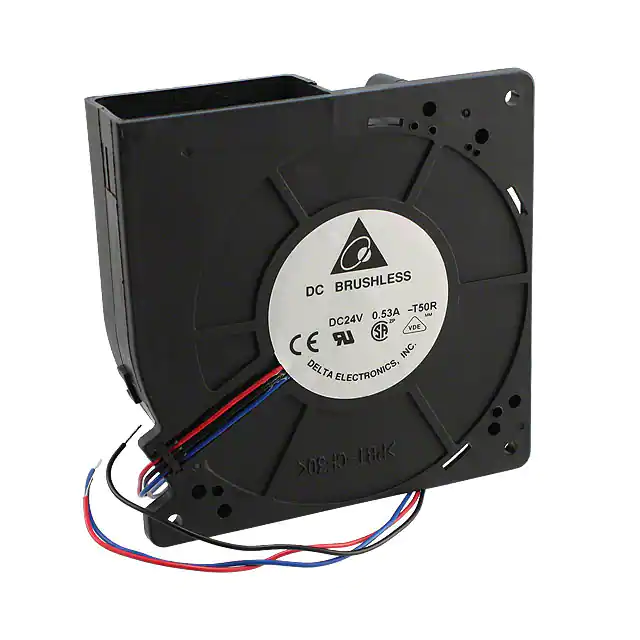

BFB1224H-T50RFAN BLOWER 120X32MM 24VDC WIRE Delta Electronics |
428 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 29.0 CFM (0.812m³/min) | 0.827 in H2O (206.0 Pa) | Ball | Blower | Locked Rotor Sensor | 51.0dB(A) | 8.4 W | 2500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|

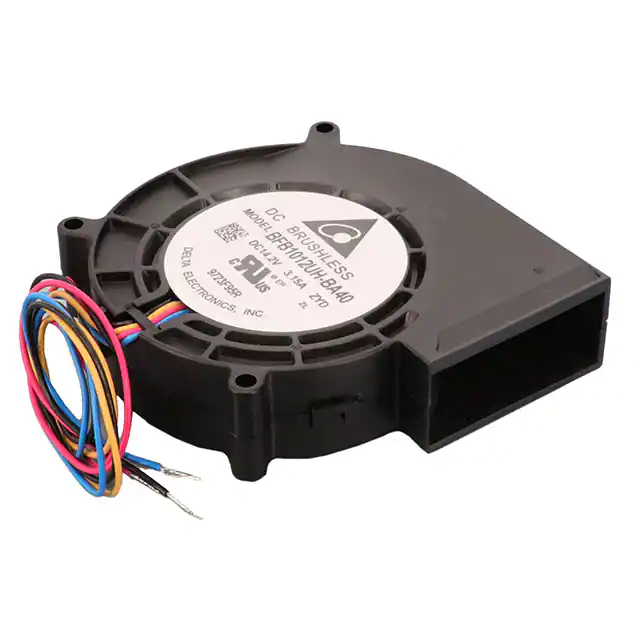

BFB1012UH-BA40ZYDFAN BLOWER 96.6X24.9MM 14.2VDC Delta Electronics |
112 |
|
Datasheet |
BFB - High-Performance | Box | Active | 14.2VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 24.90mm | 37.0 CFM (1.04m³/min) | 4.764 in H2O (1186.7 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 30.53 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
PFB1224EHEWCAFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
230 |
|
Datasheet |
PFB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 181.3 CFM (5.08m³/min) | 0.751 in H2O (187.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 21.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
