DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001159AFAN AXIAL 12VDC MSD12K3E2X-E3 Comair Rotron |
116 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.10mm | 120.0 CFM (3.36m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.8dB(A) | 11 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

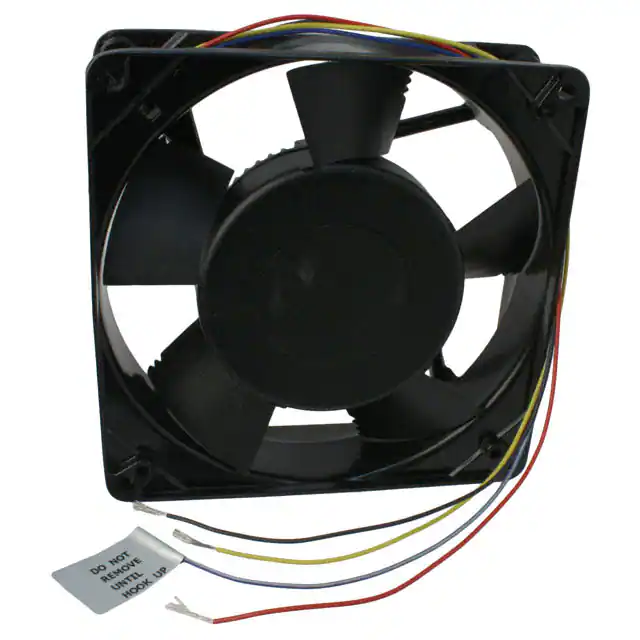

19031239AFAN AXIAL 127X38.1MM 48V GL48R7 Comair Rotron |
190 |
|
Datasheet |
Galaxy | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.6dB(A) | 15 W | 3250 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|

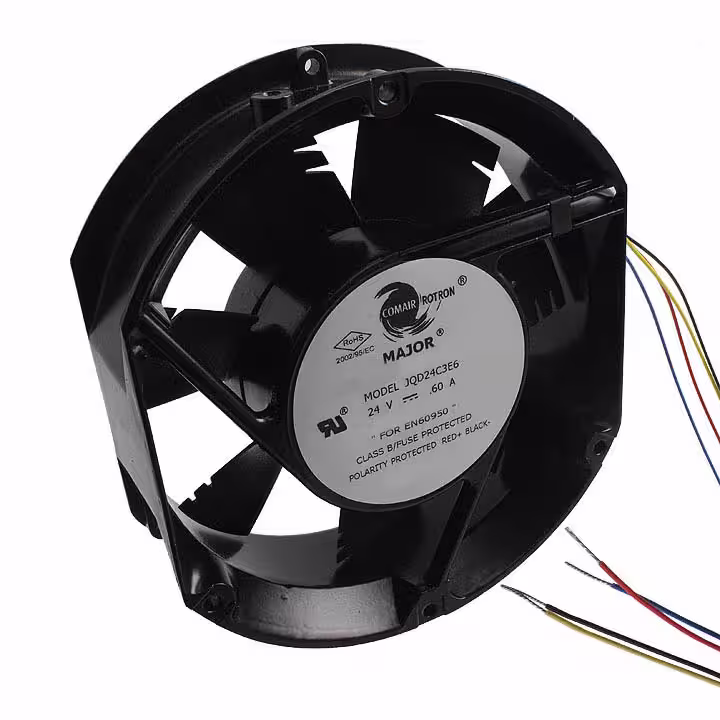

16005460AFAN AXIAL 171.4X50.8MM JQD24C3E6 Comair Rotron |
1,382 |
|
Datasheet |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 200.0 CFM (5.60m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.8dB(A) | 14.4 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|

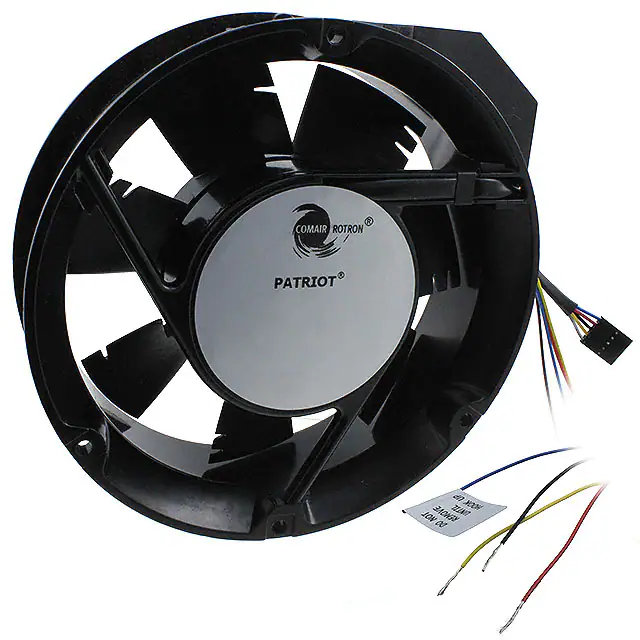

19039696AFAN AXIAL 171.4X50.8MM PQD48Z3A2 Comair Rotron |
209 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 171.4mm Dia | 50.80mm | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 35 W | 4450 RPM | 5 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | CE, cUL, UL | - |
|
17001180AFAN AXIAL 48VDC GLD48U3E2X-E3 Comair Rotron |
1,785 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 240.0 CFM (6.72m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 5200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001198AFAN AXIAL 48VDC PQD48U3E2X-E3 Comair Rotron |
3,199 |
|
Datasheet |
Patriot | Bulk | Active | 48VDC | Round - 171.4mm Dia | 50.80mm | 332.0 CFM (9.30m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
19031263AFAN AXIAL 172X50.8MM 24V PQ24B7 Comair Rotron |
140 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.2dB(A) | 24 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
|
|
17001191AFAN AXIAL 24VDC PQD24B3E2X-E3 Comair Rotron |
4,905 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 24 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

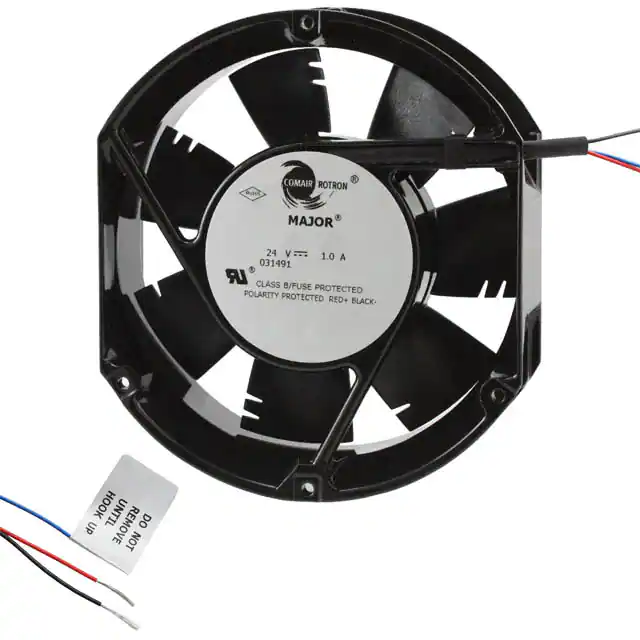

19031491AFAN AXIAL 171.5X50.8MM JQ24B7 Comair Rotron |
185 |
|
Datasheet |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 54.3dB(A) | 20.3 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
|
19031092AFAN AXIAL 171.5X50.8MM JQ12C4 Comair Rotron |
402 |
|
Datasheet |
Major | Box | Active | 12VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 200.0 CFM (5.60m³/min) | 0.615 in H2O (153.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.0dB(A) | 18 W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
