DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF80252V2-1000U-F9924VDC FAN 80X25MM TACH Sunon Fans |
4,749 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.0dB(A) | 1.2 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80252V3-1000U-F9924VDC FAN 80X25MM TACH Sunon Fans |
3,087 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 0.96 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80252V1-1000U-F9924VDC FAN 80X25MM TACH Sunon Fans |
4,189 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.56 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
HAC0251S4-1000U-C9912VDC FAN 120X25MM TACH Sunon Fans |
2,683 |
|
Datasheet |
HA | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.070 in H2O (17.4 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 28.8dB(A) | 1.06 W | 1600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30060V1-1000U-H995VDC FAN 30X6MM PWM Sunon Fans |
4,472 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 23.6dB(A) | 0.56 W | 9100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30060V2-1000U-H995VDC FAN 30X6MM PWM Sunon Fans |
3,976 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 15.7dB(A) | 0.36 W | 7100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

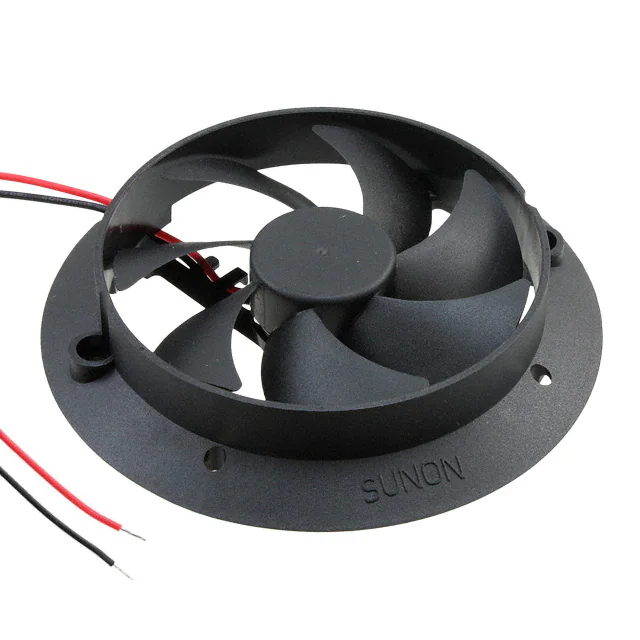

HA60150V3-E02U-A99FAN AXIAL 84.9X15.4MM 5VDC WIRE Sunon Fans |
2,542 |
|
Datasheet |
MagLev® HA | Tray | Obsolete | 5VDC | Round - 84.9mm Dia | 15.40mm | 13.2 CFM (0.370m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.1dB(A) | 400 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.06 lb (27.22 g) |
|

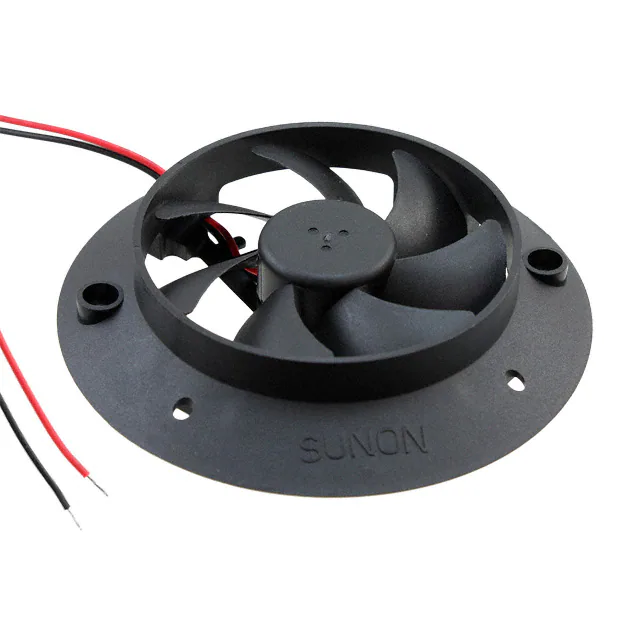

HA60150V3-E03U-A99FAN AXIAL 84.9X15.4MM 5VDC WIRE Sunon Fans |
4,554 |
|
Datasheet |
MagLev® HA | Tray | Obsolete | 5VDC | Round - 84.9mm Dia | 15.40mm | 9.7 CFM (0.272m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.8dB(A) | 260 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
HA60151V3-E00U-A99FAN AXIAL 84.9X15.4MM 12VDC Sunon Fans |
2,146 |
|
Datasheet |
MagLev® HA | Tray | Obsolete | 12VDC | Round - 84.9mm Dia | 15.40mm | 9.7 CFM (0.272m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.8dB(A) | 280 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
|
MB50152V1-000U-A99FAN AXIAL 50X15MM 24VDC WIRE Sunon Fans |
4,066 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 33.0dB(A) | 1.32 W | 5800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.083 lb (37.65 g) |
