DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF70151V3-1000U-Q9912VDC FAN 70X15MM ALARM/PWM Sunon Fans |
4,721 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.1 CFM (0.535m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.7dB(A) | 0.36 W | 2500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF70151V2-1000U-Q9912VDC FAN 70X15MM ALARM/PWM Sunon Fans |
1,412 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 25.6dB(A) | 0.62 W | 3000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80252V1-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
4,217 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.56 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80252V3-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
3,484 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.96 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80252V2-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
3,768 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.2 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

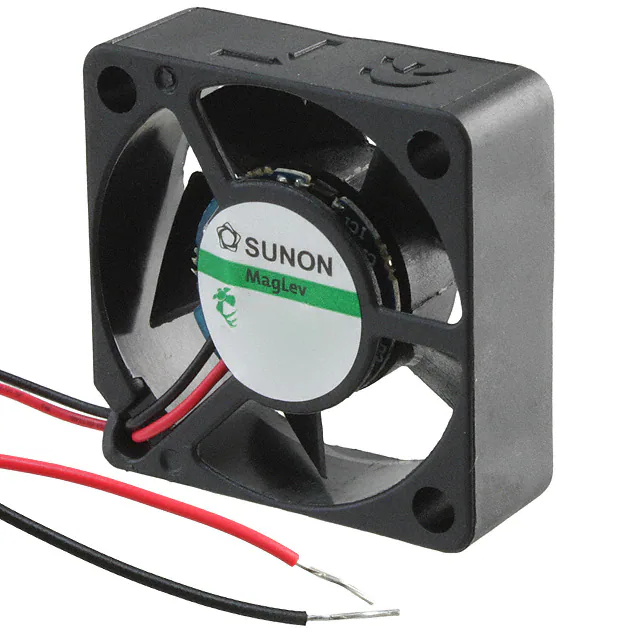

HA30101V3-000U-A99FAN AXIAL 30X10MM 12VDC WIRE Sunon Fans |
3,390 |
|
Datasheet |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 17.6dB(A) | 440 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
|
MB40202VX-000U-G99FAN AXIAL 40X20MM 24VDC WIRE Sunon Fans |
4,062 |
|
- |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 1.54 W | 8200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
|
ME80202V1-000U-A99FAN AXIAL 80X20MM 24VDC WIRE Sunon Fans |
3,493 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 38.0dB(A) | 1.54 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.146 lb (66.22 g) |
|
|
KDE2405PHV1.MS.A.GN.C1500FAN AXIAL 50X15MM 24VDC Sunon Fans |
4,639 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE2405PHV2.MS.A.GN.C1500FAN AXIAL 50X15MM 24VDC Sunon Fans |
3,714 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
