DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF38281BX-1000U-S9HFAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
238 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 6.84 W | 20000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

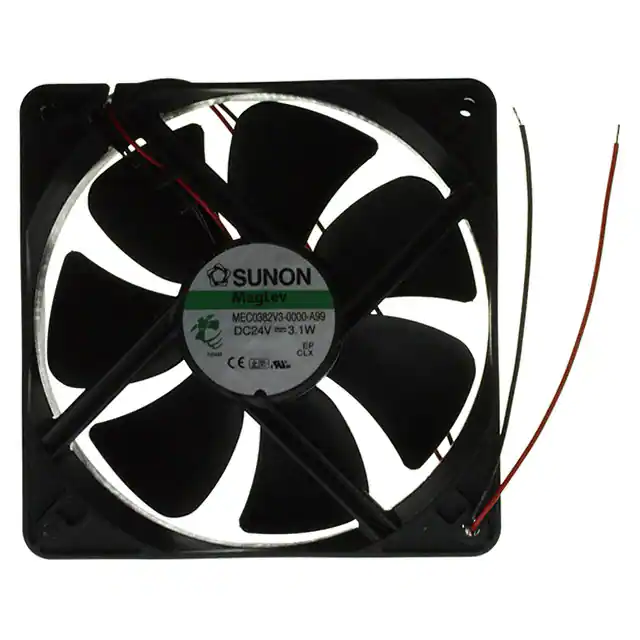

MEC0382V3-000U-A99FAN AXIAL 120X38MM 24VDC WIRE Sunon Fans |
381 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 37.0dB(A) | 3.1 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.481 lb (218.18 g) |
|
PMD1208PMB2-A(2).GNFAN AXIAL 80X38MM 12VDC WIRE Sunon Fans |
157 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 74.5 CFM (2.09m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | - | 51.6dB(A) | 6.4 W | 4900 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.386 lb (175.09 g) |
|
UF3A3-500TCFAN AXIAL 10X3MM VAPO 3VDC WIRE Sunon Fans |
1,074 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 290 mW | 17000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UF3A3-500BFAN AXIAL 10X3MM VAPO 3VDC WIRE Sunon Fans |
2,688 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 290 mW | 17000 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
|
EF50151BX-1B00U-A99Thermal Products Sunon Fans |
3,311 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Rectangular/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Blower | Auto Restart | 45.8dB(A) | 1.8 W | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
EEC0382B1-000U-F99FAN AXIAL 120X38MM 24VDC WIRE Sunon Fans |
282 |
|
Datasheet |
EEC | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 48.0dB(A) | 9.2 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|

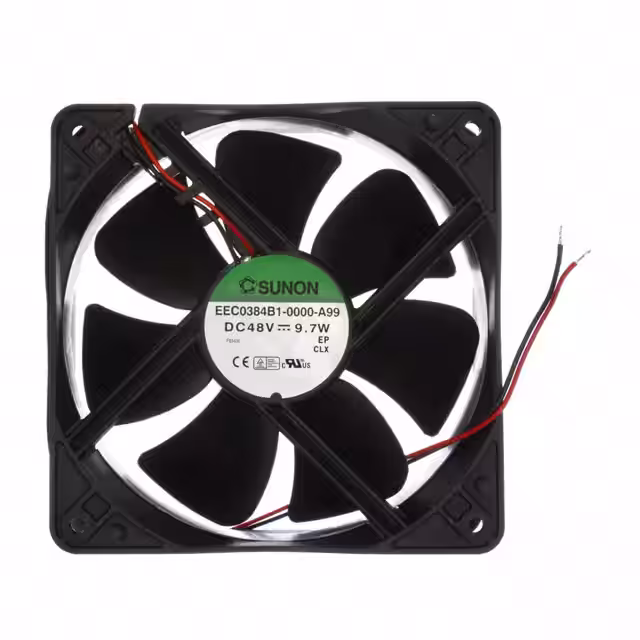

EEC0384B1-000U-A99FAN AXIAL 120X38MM 48VDC WIRE Sunon Fans |
1,063 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 9.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|

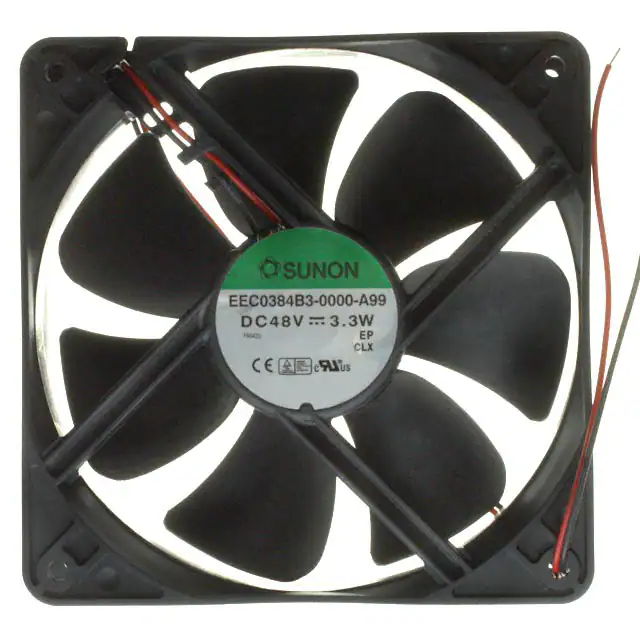

EEC0384B3-000U-A99FAN AXIAL 120X38MM 48VDC WIRE Sunon Fans |
938 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | 3.3 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|

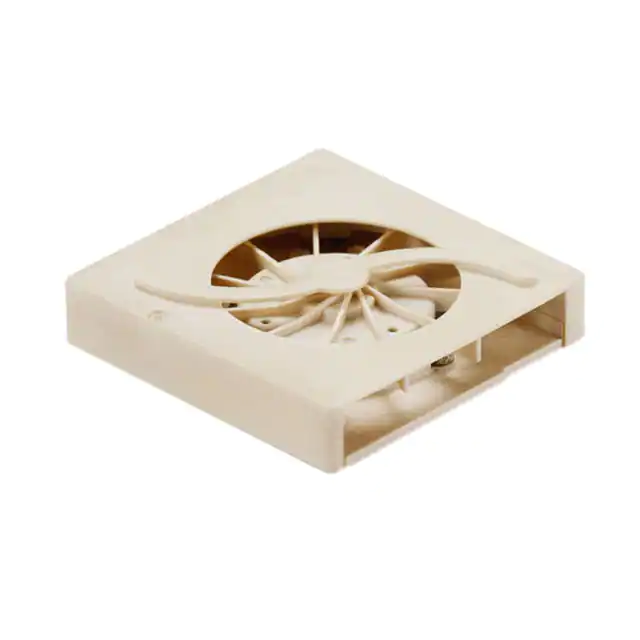

UB3H3-700BFAN BLOWER 17X3MM VAPO 3VDC WIRE Sunon Fans |
446 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.244 CFM (0.007m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 32.0dB(A) | 100 mW | 12500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
