DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEC0252B2-000U-F9924VDC FAN 120X25MM TACH Sunon Fans |
3,280 |
|
Datasheet |
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 3.5 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0252B3-000U-F9924VDC FAN 120X25MM TACH Sunon Fans |
2,372 |
|
Datasheet |
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 2 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75302B2-1B00U-F9924VDC FAN 75X30MM TACH Sunon Fans |
4,518 |
|
Datasheet |
PF | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 13.8 CFM (0.386m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 38.6dB(A) | 1.92 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75302B1-1B00U-F9924VDC FAN 75X30MM TACH Sunon Fans |
2,453 |
|
Datasheet |
PF | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 15.5 CFM (0.434m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 42.0dB(A) | 2.76 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75302B3-1B00U-F9924VDC FAN 75X30MM TACH Sunon Fans |
1,711 |
|
Datasheet |
PF | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 10.8 CFM (0.302m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 32.9dB(A) | 1.13 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMD1207PTB2-A.(2).GNFAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
2,844 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 43.0dB(A) | 3.7 W | 4700 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1207PTB3-A.(2).GNFAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
4,637 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 39.0dB(A) | 2.9 W | 4200 RPM | 2 Wire Leads | - | - | - | - |
|

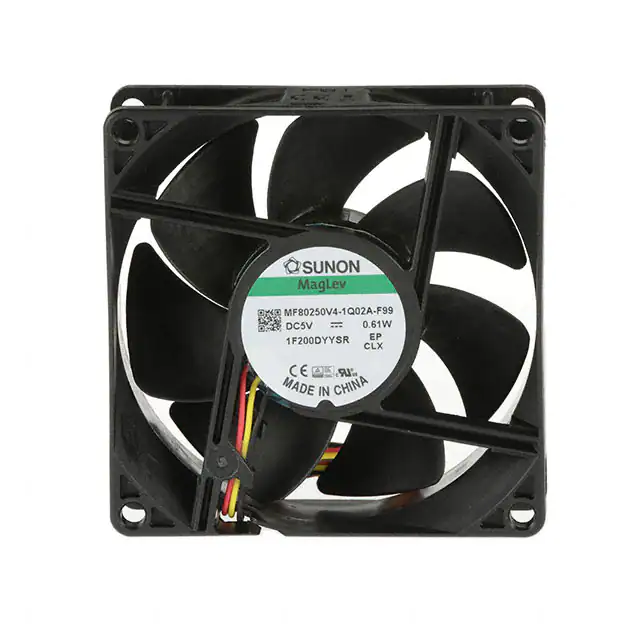

4511HQ/MF80250V4-1Q02A-F99DC FAN 80X25MM VAPO RD 3 WIRE Sunon Fans |
2,936 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMB2475PNB1-AY (2).GN.IP55FAN BLOWER 75.7X30MM 24VDC WIRE Sunon Fans |
1,138 |
|
Datasheet |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 43.5dB(A) | 4.1 W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB2475PNB3-AY (2).GN.IP55FAN BLOWER 75.7X30MM 24VDC WIRE Sunon Fans |
1,716 |
|
Datasheet |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | Auto Restart | 33.9dB(A) | 1.9 W | 2400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
