DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF38281BX-1000U-F9H12VDC FAN 38X28MM TACH Sunon Fans |
3,787 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 6.84 W | 20000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40281B1-1000U-H9HFAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
1,065 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40281B1-1000U-G9HFAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
1,070 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40281BX-1000U-H9H12VDC FAN 40X28MM PWM Sunon Fans |
1,156 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | PWM Control | 62.0dB(A) | 11.4 W | 22000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40281BX-1000U-G9H12VDC FAN 40X28MM ALARM Sunon Fans |
1,571 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.0dB(A) | 11.4 W | 22000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92252B1-1000U-G9924VDC FAN 92X25MM ALARM Sunon Fans |
2,583 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.1dB(A) | 4.92 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92252B1-1000U-H9924VDC FAN 92X25MM PWM Sunon Fans |
1,185 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 46.1dB(A) | 4.92 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

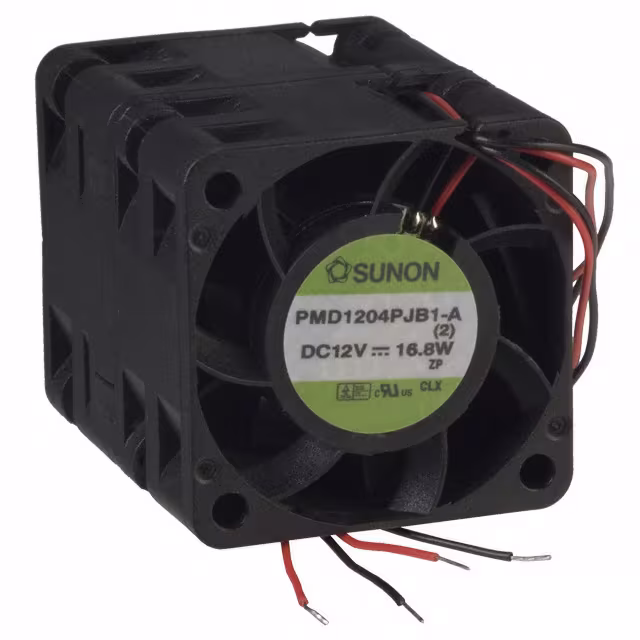

PMD1204PJB1-AFAN AXIAL DUAL 40X48MM 12VDC Sunon Fans |
2,479 |
|
- |
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 27.0 CFM (0.756m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial (Dual) | - | 61.0dB(A) | 16.8 W | 14500 Front, 9500 Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.183 lb (83.01 g) |
|

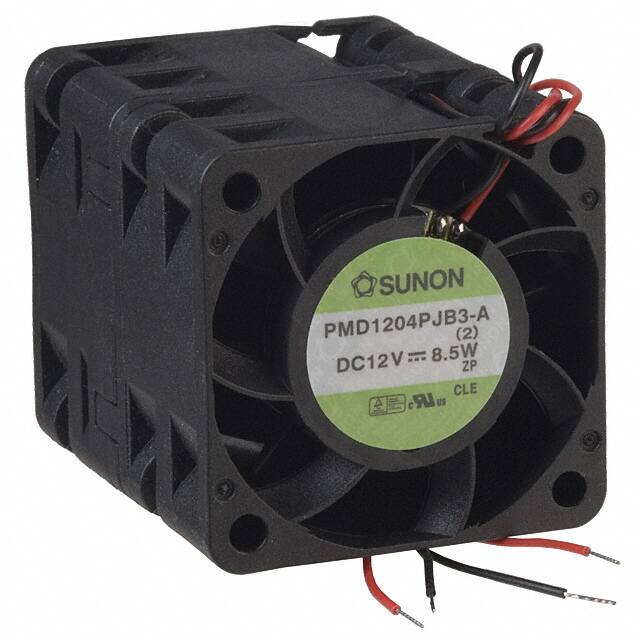

PMD1204PJB3-AFAN AXIAL DUAL 40X48MM 12VDC Sunon Fans |
1,400 |
|
- |
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 21.2 CFM (0.594m³/min) | 1.110 in H2O (276.5 Pa) | Ball | Tubeaxial (Dual) | - | 57.0dB(A) | 8.5 W | 11500 Front, 8000 Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.182 lb (82.55 g) |
|
|
PF75302B3-1B00U-A99FAN BLOWER 75.6X30MM 24VDC WIRE Sunon Fans |
4,921 |
|
Datasheet |
PF | Bulk | Active | 24VDC | Rectangular/Rounded - 75.6mm L x 75.7mm H | 30.00mm | 10.8 CFM (0.302m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Blower | Auto Restart | 32.9dB(A) | 1.13 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
