DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD1208PKB2-A.(2).GNFAN AXIAL 80X20MM 12VDC WIRE Sunon Fans |
4,926 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 49.0 CFM (1.37m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 3.7 W | 4200 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PKB3-A.(2).GNFAN AXIAL 80X20MM 12VDC WIRE Sunon Fans |
1,839 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.1 W | 3900 RPM | 2 Wire Leads | - | - | - | - |
|
PMD2406PKB1-A.(2).GNFAN AXIAL 60X20MM 24VDC WIRE Sunon Fans |
1,420 |
|
Datasheet |
PMD | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 2.9 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.121 lb (54.88 g) |
|
|
PF36281BX-000U-F9912VDC FAN 36X28MM TACH Sunon Fans |
3,678 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 22.8 CFM (0.638m³/min) | 2.550 in H2O (635.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 61.9dB(A) | 9.6 W | 23000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF36281B1-000U-F9912VDC FAN 36X28MM TACH Sunon Fans |
1,069 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.620 in H2O (403.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 55.7dB(A) | 5.4 W | 18400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

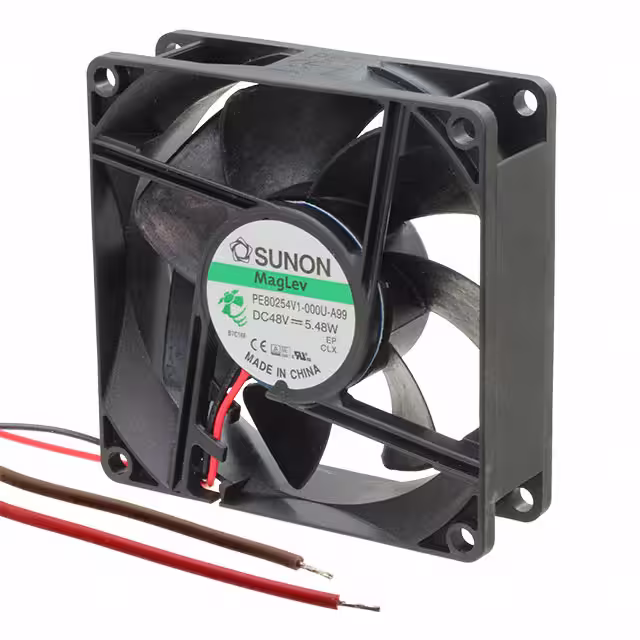

PE80254V1-000U-A99FAN AXIAL 80X25MM 48VDC WIRE Sunon Fans |
1,311 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 46.5dB(A) | 5.48 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE80254V2-000U-A99FAN AXIAL 80X25MM 48VDC WIRE Sunon Fans |
2,348 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE80254V3-000U-A99FAN AXIAL 80X25MM 48VDC WIRE Sunon Fans |
2,807 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.5dB(A) | 4.42 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE92254V1-000U-A99FAN AXIAL 92X25MM 48VDC WIRE Sunon Fans |
1,994 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 46.0dB(A) | 6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
PE92254V2-000U-A99FAN AXIAL 92X25MM 48VDC WIRE Sunon Fans |
4,548 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.0dB(A) | 5.19 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
