DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF60252BX-1000U-Q9924VDC FAN 60X25MM ALARM/PWM Sunon Fans |
1,671 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 46.0dB(A) | 3.22 W | 8300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B3-1000U-Q9924VDC FAN 60X25MM ALARM/PWM Sunon Fans |
2,952 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 37.5dB(A) | 1.56 W | 6200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B2-1000U-Q9912VDC FAN 60X25MM ALARM/PWM Sunon Fans |
4,747 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 40.7dB(A) | 1.98 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B1-1000U-Q9912VDC FAN 60X25MM ALARM/PWM Sunon Fans |
1,881 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 35.9 CFM (1.01m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 41.7dB(A) | 2.34 W | 7500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B2-1000U-Q9924VDC FAN 60X25MM ALARM/PWM Sunon Fans |
2,165 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 40.7dB(A) | 2.14 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B3-1000U-Q9912VDC FAN 60X25MM ALARM/PWM Sunon Fans |
4,182 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 37.5dB(A) | 1.42 W | 6200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.GN.JPG)
|

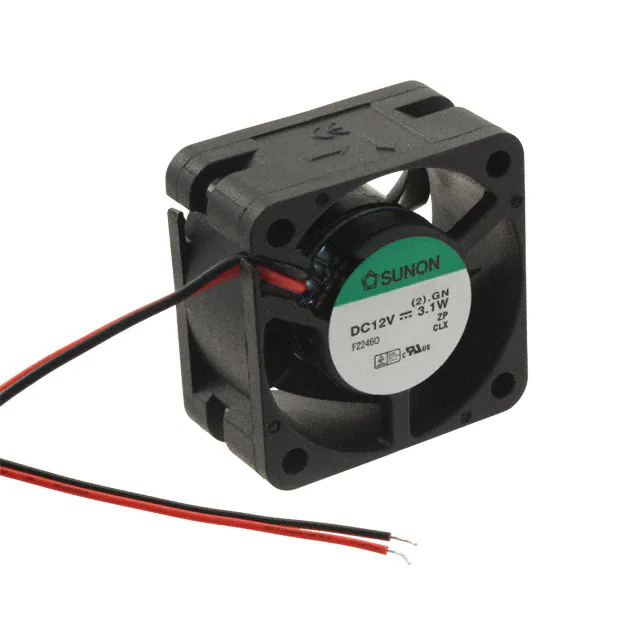

PMD1238PKB1-A.(2).GNFAN AXIAL 38X20MM 12VDC WIRE Sunon Fans |
2,351 |
|
Datasheet |
PMD | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 12.0 CFM (0.336m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.1 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.061 lb (27.67 g) |
|
|
PMD1238PKBX-A.(2).GNFAN AXIAL 38X20MM 12VDC WIRE Sunon Fans |
3,601 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 13.5 CFM (0.378m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 4.3 W | 15000 RPM | 2 Wire Leads | - | - | - | - |
|
PF92251V1-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
3,882 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.5dB(A) | 4.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
|
PF92251V2-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
2,373 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.7dB(A) | 3.36 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
