DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B0503AFB2-8 MSFAN BLOWER 30X10MM 5VDC WIRE Sunon Fans |
3,995 |
|
- |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Blower | - | 30.0dB(A) | 650 mW | 8000 RPM | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|

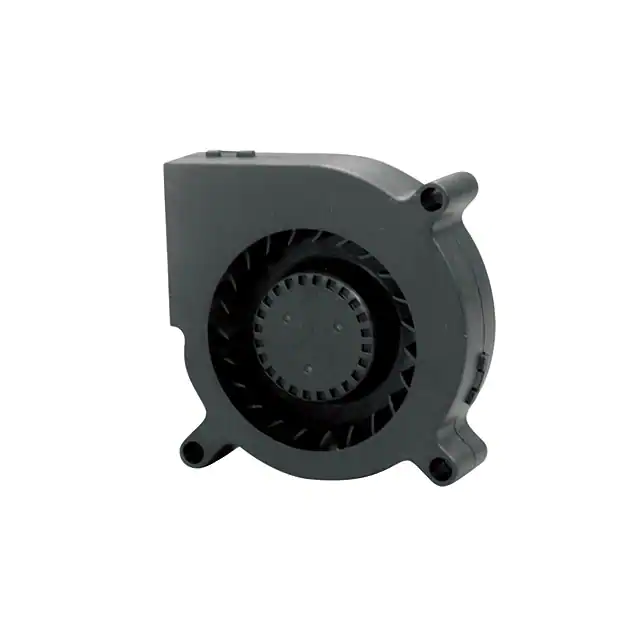

MF60151V1-B00U-A99FAN BLOWER 60X15MM 12VDC WIRE Sunon Fans |
3,842 |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.440 in H2O (109.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 40.2dB(A) | 1.08 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.081 lb (36.74 g) |
|
GB0535ACB1-8.B2208.GNFAN BLOWER 34.8X6MM 5VDC WIRE Sunon Fans |
4,433 |
|
- |
GB | Bulk | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 6.00mm | 0.880 CFM (0.025m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Blower | - | 31.0dB(A) | 700 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.022 lb (9.98 g) |
.jpg)
|
B0503AFB1-8 MSFAN BLOWER 30X10MM 5VDC WIRE Sunon Fans |
1,390 |
|
- |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Blower | - | 36.0dB(A) | 950 mW | 10000 RPM | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|
|
EF80252B1-1000U-G99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
3,087 |
|
Datasheet |
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.56 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EF80252B3-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
2,554 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.89 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80252B2-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
2,510 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.16 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B3-1000U-Q9912VDC FAN 40X20MM ALARM/PWM Sunon Fans |
3,780 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.4 CFM (0.179m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 16.2dB(A) | 0.42 W | 5200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B1-1000U-Q9912VDC FAN 40X20MM ALARM/PWM Sunon Fans |
2,843 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 24.5dB(A) | 0.66 W | 7200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B2-1000U-Q9912VDC FAN 40X20MM ALARM/PWM Sunon Fans |
1,876 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 21.3dB(A) | 0.48 W | 6200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
