DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0812S4D01FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
1,962 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

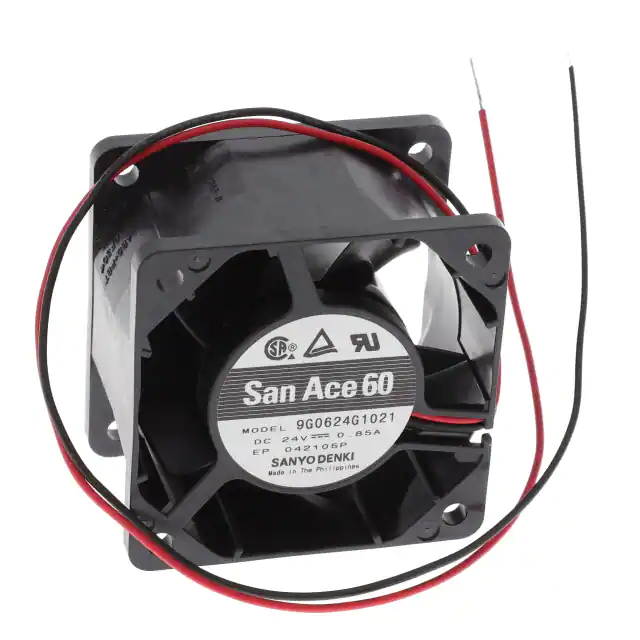

9G0624G1021FAN AXIAL 60X38MM 24VDC WIRE Sanyo Denki America Inc. |
2,207 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 20.4 W | 11800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0812F4021FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
3,587 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.32 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824S4021FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
3,517 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0824S4D011FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
3,338 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

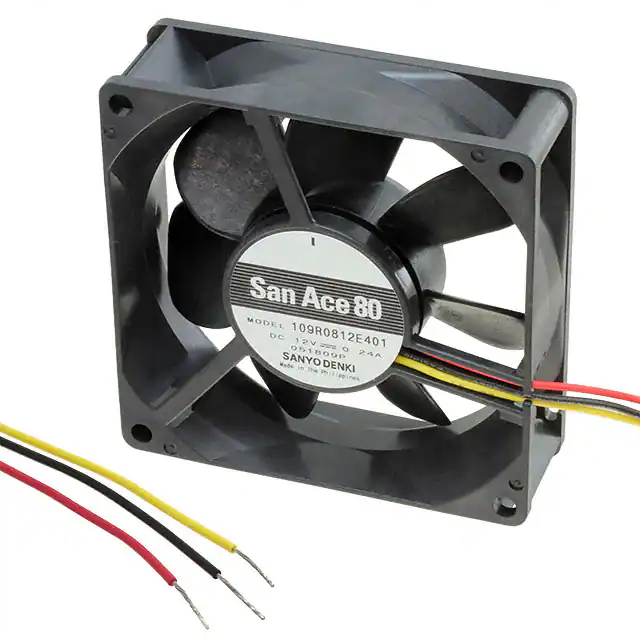

109R0812E401FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
1,267 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 46.3 CFM (1.30m³/min) | 0.232 in H2O (57.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0605H401FAN AXIAL 60X25MM BALL 5VDC WIRE Sanyo Denki America Inc. |
1,821 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.7 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9A0824G402FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
3,252 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 5.04 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9GA0612M702FAN AXIAL 60X15MM 12VDC WIRE Sanyo Denki America Inc. |
4,929 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 3900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
109R0612J402FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
1,880 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.64 W | 7600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
