DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

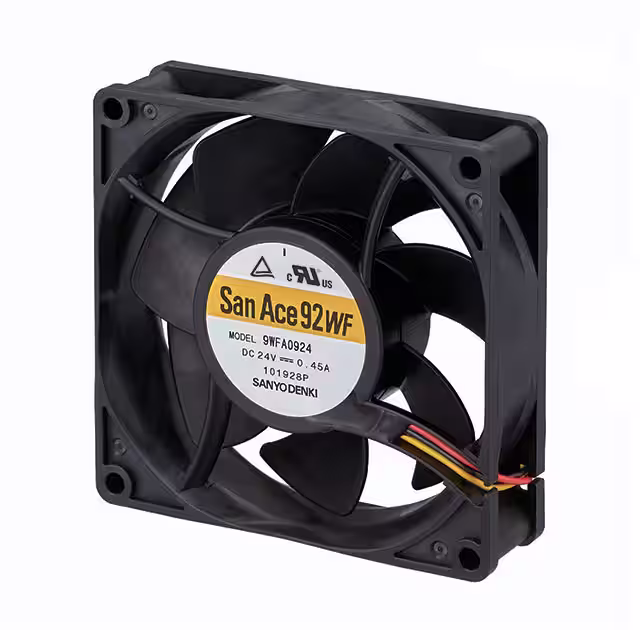

9WFA0924P4G001FAN AXIAL 92X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
2,720 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 100.6 CFM (2.82m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 7350 RPM | 4 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.375 lb (170.1 g) |
|
|
9WFA0924P4H001FAN AXIAL 92X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
4,388 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 83.0 CFM (2.32m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 6100 RPM | 4 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.375 lb (170.1 g) |
|
9GT0824S4002FAN AXIAL 80X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
1,685 |
|
Datasheet |
San Ace 80T | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 5.28 W | 6700 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GT0812S4D001FAN AXIAL 80X25.2MM 12VDC WIRE Sanyo Denki America Inc. |
4,472 |
|
Datasheet |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 5.52 W | 6700 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GT0812S4001FAN AXIAL 80X25.2MM 12VDC WIRE Sanyo Denki America Inc. |
3,526 |
|
Datasheet |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 5.52 W | 6700 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GT0824S4001FAN AXIAL 80X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
3,217 |
|
Datasheet |
San Ace 80T | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 5.28 W | 6700 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GT0624G4002FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
1,657 |
|
Datasheet |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 6.72 W | 10000 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

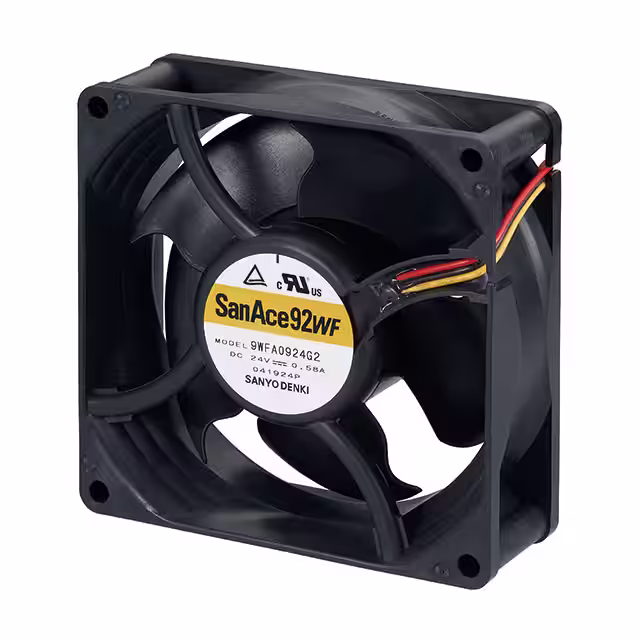

9WFA0924G2002FAN AXIAL 92X32MM 24VDC WIRE Sanyo Denki America Inc. |
3,862 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 109.5 CFM (3.07m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 13.9 W | 9600 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.452 lb (205.02 g) |
|
|
9WFA0924G2D001FAN AXIAL 92X32MM 24VDC WIRE Sanyo Denki America Inc. |
2,113 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 109.5 CFM (3.07m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 63.0dB(A) | 13.9 W | 9600 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.452 lb (205.02 g) |
|
|
9GT0612G4D001FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
1,546 |
|
Datasheet |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 6.72 W | 10000 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
