DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WF0424H7D01FAN AXIAL 40X15MM 24VDC WIRE Sanyo Denki America Inc. |
322 |
|
Datasheet |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.9 CFM (0.193m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 2.04 W | 11300 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
|
9WF0424H701FAN AXIAL 40X15MM 24VDC WIRE Sanyo Denki America Inc. |
225 |
|
Datasheet |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.9 CFM (0.193m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 2.04 W | 11300 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
9BMB12G201FAN BLOWER 97.1X33MM 12VDC WIRE Sanyo Denki America Inc. |
789 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 21.6 W | 5750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
9WF0624H701FAN AXIAL 60X15MM 24VDC WIRE Sanyo Denki America Inc. |
146 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 2.88 W | 6800 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.137 lb (62.14 g) |
|
|
9WP0624H401FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
501 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WP0612H401FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
492 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

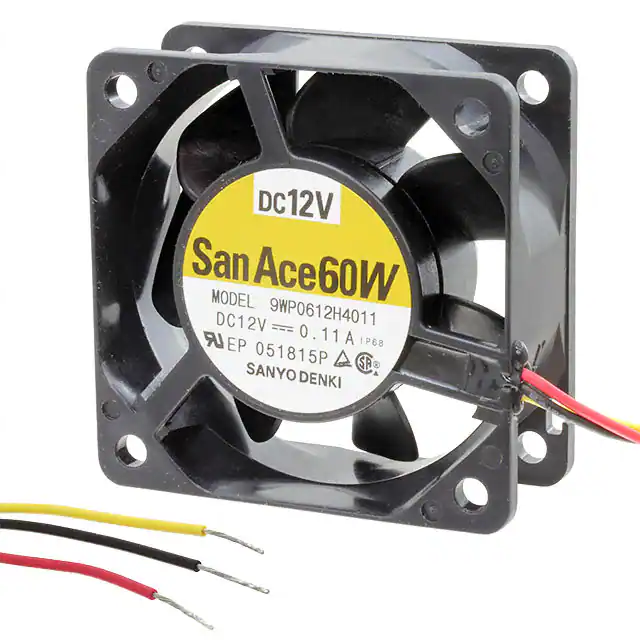

9WP0612H4011FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
241 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
9BMB12P2H01FAN BLOWER 97.1X33MM 12VDC WIRE Sanyo Denki America Inc. |
359 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|

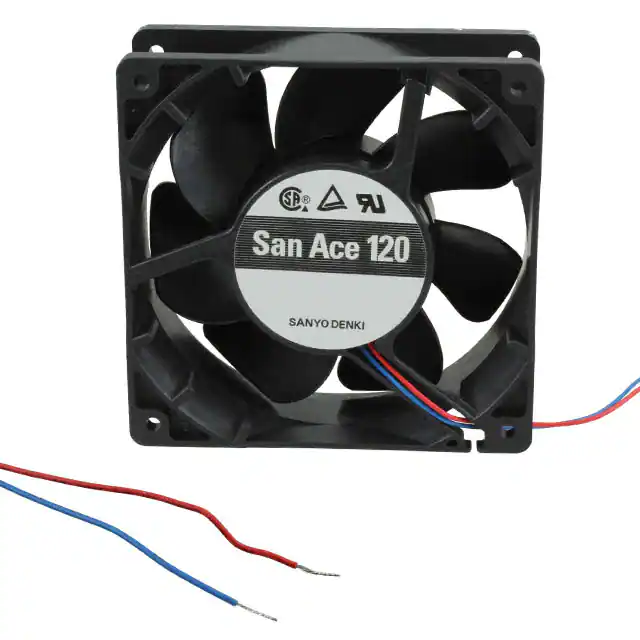

9G1224H1021FAN AXIAL 119X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,461 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1212E101FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,193 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
