DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WF0924H2011FAN AXIAL 92X32MM 24VDC WIRE Sanyo Denki America Inc. |
4,428 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 8.4 W | 6500 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|
|
9WF0924S2011FAN AXIAL 92X32MM 24VDC WIRE Sanyo Denki America Inc. |
2,618 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 98.9 CFM (2.78m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 12 W | 7300 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|

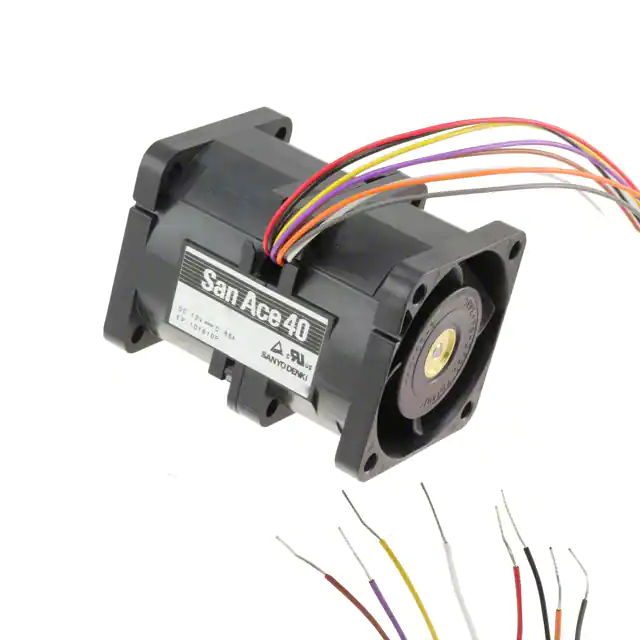

9CRB0412P5K001FAN AXIAL DUAL 40X56MM 12VDC Sanyo Denki America Inc. |
1,933 |
|
Datasheet |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.8 CFM (0.750m³/min) | 2.930 in H2O (729.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 10.56 W | 19000 Front, 17000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.222 lb (100.7 g) |
|
|
9CR0612G502FAN AXIAL DUAL 60X51MM 12VDC Sanyo Denki America Inc. |
2,602 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 24.7 CFM (0.692m³/min) | 1.810 in H2O (450.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 57.5dB(A) | 13.2 W | 15800 Front, 10600 Rear | 2 Wire Leads per Fan | - | - | - | 0.397 lb (180.08 g) |
|
|
9CR0612H501FAN AXIAL DUAL 60X51MM 12VDC Sanyo Denki America Inc. |
2,852 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | CSA, TUV, UL | - |
|
|
9CR0612G501FAN AXIAL DUAL 60X51MM 12VDC Sanyo Denki America Inc. |
3,649 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 71.7 CFM (2.01m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 68.0dB(A) | 32.4 W | 11500 Front, 9000 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9HV0812G1002FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,846 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 40.8 W | 14900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9HV0812G10021FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
4,486 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 40.8 W | 14900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9RA1212K1001120X38MM 12VDC TACH Sanyo Denki America Inc. |
1,008 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 160.8 CFM (4.50m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 4700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1212K10011120X38MM 12VDC TACH Sanyo Denki America Inc. |
4,363 |
|
- |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 160.8 CFM (4.50m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 4700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
