DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0812G40011FAN AXIAL 80X25.2MM 12VDC WIRE Sanyo Denki America Inc. |
1,490 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.76 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0812G4D00180X25MM 12V,LOW POWER DC LCKRTRS Sanyo Denki America Inc. |
1,436 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9S1212P4L011FAN AXIAL 120X25MM 12VDC WIRE Sanyo Denki America Inc. |
4,835 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 960 mW | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
9G0948G102FAN AXIAL 92X38MM 48VDC WIRE Sanyo Denki America Inc. |
1,204 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 12.96 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9G0948G1021FAN AXIAL 92X38MM 48VDC WIRE Sanyo Denki America Inc. |
2,500 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 12.96 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9G0948H102FAN AXIAL 92X38MM 48VDC WIRE Sanyo Denki America Inc. |
3,886 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 7.68 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
9WP0612G401FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,689 |
|
Datasheet |
San Ace 60W | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 2.52 W | 5600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WP0612H4D01FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
4,693 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

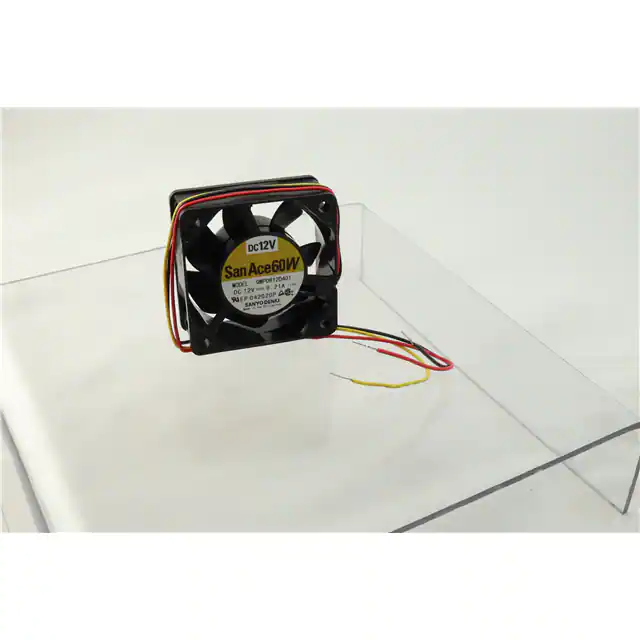

9WP0612D401FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
3,450 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.52 W | 5150 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WP0624G4011FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,175 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
