DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

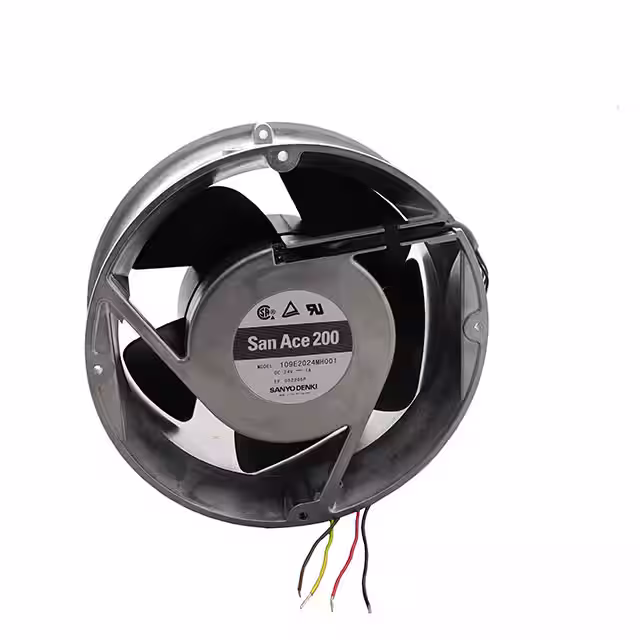

109E2024MH001FAN AXIAL 200X70MM 24VDC WIRE Sanyo Denki America Inc. |
1,394 |
|
Datasheet |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 289.5 CFM (8.11m³/min) | 0.771 in H2O (192.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 24 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UR | 3.9 lbs (1.8 kg) |
|
109E1724H5D01FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
2,741 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

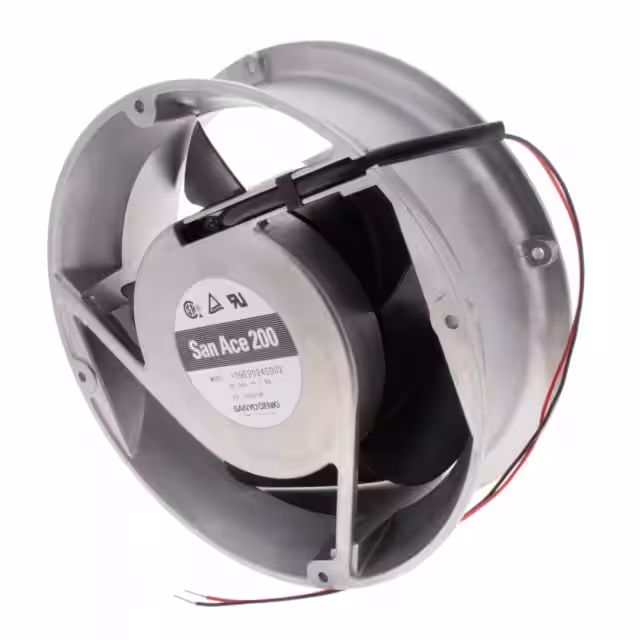

109E2024S002FAN AXIAL 200X70MM 24VDC WIRE Sanyo Denki America Inc. |
2,972 |
|
Datasheet |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 369.0 CFM (10.33m³/min) | 1.153 in H2O (287.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 45.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UR | 3.9 lbs (1.8 kg) |
|

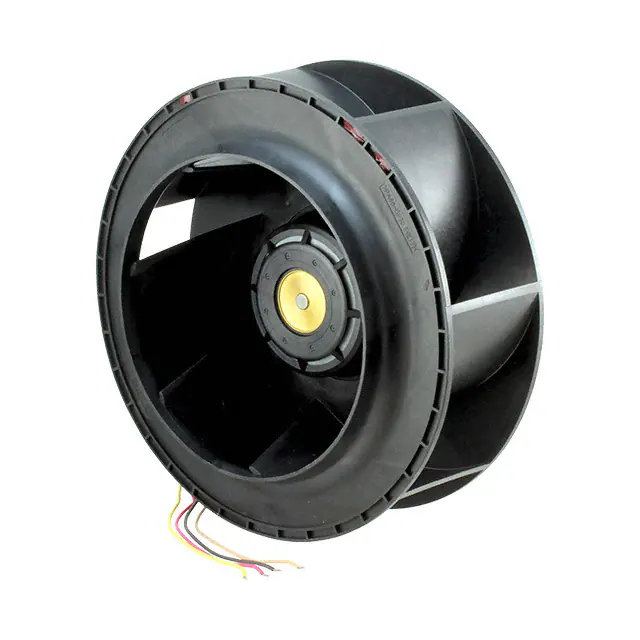

9TP24P0H001FAN IMP MTRZD 221X71MM 24VDC Sanyo Denki America Inc. |
1,862 |
|
Datasheet |
San Ace C221 | Box | Active | 24VDC | Round - 221mm Dia | 71.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 76.8 W | 3050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 2.4 lbs (1.1 kg) |
|
9TS48P0H001FAN IMP MTRZD 225X99MM 48VDC Sanyo Denki America Inc. |
4,478 |
|
Datasheet |
San Ace C225 | Box | Active | 48VDC | Round - 225mm Dia | 99.00mm | 802.0 CFM (22.46m³/min) | 2.370 in H2O (590.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 99.8 W | 2900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 2.6 lbs (1.2 kg) |
|

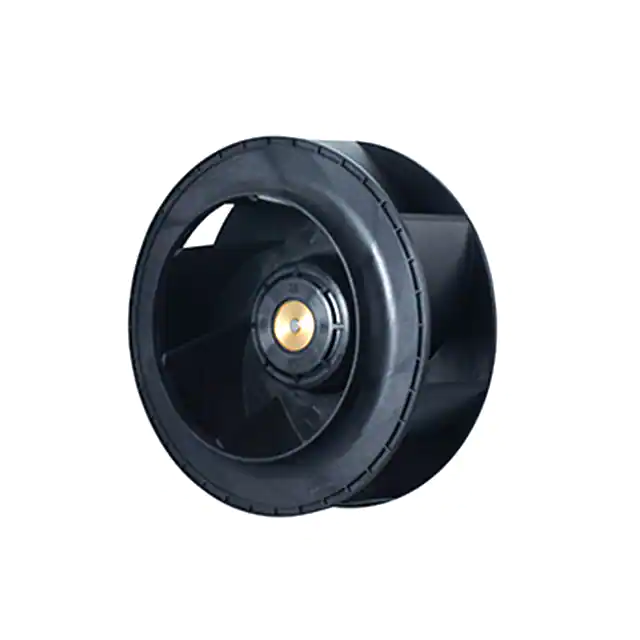

9W2TS48P0S001FAN IMP MTRZD 225X99MM 48VDC Sanyo Denki America Inc. |
4,474 |
|
Datasheet |
San Ace 225W | Box | Active | 48VDC | Round - 225mm Dia | 99.00mm | 830.0 CFM (23.24m³/min) | 2.550 in H2O (635.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 117.6 W | 3000 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | 3.3 lbs (1.5 kg) |
|

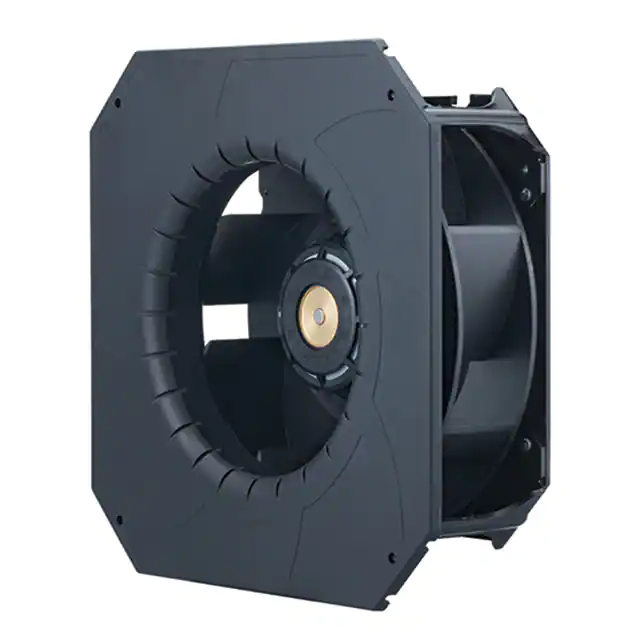

9B1TP48P0H001FAN BLOWER CF 270X99MM 48VDC Sanyo Denki America Inc. |
4,215 |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 99.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 76.8 W | 3050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 3.8 lbs (1.7 kg) |
|
|
9B1TP48P0G001FAN BLOWER CF 270X99MM 48VDC Sanyo Denki America Inc. |
2,357 |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 99.00mm | 742.0 CFM (20.78m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 132 W | 3650 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.8 lbs (1.7 kg) |
|

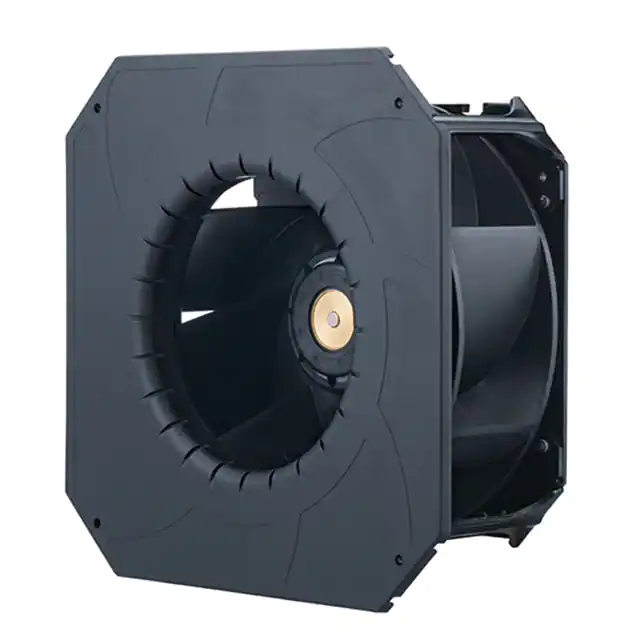

9B1TS48P0H001FAN BLOWER CF 270X119.0MM 48VDC Sanyo Denki America Inc. |
1,212 |
|
Datasheet |
San Ace C225 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 119.0mm | 802.0 CFM (22.46m³/min) | 2.370 in H2O (590.0 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 99.8 W | 2900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 4.2 lbs (1.9 kg) |
|
9W2TP24P0H001FAN IMP MTRZD 221X71MM 24VDC Sanyo Denki America Inc. |
1,347 |
|
Datasheet |
San Ace 221W | Box | Active | 24VDC | Round - 221mm Dia | 71.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.5dB(A) | 80.4 W | 3050 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
