DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109L0612H402FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
3,048 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.32 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|

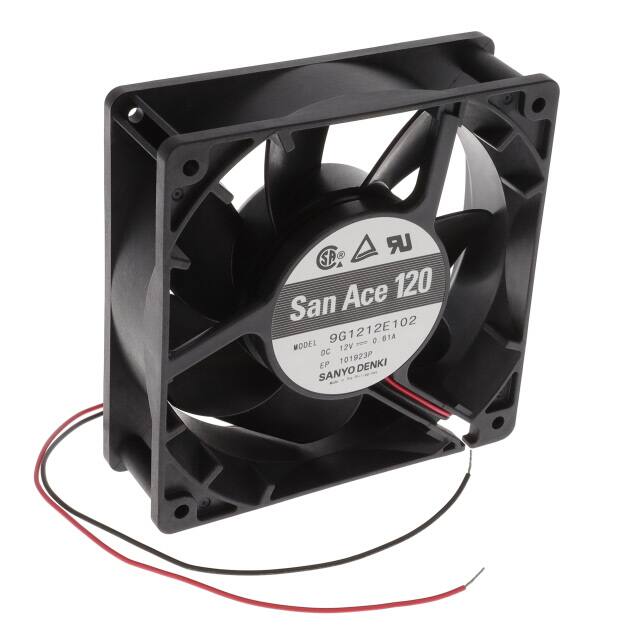

9G1212E102FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,165 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.32 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9LG0824H4002FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,160 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.2 W | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
9WFA0824G6001FAN AXIAL 80X20MM 24VDC WIRE Sanyo Denki America Inc. |
1,857 |
|
Datasheet |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 3.6 W | 6000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.232 lb (105.23 g) |
|
9CR0612P5G03FAN AXIAL DUAL 60X51MM 12VDC Sanyo Denki America Inc. |
2,320 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 71.7 CFM (2.01m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 68.0dB(A) | 32.4 W | 11500 Front, 9000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|

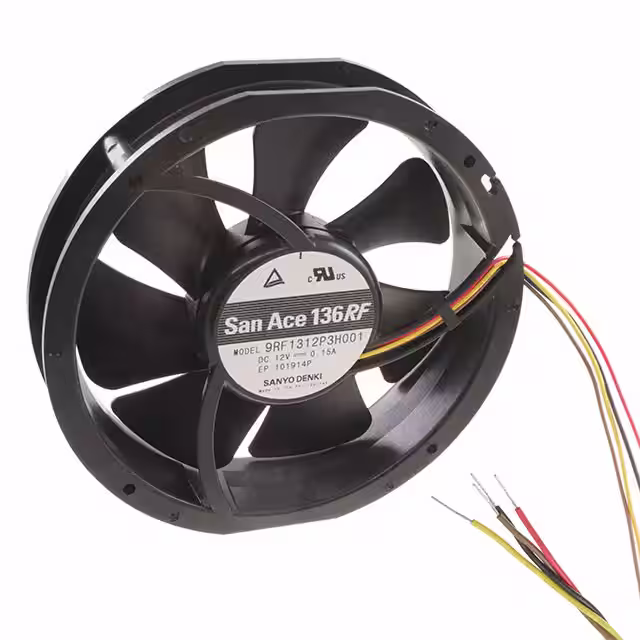

9RF1312P3H001FAN AXIAL 136X28MM 12VDC WIRE Sanyo Denki America Inc. |
2,606 |
|
Datasheet |
San Ace 136RF | Box | Active | 12VDC | Round - 136mm Dia | 28.00mm | 70.7 CFM (1.98m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 35.0dB(A) | 1.8 W | 3100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
9LG0824H4001FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
3,356 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.2 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
9WP1224M101FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
4,632 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.64 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

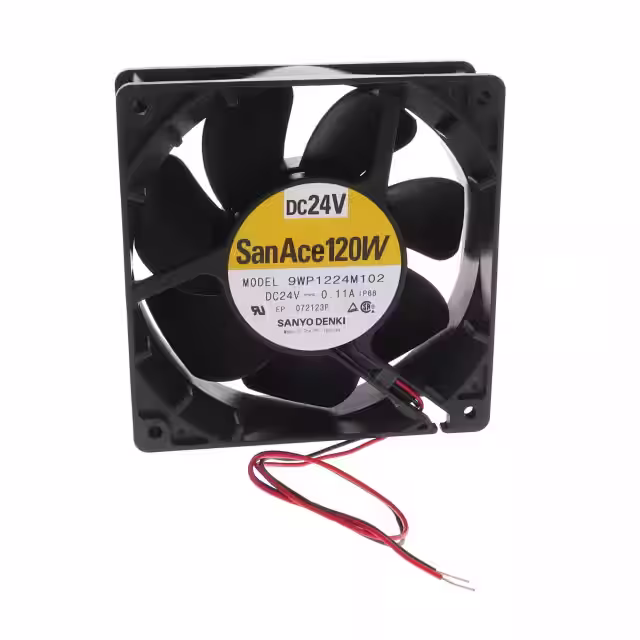

9WP1224M102FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,862 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.64 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

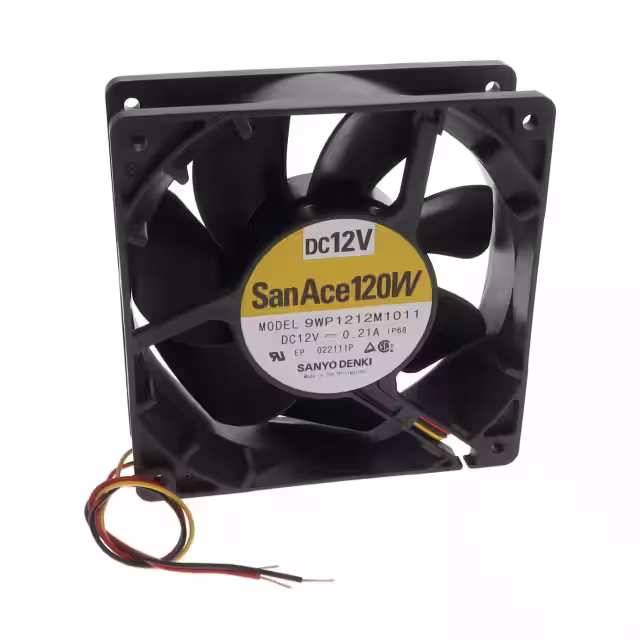

9WP1212M1011FAN AXIAL 120X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,056 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.52 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
