DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F280A4-113-D0510FAN IMP MTRZD 280X128.7MM 24VDC NMB Technologies Corporation |
2,363 |
|
Datasheet |
F280 | Bulk | Active | 24VDC | Round - 280mm Dia | 128.7mm | 940.0 CFM (26.32m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 70.0dB | 93.6 W | 1700 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|

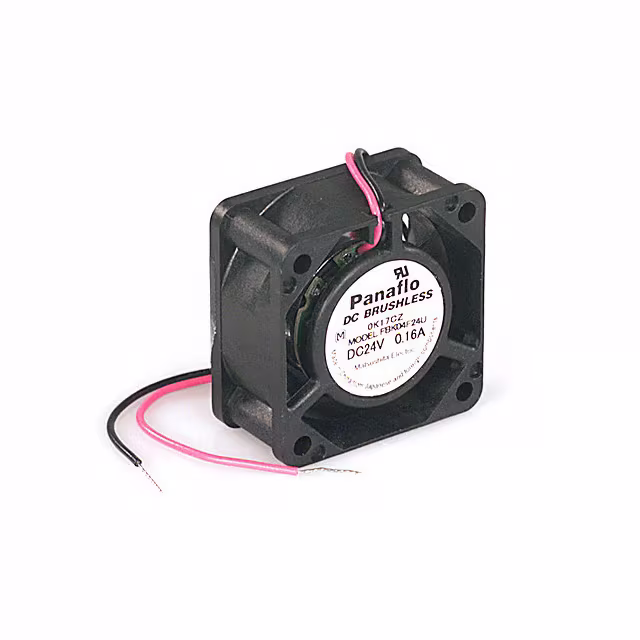

FBK04F24UFAN AXIAL 40X20MM 24VDC WIRE NMB Technologies Corporation |
1,698 |
|
Datasheet |
FBK | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 2.4 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|

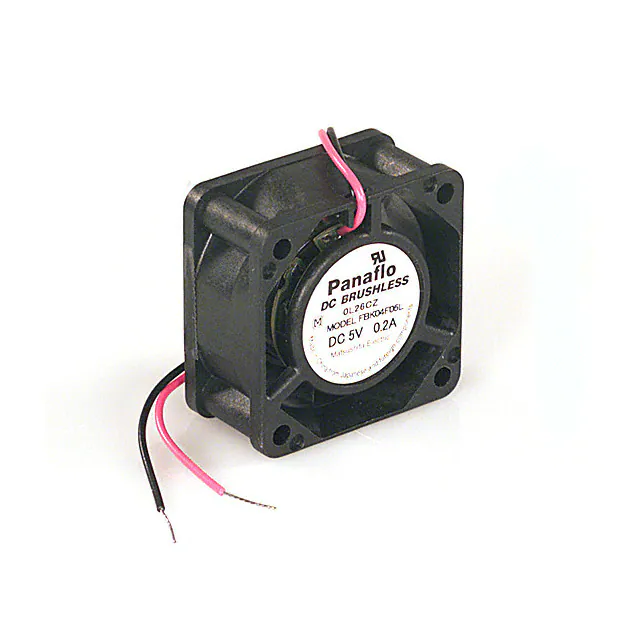

FBK04F05LFAN AXIAL 40X20MM BALL 5VDC WIRE NMB Technologies Corporation |
4,901 |
|
Datasheet |
FBK | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 3.9 CFM (0.109m³/min) | 0.098 in H2O (24.5 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 600 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|

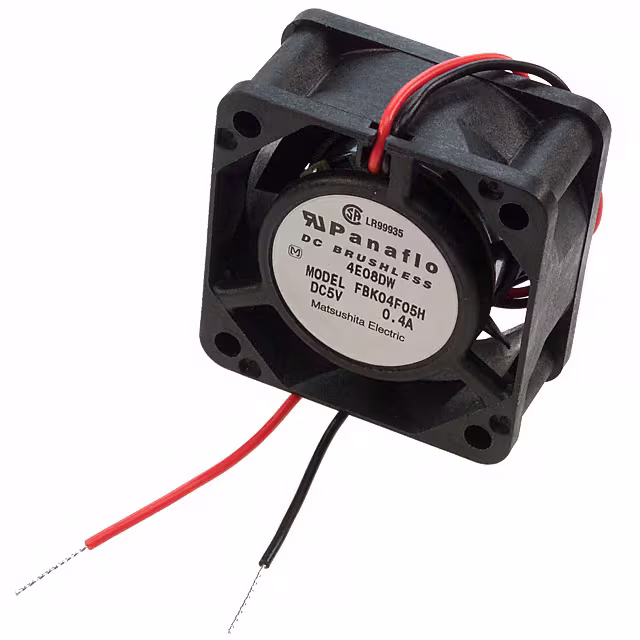

FBK04F05HFAN AXIAL 40X20MM BALL 5VDC WIRE NMB Technologies Corporation |
2,413 |
|
Datasheet |
FBK | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.4 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|

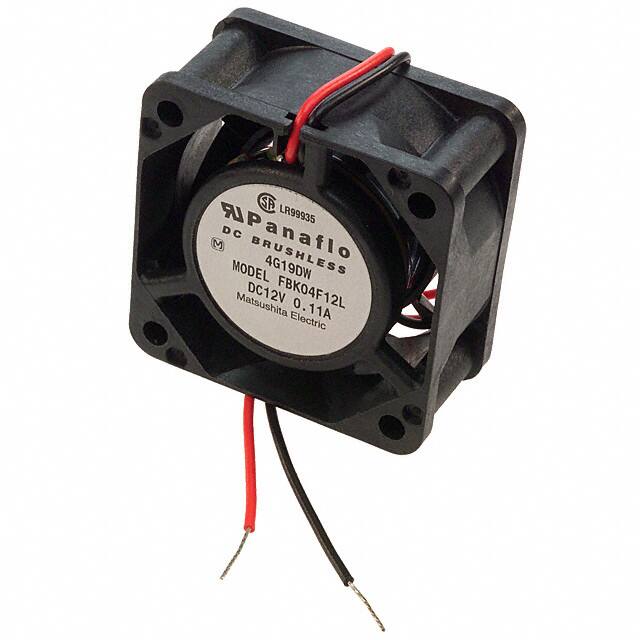

FBK04F12LFAN AXIAL 40X20MM 12VDC WIRE NMB Technologies Corporation |
4,360 |
|
Datasheet |
FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 3.9 CFM (0.109m³/min) | 0.098 in H2O (24.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 900 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|

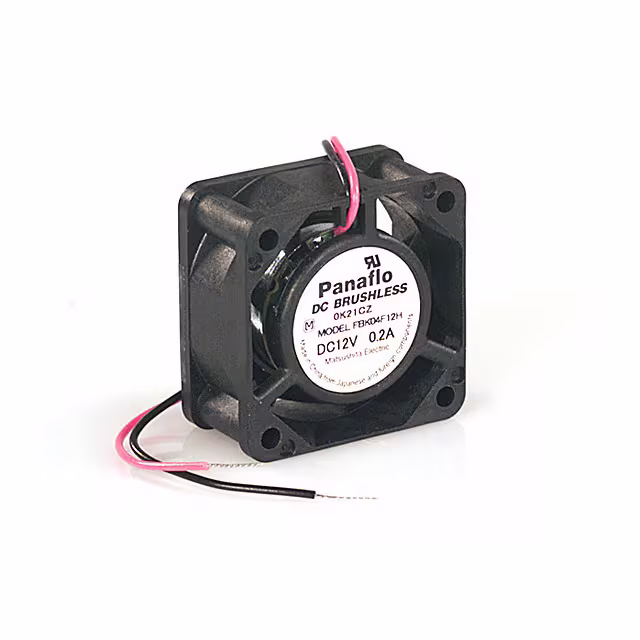

FBK04F12HFAN AXIAL 40X20MM 12VDC WIRE NMB Technologies Corporation |
1,564 |
|
Datasheet |
FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.8 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|
FAL5F12LLFAN BLOWER 76X28MM 12VDC WIRE NMB Technologies Corporation |
1,738 |
|
Datasheet |
FAL-5F | - | Obsolete | 12VDC | Square/Rounded - 76mm L x 76mm H | 28.00mm | 8.8 CFM (0.246m³/min) | 0.244 in H2O (60.8 Pa) | Hydro-wave (HWB) | Blower | - | 30.0dB | 1.68 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FAL6F12LLFAN BLOWER 109X28.1MM 12VDC WIRE NMB Technologies Corporation |
2,997 |
|
Datasheet |
FAL-6F | - | Obsolete | 12VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 28.10mm | 18.7 CFM (0.524m³/min) | 0.443 in H2O (110.3 Pa) | Hydro-wave (HWB) | Blower | - | 40.0dB | 3.36 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.551 lb (249.93 g) |
|
|
FAL6F12LHFAN BLOWER 109X28.1MM 12VDC WIRE NMB Technologies Corporation |
4,775 |
|
Datasheet |
FAL-6F | - | Obsolete | 12VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 28.10mm | 23.0 CFM (0.644m³/min) | 0.709 in H2O (176.6 Pa) | Hydro-wave (HWB) | Blower | - | 45.0dB | 6 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.551 lb (249.93 g) |
|

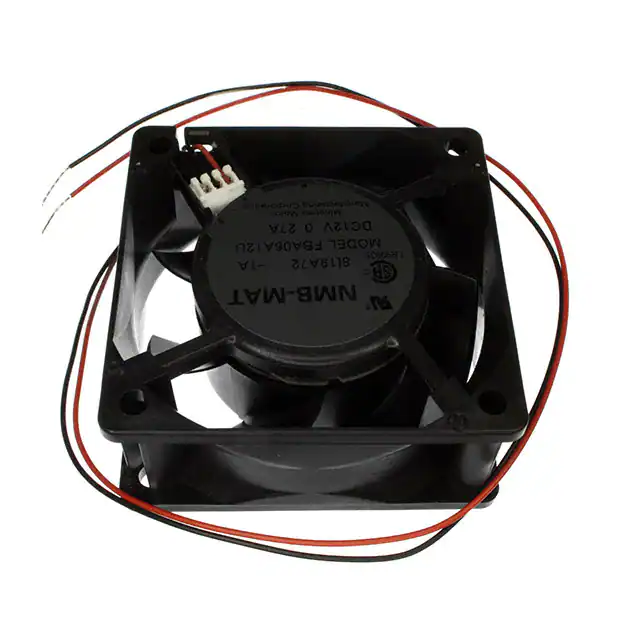

FBA06A12U1AFAN AXIAL 60X25.5MM 12VDC WIRE NMB Technologies Corporation |
1,883 |
|
Datasheet |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 20.5 CFM (0.574m³/min) | 0.233 in H2O (58.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 58.0dB | 2.52 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
