DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

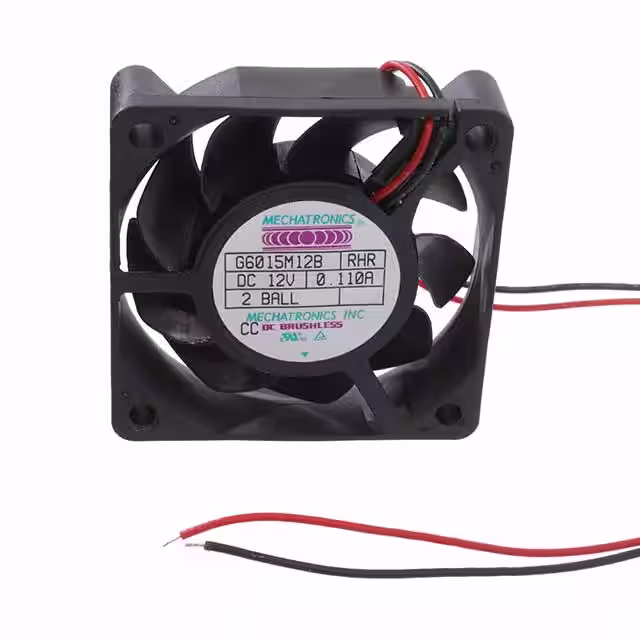

G6015M12B-RHR-CCFAN AXIAL 60X15MM 12VDC WIRE Mechatronics Fan Group |
1,127 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Conformal Coating | 30.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G4020H24B1-RSR-CCFAN AXIAL 40X20MM 24VDC WIRE Mechatronics Fan Group |
3,095 |
|
Datasheet |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
MR9225L24B-FSRFAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
4,342 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.0 CFM (1.90m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 40.9dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225M24B-FSRFAN AXIAL 92X25MM 24VDC WIRE Mechatronics Fan Group |
3,422 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 45.1dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
F6025H12B1-FHR-CCFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
4,316 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025H12B1-RHR-CCFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
3,544 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025H12B2-RSR-CCFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
3,773 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Sensor | 31.0dB(A) | - | 3800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025X24B-FHR-CC-GBFAN AXIAL 60X25MM 24VDC WIRE Mechatronics Fan Group |
3,234 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
MA3828S12B-RSRFAN AXIAL 38X28MM 12VDC WIRE Mechatronics Fan Group |
2,129 |
|
Datasheet |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 30.8dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|
E9225X12B1-FSRFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
3,868 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
