DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238X12BT-FSRFAN AXIAL 119X38MM 12VDC TERM Mechatronics Fan Group |
2,931 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | 2 Terminals | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
F1238X24B-FHRFAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
3,295 |
|
Datasheet |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|
|
F1238X24B-FSRFAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
2,681 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|

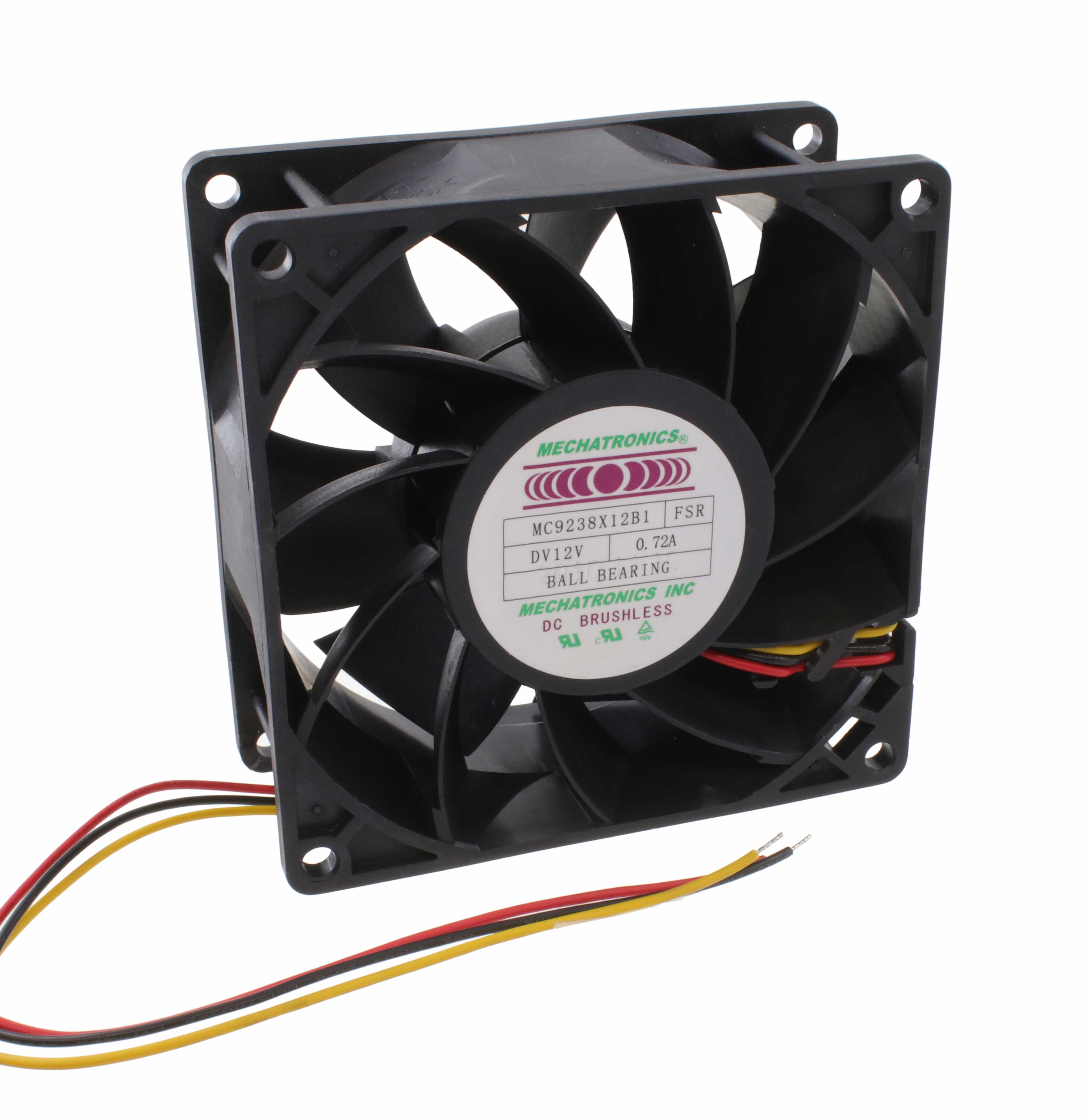

MC9238X12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE Mechatronics Fan Group |
2,523 |
|
Datasheet |
MC9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 80.2 CFM (2.25m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 47.5dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.4 lb (181.44 g) |
|
|
F1238E12BT-FHRFAN AXIAL 119X38MM 12VDC TERM Mechatronics Fan Group |
3,573 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC9238L12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE Mechatronics Fan Group |
1,293 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MS8025H24B1+6-FHR-2EMFAN AXIAL 80X25.2MM 24VDC WIRE Mechatronics Fan Group |
3,991 |
|
Datasheet |
MS8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 70.5 CFM (1.97m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | - | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.172 lb (78.02 g) |
|
|
MH4028H12B1+6-RSR-PCFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
4,267 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart, Paraylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | 4 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
|
MH4028E12B1+6-RSR-PCFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
4,360 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.5 CFM (0.685m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Auto Restart, Paraylene Coating, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.0dB(A) | - | 15000 RPM | 4 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
MD9238H48B-FSR-CCFAN AXIAL 92X38MM 48VDC WIRE Mechatronics Fan Group |
4,308 |
|
Datasheet |
MD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.7 CFM (2.82m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 53.5dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
