DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR3010M12B1-RSRFAN AXIAL 30X10MM 12VDC WIRE Mechatronics Fan Group |
2,163 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.2dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE Mechatronics Fan Group |
1,660 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.2dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|

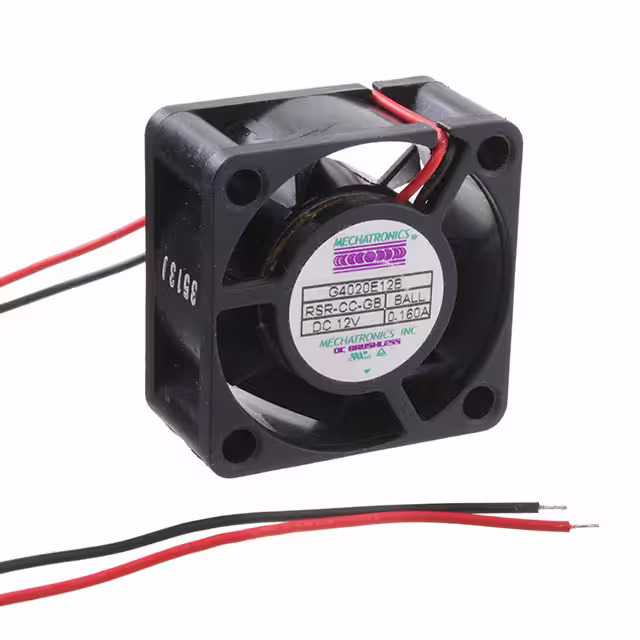

G4020E12B-RSR-CC-GBFAN AXIAL 40X20MM 12VDC WIRE Mechatronics Fan Group |
4,811 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020L05B1+6-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE Mechatronics Fan Group |
2,076 |
|
Datasheet |
G4020 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
|
G4020H05B1+6-RSR-WSFAN AXIAL 40X20MM 5VDC WIRE Mechatronics Fan Group |
2,949 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F8025H24B1-FSRFAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
4,311 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
G9232E12B-FSRFAN AXIAL 92X32MM 12VDC WIRE Mechatronics Fan Group |
2,203 |
|
Datasheet |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232E24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
3,693 |
|
Datasheet |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232H24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
2,857 |
|
Datasheet |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 55.0 CFM (1.54m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232X24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
2,206 |
|
Datasheet |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
