AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP102AT1122MBT.GNFAN AXIAL 120X25MM 115VAC |
4,292 |
|
Datasheet |
SP | Bulk | Active | 115VAC | - | 25.50mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Terminals | - | - | - | 1.2 lbs (550 g) |
|
|
3115PS-23T-B3A-A00FAN AXIAL 80X38MM 230VAC TERM |
3,328 |
|
Datasheet |
PS | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 8.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.595 lb (269.89 g) |
|
|
08038PB-B3L-EP-00FAN 80MM X 38MM 230VAC TERMINAL |
2,763 |
|
- |
08038PB | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB | 8.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
3115FS-12T-B20-A00FAN AXIAL 80X38MM 115VAC TERM |
2,834 |
|
Datasheet |
FS | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 27.0 CFM (0.756m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 40.0dB | 7.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.74 lb (335.66 g) |
|
|
DP209WR 2123HBT.GNFAN AXIAL 120X38MM 220/240VAC |
4,880 |
|
Datasheet |
DP | Bulk | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 21.00W | 2900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1 lb (453.59 g) |
|
OA80AP-22-2TBFAN AXIAL 80X38MM 230VAC TERM |
2,900 |
|
Datasheet |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 25.0 CFM (0.700m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 32.0dB | 12.00W | 2400 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OA80AP-22-3WBFAN AXIAL 80X38MM 230VAC WIRE |
2,861 |
|
Datasheet |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 17.0 CFM (0.476m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 12.00W | 1950 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
SF207A/SGNFAN AXIAL 120X38MM 24VAC |
4,603 |
|
- |
SF | Bulk | Active | 24VAC | Square - 119mm L x 119mm H | 38.50mm | 90.0 CFM (2.52m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 43.0dB(A) | 12.00W | 2400 RPM | 2 Wire Leads | - | - | - | - |
|
FAA1-08038QBMT31FAN AXIAL 80X38MM 230VAC TERM |
1,434 |
|
Datasheet |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 26.2dB(A) | 5.00W | 2400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.706 lb (320.24 g) |
|
|
4710PS-12T-B3A-A00FAN AXIAL 119X25.5MM 115VAC TERM |
4,359 |
|
Datasheet |
PS | Box | Active | 115VAC | Square - 119mm L x 119mm H | 25.50mm | 70.6 CFM (1.98m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 11.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.8 lb (362.87 g) |
|
|
11925PB-A1L-EP-00FAN 119MM X 25MM 115VAC TERMINAL |
4,497 |
|
- |
11925PB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 25.50mm | 70.6 CFM (1.98m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB | 11.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MA1092-HVL.GNFAN AXIAL 92X25MM 115VAC WIRE |
4,406 |
|
Datasheet |
MagLev® MA | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB | 3.60W | 3000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.264 lb (119.75 g) |
|
4715MS-12T-B10-A00FAN AXIAL 119X38MM 115VAC TERM |
3,542 |
|
Datasheet |
MS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 49.4 CFM (1.38m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | - | 28.0dB | 5.50W | 1450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
4715FS-23T-B50-D00FAN AXIAL 119X38MM 230VAC TERM |
3,491 |
|
Datasheet |
FS | Bulk | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 45.0dB | 14.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
4715FS-23T-B20-D00FAN AXIAL 119X38MM 230VAC TERM |
1,829 |
|
Datasheet |
FS | Box | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 36.0dB | 8.80W | 2300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|

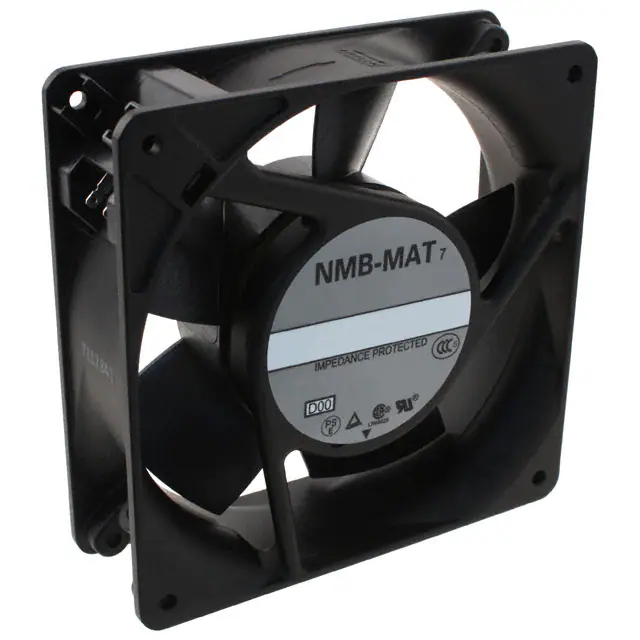

4715FS-12T-B40-D00FAN AXIAL 119X38MM 115VAC TERM |
1,675 |
|
Datasheet |
FS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | - | 42.0dB | 14.00W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
4715MS-23W-B50-A00FAN AXIAL 119X38MM 230VAC WIRE |
1,886 |
|
Datasheet |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.00W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
11938FB-A1J-AA-00FAN 115VAC 119X38MM WR |
3,406 |
|
Datasheet |
FS | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 70.0 CFM (1.96m³/min) | 0.120 in H2O (30.0 Pa) | Ball | Tubeaxial | - | 33.0dB | 10.00W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938FB-A1K-AA-00FAN 115VAC 119X38MM WR |
2,372 |
|
Datasheet |
FS | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 36.0dB | 9.80W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938FB-B3J-AA-00FAN 230VAC 119X38MM WR |
4,642 |
|
Datasheet |
FS | Box | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 70.0 CFM (1.96m³/min) | 0.120 in H2O (30.0 Pa) | Ball | Tubeaxial | - | 33.0dB | 9.00W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
