AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF4113MBT-000U-A99FAN AXIAL 120X38MM 100-240V |
1,051 |
|
Datasheet |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 40.2dB(A) | 3.40W | 3000 RPM | 2 Terminals | - | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.595 lb (269.89 g) |
|
109S096FAN 92X25MM 100VAC |
4,324 |
|
Datasheet |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 6.00W | 1700 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.639 lb (289.85 g) |
|
109S095FAN AXIAL 92X25MM 100VAC WIRE |
1,469 |
|
Datasheet |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 34.7 CFM (0.972m³/min) | 0.161 in H2O (40.2 Pa) | - | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 7.00W | 2800 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.644 lb (292.11 g) |
|
|
109S192FAN AXIAL 92X25MM 200VAC WIRE |
1,375 |
|
Datasheet |
San Ace 92 | Box | Active | 200VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | - | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 7.00W | 1700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.644 lb (292.11 g) |
|
|
109S193FAN AXIAL 92X25MM 115VAC WIRE |
1,466 |
|
Datasheet |
San Ace 92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | - | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 6.00W | 1700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.644 lb (292.11 g) |
|
|
109S194FAN AXIAL 92X25MM 230VAC WIRE |
2,206 |
|
Datasheet |
San Ace 92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | - | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 7.00W | 1700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.644 lb (292.11 g) |
|
UF15AC12-BTHR-CCFAN AXIAL 172X150X38MM 115VAC |
1,633 |
|
Datasheet |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 28.00W | 3400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.6 lbs (725.7 g) |
|
UF15PC12-BTHR-CCFAN AXIAL 172X150X51MM 115VAC |
4,545 |
|
Datasheet |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 31.00W | 3400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
_Series.jpg)
|
8880TAFAN AXIAL 76X37MM 230VAC WIRE |
4,830 |
|
Datasheet |
8000TA | Bulk | Active | 230VAC | Round - 76mm Dia | 37.00mm | 13.5 CFM (0.378m³/min) | - | Sintec | Tubeaxial | - | 15.0dB(A) | 9.00W | 1650 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
8880TVFAN AXIAL 76X37MM 230VAC WIRE |
1,513 |
|
Datasheet |
8000TV | Bulk | Active | 230VAC | Round - 76mm Dia | 37.00mm | 14.1 CFM (0.395m³/min) | - | Sintec | Tubeaxial | - | 15.0dB(A) | 9.00W | 1650 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
3950FAN AXIAL 92X25MM 230VAC TERM |
4,075 |
|
Datasheet |
3900 | Bulk | Obsolete | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 34.7 CFM (0.972m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 11.00W | 2650 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|
|
8500TVFAN AXIAL 76X37MM 115VAC WIRE |
2,838 |
|
Datasheet |
8000TV | Bulk | Obsolete | 115VAC | Round - 76mm Dia | 37.00mm | 27.7 CFM (0.776m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 11.00W | 3150 RPM | 2 Wire Leads | - | 14 ~ 167°F (-10 ~ 75°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
109S081FAN AXIAL 120X25MM 100VAC WIRE |
4,963 |
|
Datasheet |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 25.00mm | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | - | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 8.50W | 2350 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
|
109S083FAN AXIAL 120X25MM 115VAC WIRE |
3,304 |
|
Datasheet |
San Ace 120 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | - | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 8.50W | 2350 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
|
109S089FAN AXIAL 120X25MM 230VAC WIRE |
4,631 |
|
Datasheet |
San Ace 120 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 25.00mm | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | - | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 8.50W | 2350 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
55442.60082FAN BLOWER CF 240X79MM 115VAC |
4,243 |
|
Datasheet |
QLK45 | Bulk | Obsolete | 115VAC | Rectangular - 331mm L x 71mm H (45mm Dia) | 79.00mm | 107.0 CFM (3.00m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 41.00W | 2100 RPM | Terminal Block | - | - | - | 2.4 lbs (1.1 kg) |
|
109-151FAN 80X38MM 200VAC |
2,322 |
|
Datasheet |
San Ace 80 | Box | Active | 200VAC | Square - 80mm L x 80mm H | 38.00mm | 37.1 CFM (1.04m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 8.00W | 3150 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.882 lb (400.07 g) |
|
UF15KCR23-BWHRFAN AXIAL 172X150X55MM 230VAC |
1,883 |
|
Datasheet |
UF15KCR | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 241.0 CFM (6.75m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Reverse Air Flow, Thermal Overload Protector (TOP) | 66.0dB(A) | 31.00W | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|

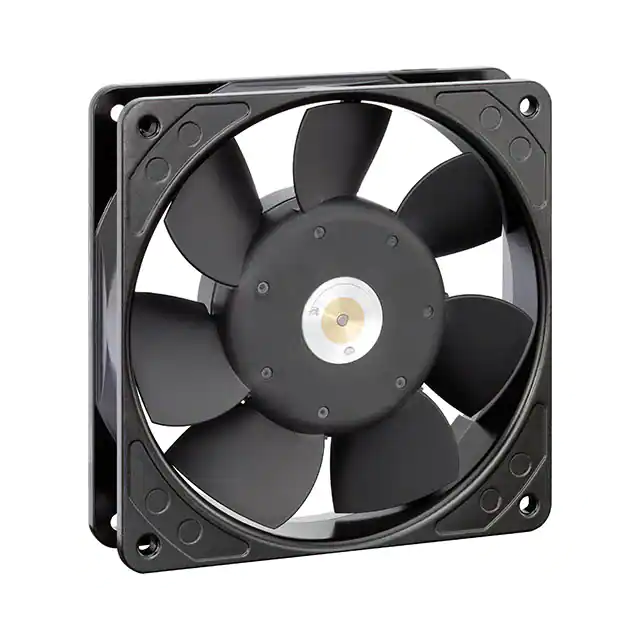

9906FAN AXIAL 119X25MM 115VAC TERM |
1,449 |
|
Datasheet |
9900 | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 25.00mm | 79.5 CFM (2.23m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 12.00W | 2850 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 0.716 lb (324.77 g) |
|
|
8800TAFAN AXIAL 76X37MM 115VAC WIRE |
4,595 |
|
Datasheet |
8000TA | Bulk | Active | 115VAC | Round - 76mm Dia | 37.00mm | 20.0 CFM (0.560m³/min) | - | Sintec | Tubeaxial | - | 23.0dB(A) | 11.00W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
