Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1685AEVAL BOARD FOR LTC2209 LTC6417 Analog Devices Inc. |
4,295 |
|
Datasheet |
- | Box | Active | Data Acquisition | - | - | LTC2209, LTC6417 | - | - | Board(s) |
|

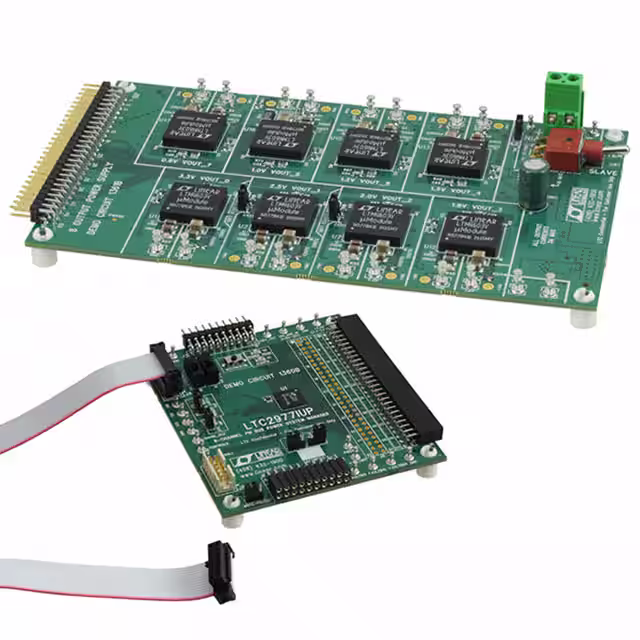

DC1540BEVAL BOARD FOR LTC2977 Analog Devices Inc. |
1,886 |
|
Datasheet |
- | Box | Active | Power Management | Digital Power Controller | No | LTC2977 | 8-Channel (Octal) | Graphical User Interface (GUI) | Board(s), Cable(s) |
|

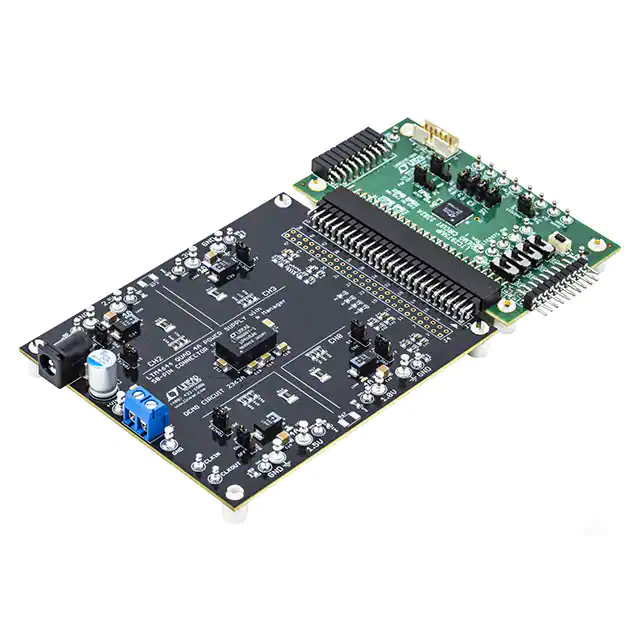

DC2428AEVAL BOARD FOR LTC2975 LTM4644 Analog Devices Inc. |
2,477 |
|
Datasheet |
- | Box | Active | Power Management | Digital Power Controller | No | LTC2975, LTM4644 | 4-Channel (Quad) | - | Board(s) |
|

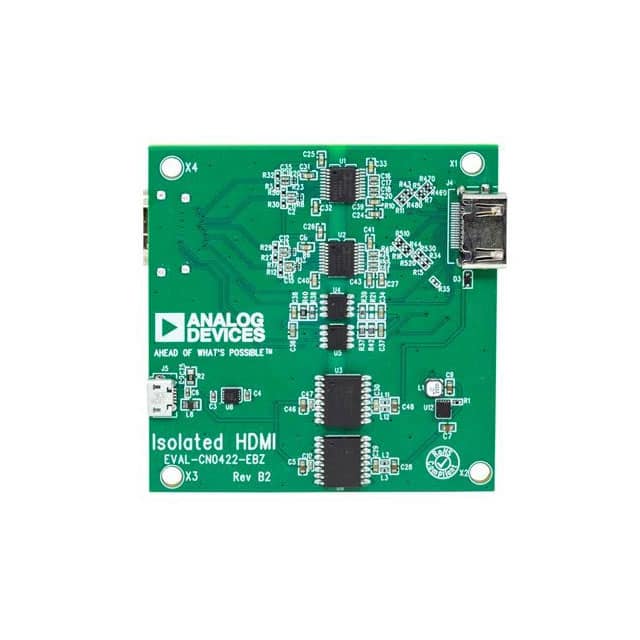

EVAL-CN0422-EBZEVAL BOARD FOR CN0422 Analog Devices Inc. |
3,131 |
|
Datasheet |
Circuits from the Lab™ | Box | Active | Reference Design | Isolated Data Acquisition System | - | CN0422 | HDMI to LVDS | - | Board(s) |
|

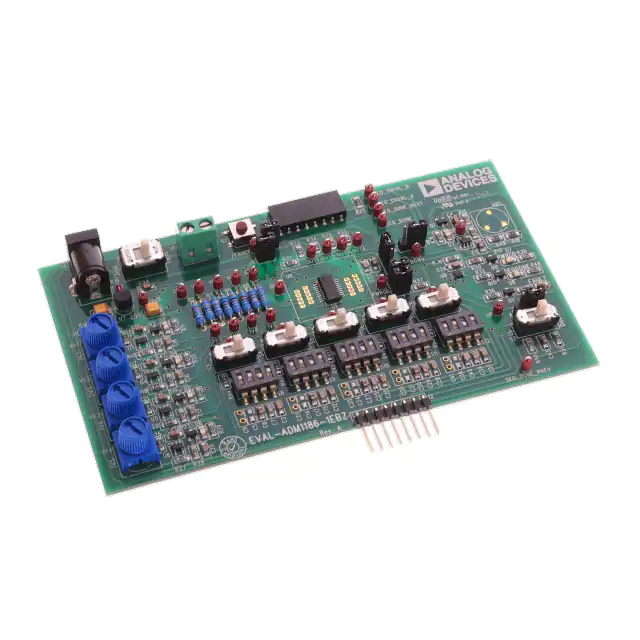

EVAL-ADM1186-1EBZEVAL BOARD FOR ADM1186-1 Analog Devices Inc. |
2,184 |
|
Datasheet |
- | Box | Active | Power Management | Power Supply Supervisor/Tracker/Sequencer | - | ADM1186-1 | - | - | Board(s) |
|

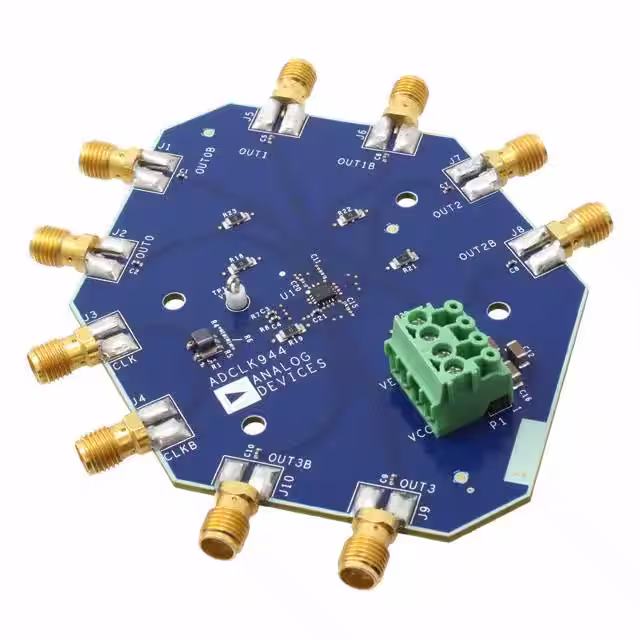

ADCLK944/PCBZEVAL BOARD FOR ADCLK944 Analog Devices Inc. |
1,048 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer | - | ADCLK944 | Differential Inputs | Differential Output | Board(s) |
|

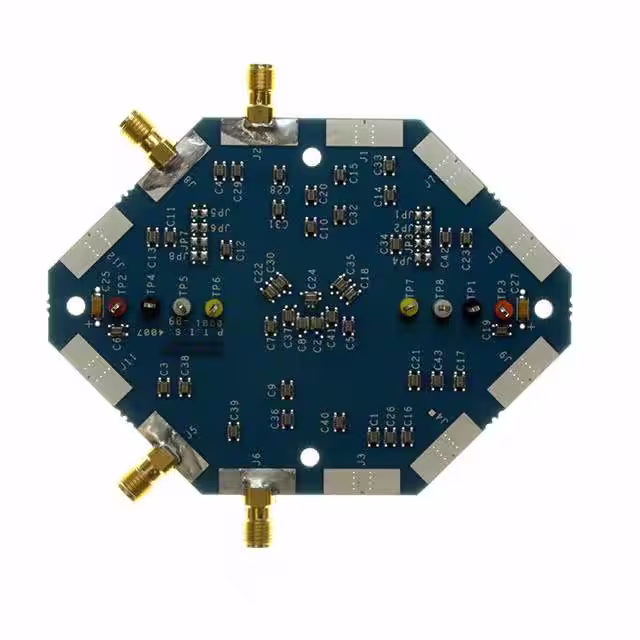

ADCLK905/PCBZEVAL BOARD FOR ADCLK905 Analog Devices Inc. |
1,445 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | No | ADCLK905 | 1 Input, 1 Output | ECL, LVPECL, PECL Output Logic | Board(s) |
|

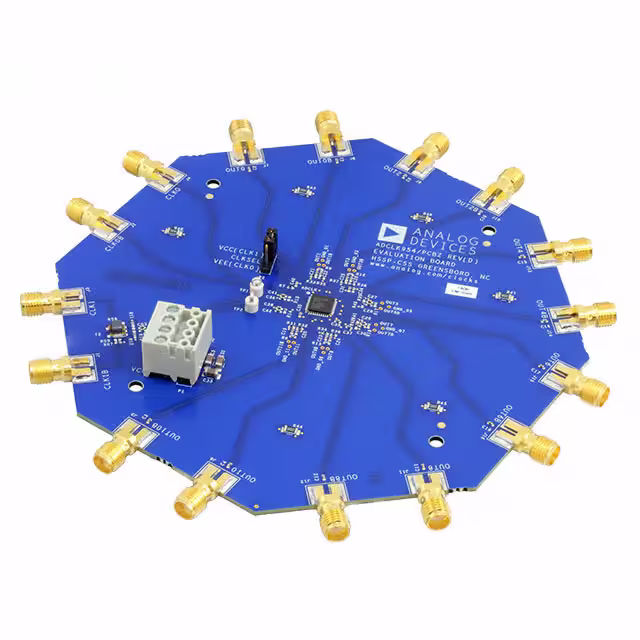

ADCLK954/PCBZEVAL BOARD FOR ADCLK954 Analog Devices Inc. |
4,567 |
|
Datasheet |
SiGe | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | No | ADCLK954 | 2 Inputs, 12 Outputs | LVPECL Output Logic | Board(s) |
|

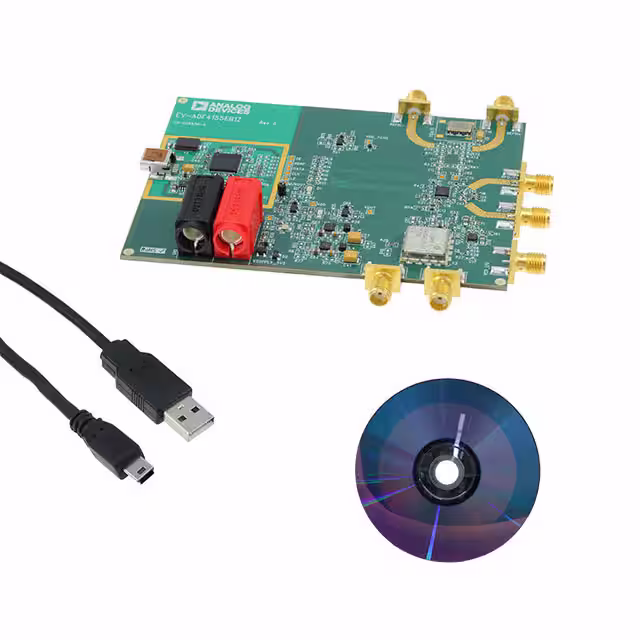

EV-ADF4155EB1ZEVAL BOARD FOR ADF4155 Analog Devices Inc. |
1,500 |
|
Datasheet |
- | Box | Active | Timing | Frequency Synthesizer | - | ADF4155 | Single Fractional-N and Integer-N PLL | USB Interface(s), Graphical User Interface (GUI) | Board(s), Cable(s) |
|

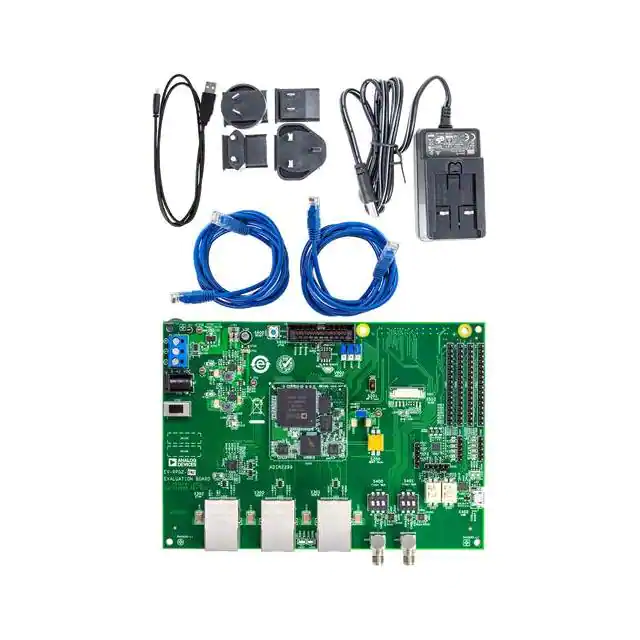

EV-RPG2-ECZEVAL BOARD FOR ADIN2299 Analog Devices Inc. |
2,301 |
|
Datasheet |
- | Bulk | Active | Interface | Ethernet | Yes | ADIN2299 | 3.3V Supply | On-Board LEDs | Board(s) |
