Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of DAC's | Number of Bits | Sampling Rate (Per Second) | Data Interface | Settling Time | DAC Type | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX5865EVKITEVAL BOARD FOR MAX5865 |
4,773 |
|
- |
- | Box | Obsolete | 2 | 8, 10 | 40M | Serial, SPI | - | - | MAX5865 | Board(s), Cable(s) |
|
|
MAX5888EVKITEVAL BOARD FOR MAX5886 |
4,787 |
|
- |
- | Box | Obsolete | 1 | 16 | 500M | LVDS | 11 ns | Current | MAX5886 | Board(s) |
|

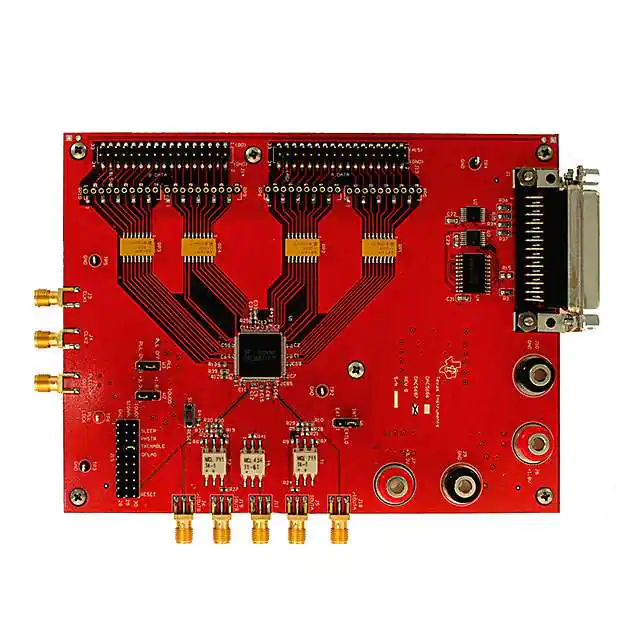

DAC5686EVMEVAL BOARD FOR DAC5686 |
4,614 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 16 | 500M | Parallel | 12 ns | Current | DAC5686 | Board(s) |
|

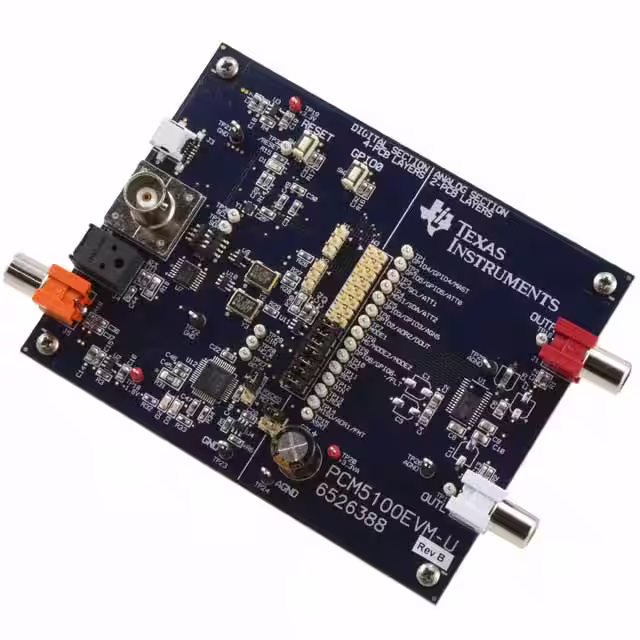

PCM5100EVM-UEVAL BOARD FOR PCM5100 |
3,710 |
|
Datasheet |
DirectPath™ | Box | Obsolete | 2 | 16, 24, 32 | 8k ~ 384k | PCM | - | Current | PCM5100 | Board(s) |
|

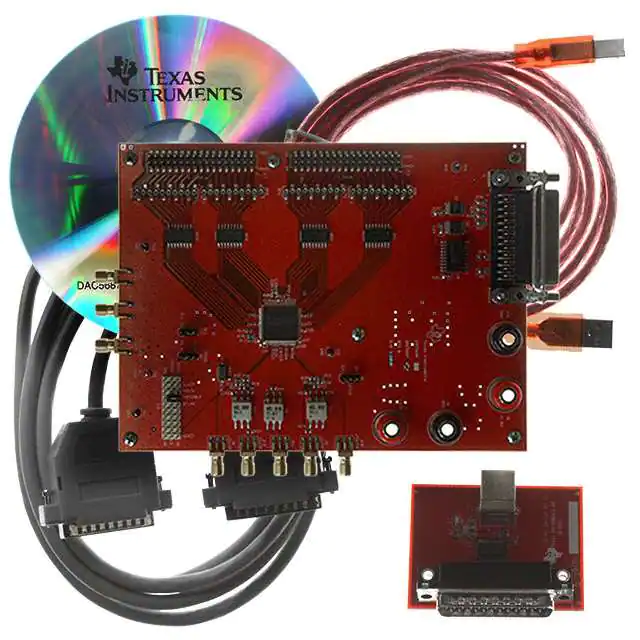

DAC5687EVMEVAL BOARD FOR DAC5687 |
3,710 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 16 | 500M | Parallel | 10.4 ns | Current | DAC5687 | Board(s) |
|
|
MAX5774EVKIT+EVAL BOARD FOR MAX5774 |
2,420 |
|
Datasheet |
- | Box | Obsolete | 32 | 14 | - | Serial | 20 µs | Voltage | MAX5774 | Board(s) |
|
|
MAX5875EVKIT#EVAL BOARD FOR MAX5875 |
3,972 |
|
Datasheet |
- | Box | Active | 2 | 16 | 200M | CMOS | 14 ns | Current | MAX5875 | Board(s) |
|
|
MAX5873EVKIT#EVAL BOARD FOR MAX5873 |
3,597 |
|
Datasheet |
- | Box | Active | 2 | 12 | 200M | CMOS | 14 ns | Current | MAX5873 | Board(s) |
|
|
MAX5887EVKIT#EVAL BOARD FOR MAX5887 |
1,072 |
|
Datasheet |
- | Box | Active | 1 | 14 | 500M | LVDS | 11 ns | Current | MAX5887 | Board(s) |
|
|
MAX5874EVKIT#EVAL BOARD FOR MAX5874 |
1,569 |
|
Datasheet |
- | Box | Active | 2 | 14 | 200M | CMOS | 14 ns | Current | MAX5874 | Board(s) |
|
|
MAX5854EVKITEVAL BOARD FOR MAX5854 |
3,629 |
|
- |
- | Box | Active | 2 | 10 | 165M | CMOS | - | Current/Voltage | MAX5854 | Board(s) |
|
|
ISL5761EVAL1EVAL BOARD FOR ISL5761 SOIC |
4,439 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 10 | 210M | Parallel | - | Current | ISL5761 SOIC | Board(s) |
|
|
ISL5761EVAL2EVAL BOARD FOR ISL5761 TSSOP |
2,307 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 10 | 210M | Parallel | - | Current | ISL5761 TSSOP | Board(s) |
|
|
ISL5861EVAL1EVAL BOARD FOR ISL5861 SOIC |
1,221 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 12 | 210M | Parallel | - | Current | ISL5861 SOIC | Board(s) |
|
|
ISL5861EVAL2EVAL BOARD FOR ISL5861 TSSOP |
2,182 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 12 | 210M | Parallel | - | Current | ISL5861 TSSOP | Board(s) |
|
|
ISL5961EVAL1EVAL BOARD FOR ISL5961 SOIC |
2,247 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 14 | 210M | Parallel | - | Current | ISL5961 SOIC | Board(s) |
|
|
ISL5961EVAL2EVAL BOARD FOR ISL5961 TSSOP |
3,689 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 14 | 210M | Parallel | - | Current | ISL5961 TSSOP | Board(s) |
|
|
MAX5852EVKITEVAL BOARD FOR MAX5852 |
2,704 |
|
- |
- | Box | Active | 2 | 8 | 165M | Parallel | - | Current/Voltage | MAX5852 | Board(s) |
|
|
MAX5888EVKIT#EVAL BOARD FOR MAX5888 |
1,455 |
|
Datasheet |
- | Box | Active | 1 | 16 | 500M | LVDS | 11 ns | Current | MAX5888 | Board(s) |
|
|
DAC80516EVMEVAL BOARD FOR DAC80516 |
2,161 |
|
- |
- | Bulk | Active | 16 | 16 | - | I2C, SPI | 6 µs | Voltage | DAC80516 | Board(s) |
