Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of DAC's | Number of Bits | Sampling Rate (Per Second) | Data Interface | Settling Time | DAC Type | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BOB-12918EVAL BOARD FOR MCP4725 |
311 |
|
Datasheet |
- | Bulk | Active | 1 | 12 | 3.4M | I2C | 6 µs | Voltage | MCP4725 | Board(s) |
|
935EVAL BOARD FOR MCP4725 |
274 |
|
Datasheet |
- | Box | Active | 1 | 12 | 3.4M | I2C | 6 µs | Voltage | MCP4725 | Board(s) |
|
DC2025A-AEVAL BOARD FOR LTC2668-16 |
2,512 |
|
Datasheet |
SoftSpan™ | Box | Active | 16 | 16 | - | Serial, SPI | 9 µs | Voltage | LTC2668-16 | Board(s) |
|
DC2303A-AEVAL BOARD FOR LTC2000-16 |
2,601 |
|
Datasheet |
- | Box | Active | 1 | 16 | 2.5G | LVDS - Serial, SPI | 2.2 ns | Current | LTC2000-16 | Board(s) |
|
AD9144-FMC-EBZEVAL BOARD FOR AD9144 |
3,581 |
|
Datasheet |
TxDAC+® | Box | Active | 4 | 16 | 2.8G | Serial JESD204B, SPI™ | 20 ns | Current | AD9144 | Board(s), Cable(s) |
|
DAC38RF82EVMEVAL BOARD FOR DAC38RF82 |
3,798 |
|
Datasheet |
- | Bulk | Active | 2 | 14 | 9G | JESD204B | 1 ns | Voltage | DAC38RF82 | Board(s) |
|
AD9174-FMC-EBZEVAL BOARD FOR AD9174 |
2,741 |
|
Datasheet |
- | Bulk | Active | 2 | 16 | 12.6G | JESD204B Serial | - | Current/Voltage | AD9174 | Board(s) |
|
AD9176-FMC-EBZEVAL BOARD FOR AD9176 |
3,277 |
|
Datasheet |
- | Bulk | Active | 2 | 16 | 12.6G | JESD204B Serial | - | Current/Voltage | AD9176 | Board(s) |
|

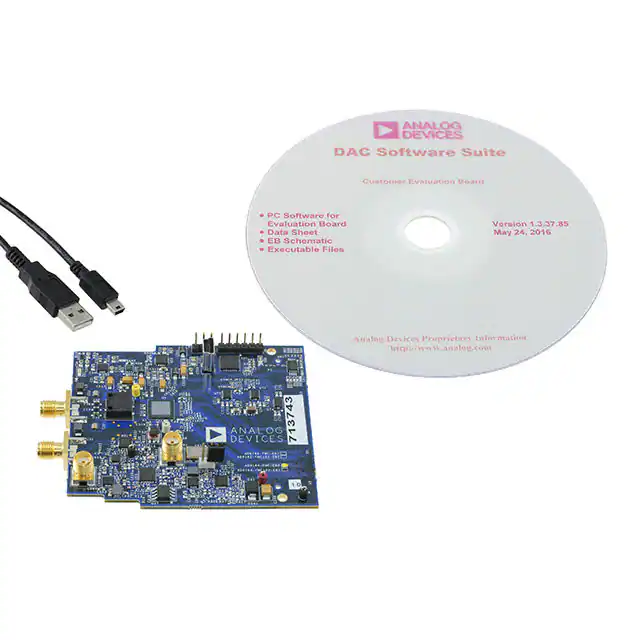

AD9164-FMC-EBZEVAL BOARD FOR AD9164 |
1,820 |
|
Datasheet |
- | Bulk | Active | 1 | 16 | 12G | JESD204B Serial | - | Current | AD9164 | Board(s) |
|

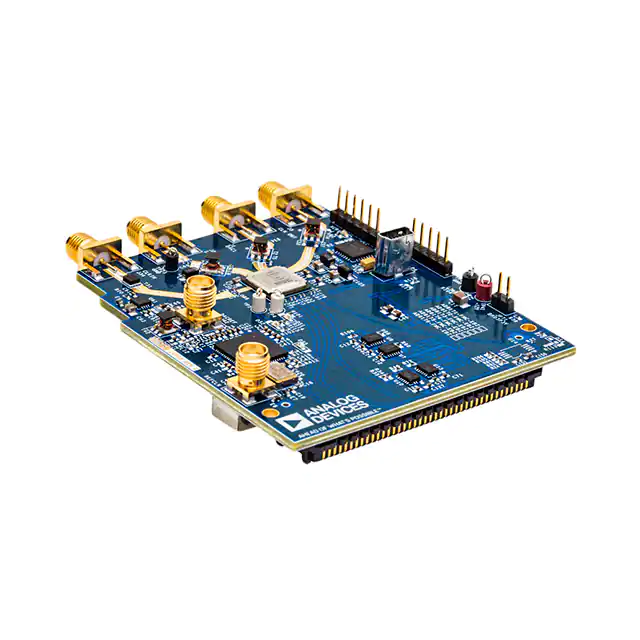

AD9172-FMC-EBZEVAL BOARD FOR AD9172 |
1,334 |
|
Datasheet |
- | Bulk | Active | 2 | 16 | 12.6G | JESD204B, Serial, SPI | - | Current | AD9172 | Board(s) |
|
MCP4728EVEVAL BOARD FOR MCP4728 |
3,101 |
|
Datasheet |
- | Bulk | Active | 4 | 12 | - | I2C | 6 µs | Voltage | MCP4728 | Board(s) |
|

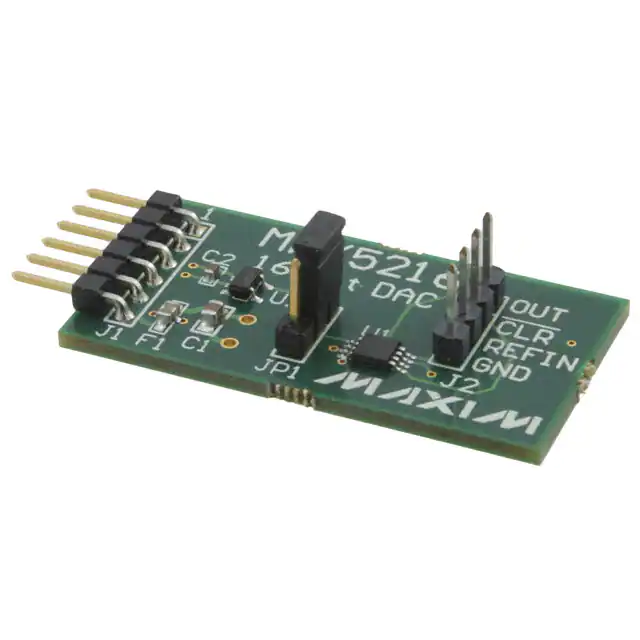

MAX5216PMB1#EVAL BOARD FOR MAX5216 |
2,481 |
|
Datasheet |
- | Box | Active | 1 | 16 | - | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 14 µs | Voltage | MAX5216 | Board(s) |
|
|
DAC80508-04EVMEVAL BOARD FOR DAC80508 |
4,979 |
|
Datasheet |
- | Box | Active | 8 | 16 | - | Serial, SPI | 5 µs | Voltage | DAC80508 | Board(s) |
|
DAC121S101EVMEVAL BOARD FOR DAC121S101 |
2,189 |
|
Datasheet |
- | Box | Active | 1 | 12 | - | Serial | 12 µs | Voltage | DAC121S101 | Board(s) |
|
|
DAC80502-01EVMEVAL BOARD FOR DAC80502 |
3,466 |
|
Datasheet |
- | Box | Active | 1 | 16 | - | I2C, SPI | 5 µs | Voltage | DAC80502 | Board(s) |
|

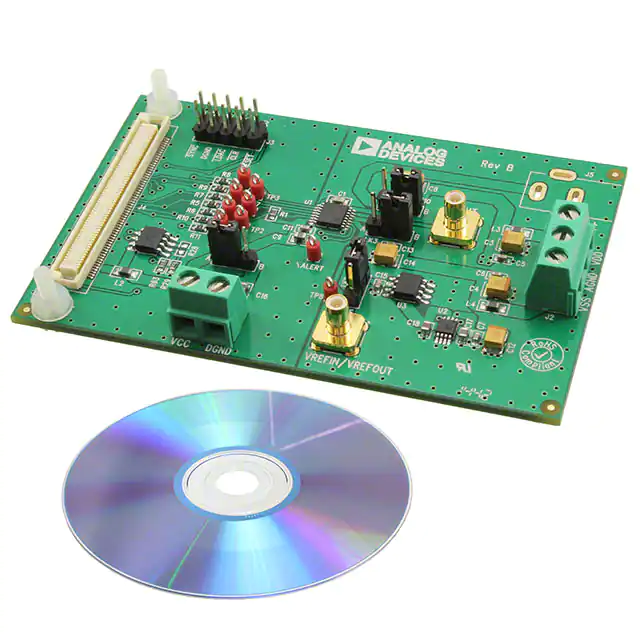

EVAL-AD5761RSDZEVAL BOARD FOR AD5761R |
1,643 |
|
Datasheet |
- | Box | Active | 1 | 16 | - | Serial | 9 µs | Voltage | AD5761R | Board(s) |
|

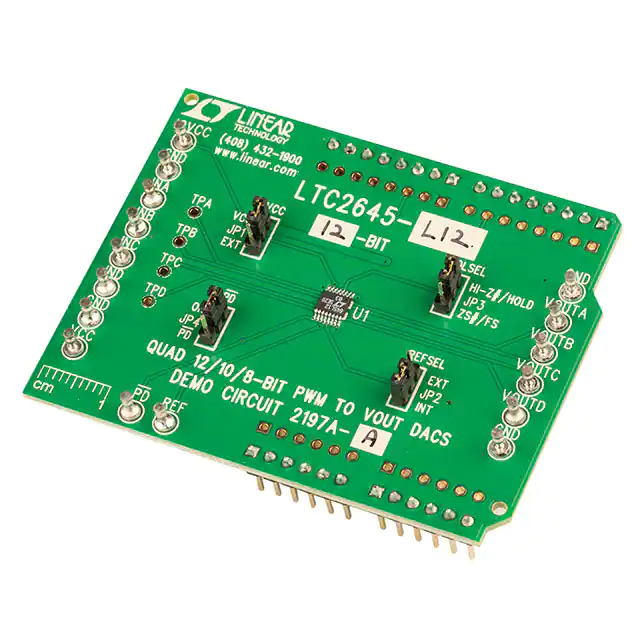

DC2197A-AEVAL BOARD FOR LTC2645-L12 |
4,101 |
|
Datasheet |
- | Box | Active | 4 | 12 | - | - | 7.8 µs | Voltage | LTC2645-L12 | Board(s) |
|

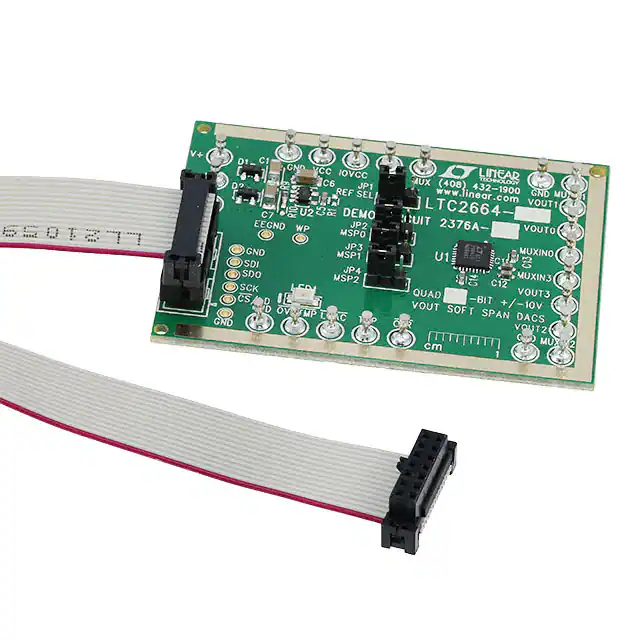

DC2376A-AEVAL BOARD FOR LTC2664-16 |
4,505 |
|
Datasheet |
SoftSpan™ | Box | Active | 4 | 16 | - | SPI | 20 µs | Voltage | LTC2664-16 | Board(s) |
|
EVAL-AD5679RSDZEVAL BOARD FOR AD5679R |
2,016 |
|
Datasheet |
nanoDAC+® | Box | Active | 16 | 16 | - | Serial, SPI | 6 µs | Voltage | AD5679R | Board(s) |
|

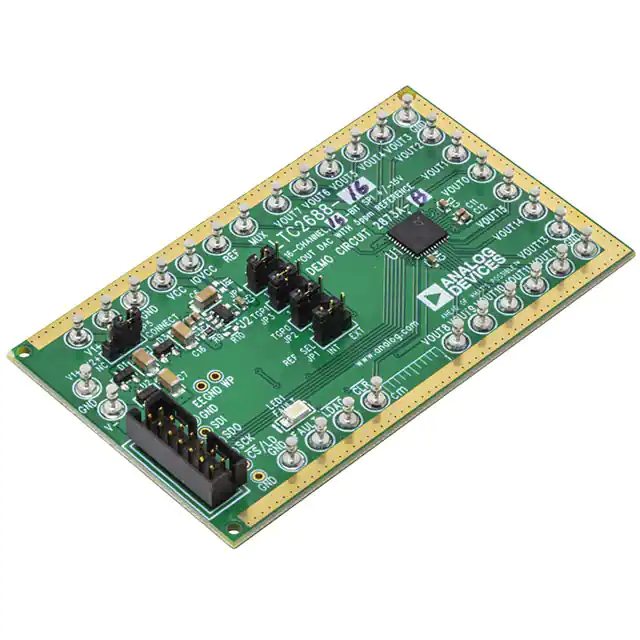

DC2873A-BEVAL BOARD FOR LTC2688 |
4,998 |
|
Datasheet |
- | Bulk | Active | 16 | 16 | - | MICROWIRE™, Serial, SPI™ | 28 µs | Voltage | LTC2688 | Board(s) |
