Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

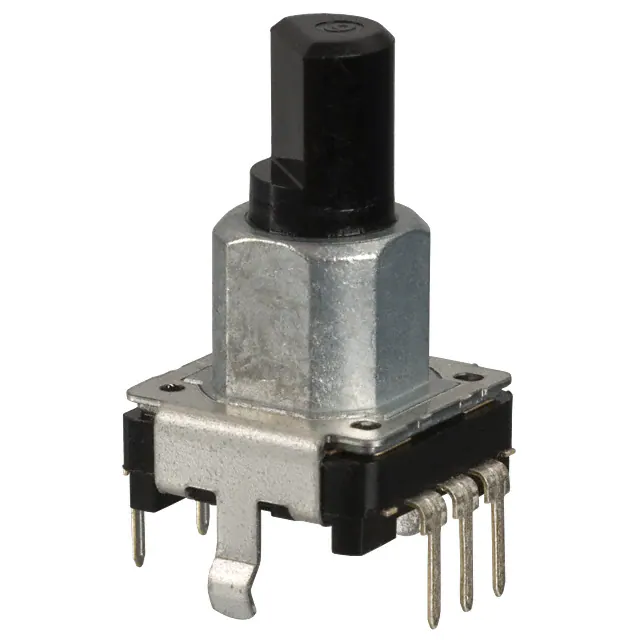

EVE-JBBF2020BROTARY ENCODER MECHANICAL 20PPR |
2,796 |
|
Datasheet |
EVEJB | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

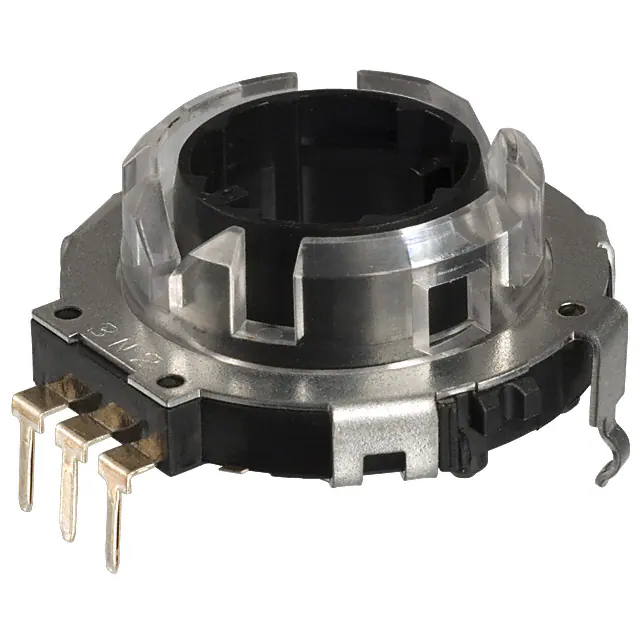

EVQ-1WF00210BROTARY ENCODER MECHANICAL 20PPR |
4,787 |
|
Datasheet |
- | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 22mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
NSE10DH129ROTARY ENCODER MECHANICAL 12PPR |
2,545 |
|
Datasheet |
NSE10 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | - | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 100K | - | - |
|

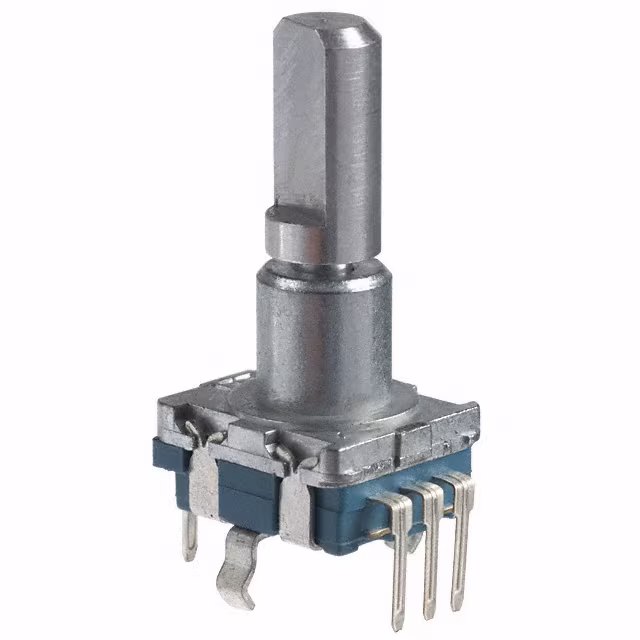

NSE11DV57NCF215AROTARY ENCODER MECHANICAL 15PPR |
1,367 |
|
Datasheet |
NSE11 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
NSE11DV57NCF220AROTARY ENCODER MECHANICAL 20PPR |
2,201 |
|
Datasheet |
NSE11 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

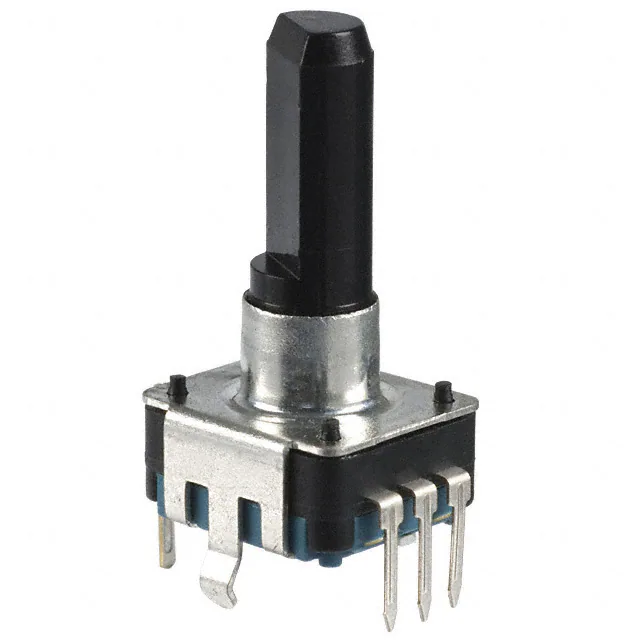

NSE12DSV1225ROTARY ENCODER MECHANICAL 12PPR |
1,905 |
|
Datasheet |
NSE12 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

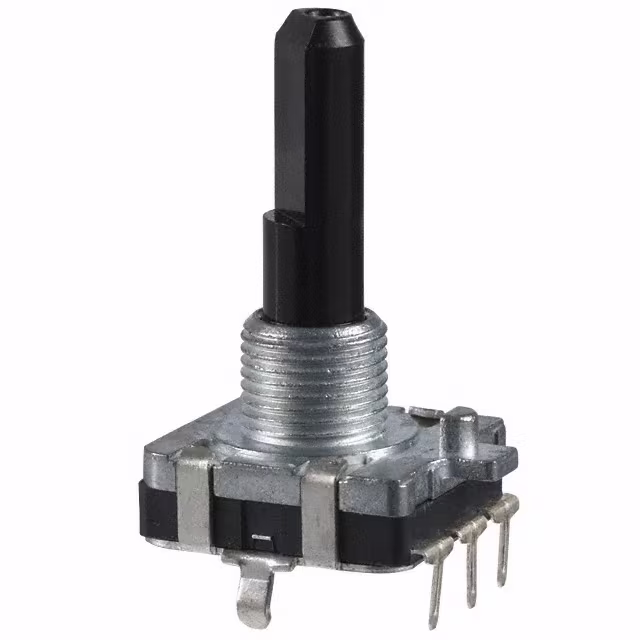

NSE16DV2431ROTARY ENCODER MECHANICAL 24PPR |
1,919 |
|
Datasheet |
NSE16 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
PEC12-4130F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,883 |
|
Datasheet |
PEC12 | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

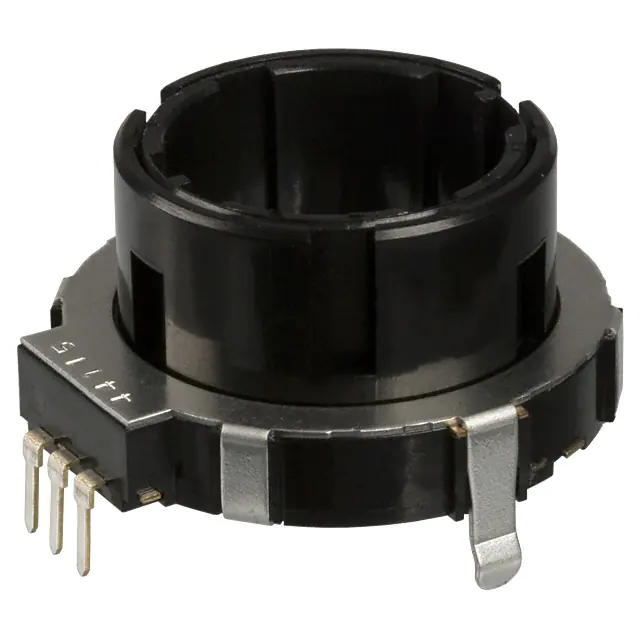

EVQ-WFP00415BROTARY ENCODER MECHANICAL 15PPR |
3,659 |
|
- |
EVQWF | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 16.5mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

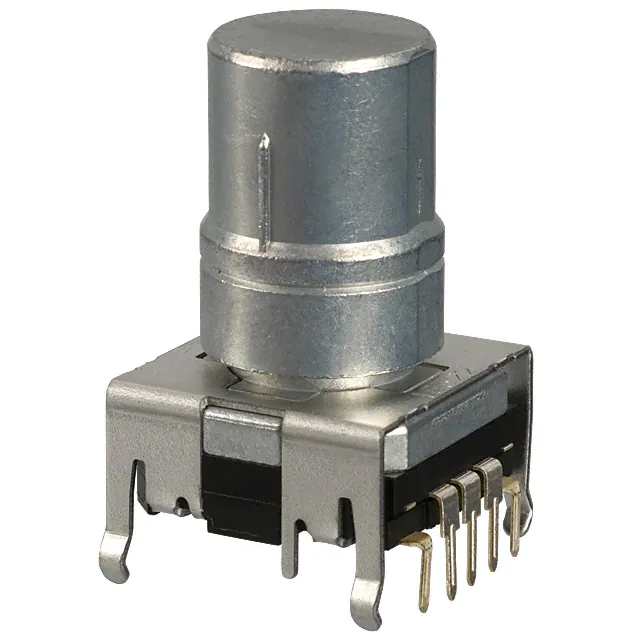

EVE-PDBRL408BROTARY ENCODER MECHANICAL 8PPR |
4,645 |
|
Datasheet |
EVEP | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

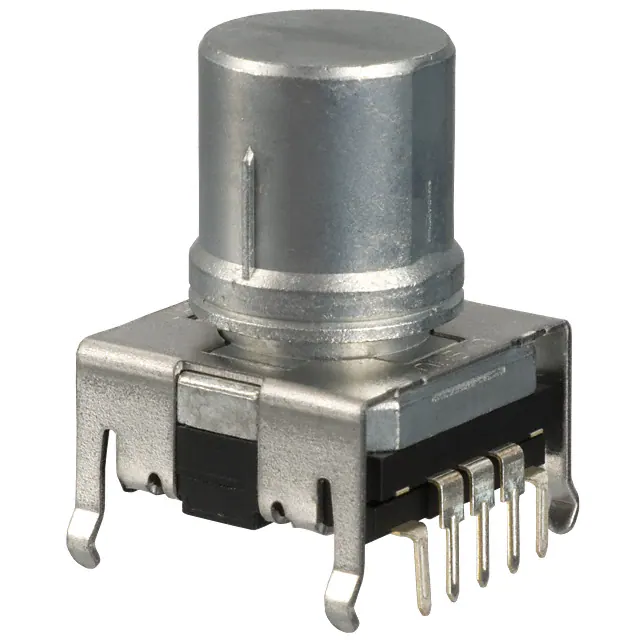

EVE-QDBRG516BROTARY ENCODER MECHANICAL 16PPR |
3,251 |
|
Datasheet |
EVEQ | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-QDBRL416BROTARY ENCODER MECHANICAL 16PPR |
1,317 |
|
Datasheet |
EVEQ | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

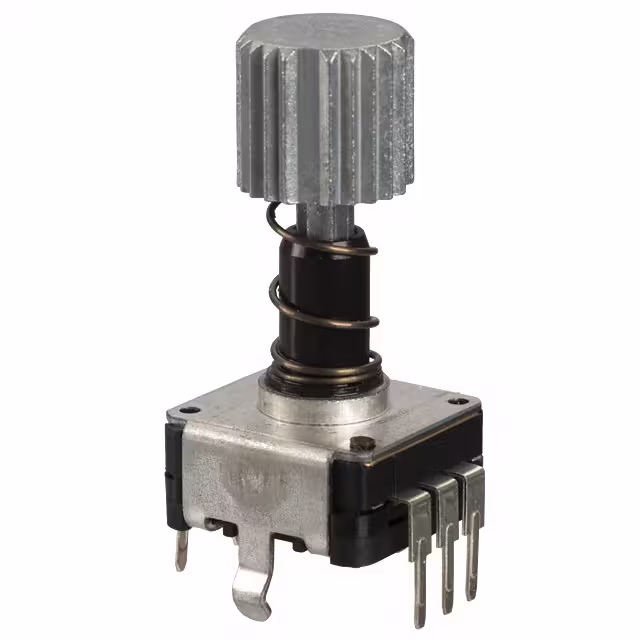

EVQ-WEB00115BROTARY ENCODER MECHANICAL 15PPR |
3,836 |
|
Datasheet |
EVQWEB | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 9mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

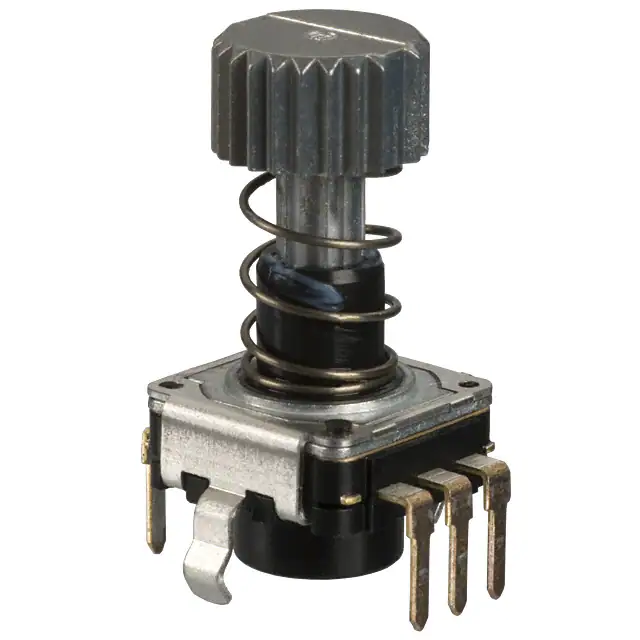

EVQ-WEH00115BROTARY ENCODER MECHANICAL 15PPR |
2,226 |
|
- |
EVQWEH | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 9mm Dia Knurled End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

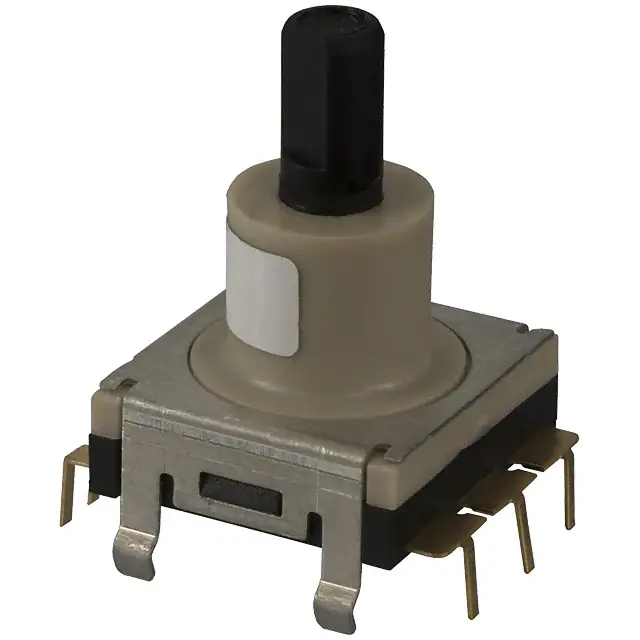

62P22-H0ROTARY ENCODER OPTICAL 16PPR |
2,626 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 3/16" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-H4ROTARY ENCODER OPTICAL 16PPR |
1,449 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 3/16" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-H6ROTARY ENCODER OPTICAL 16PPR |
2,370 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 3/16" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-L0ROTARY ENCODER OPTICAL 16PPR |
2,501 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 3/16" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-L4ROTARY ENCODER OPTICAL 16PPR |
4,395 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 3/16" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
|
|
62P22-L6ROTARY ENCODER OPTICAL 16PPR |
1,474 |
|
Datasheet |
62P | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 3/16" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 500K | - | - |
