Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15T-02SA-0100NV1RHV-M001.5" DIA INCREMENTAL ENCODER 3/8 |
3,195 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 100 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-1000NV1RHV-M001.5" DIA INCREMENTAL ENCODER 8MM |
1,496 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1000 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-0500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 8MM |
4,893 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-01SA-1000NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
2,980 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 1000 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-19M6-0100NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
3,222 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 100 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-01SA-0600NV1RHV-M001.5" DIA INCREMENTAL ENCODER 1/4 |
2,169 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 600 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-20M8-0500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
4,179 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 500 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-04SA-1000NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
1,391 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1000 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-02SA-0200NV1RHV-M001.5" DIA INCREMENTAL ENCODER 3/8 |
1,417 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 200 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-0100NV1RHV-M001.5" DIA INCREMENTAL ENCODER 8MM |
1,911 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 100 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15S-19M6-0600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
4,305 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 600 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-04SA-0600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
2,794 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 600 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-0100NV1ROC-M001.5" DIA INCREMENTAL ENCODER 8MM |
4,053 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 100 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-20M1-1024NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
2,884 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 1024 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M8-0100NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,261 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 100 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-04SA-1024NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
4,653 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1024 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-0500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 8MM |
2,481 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|

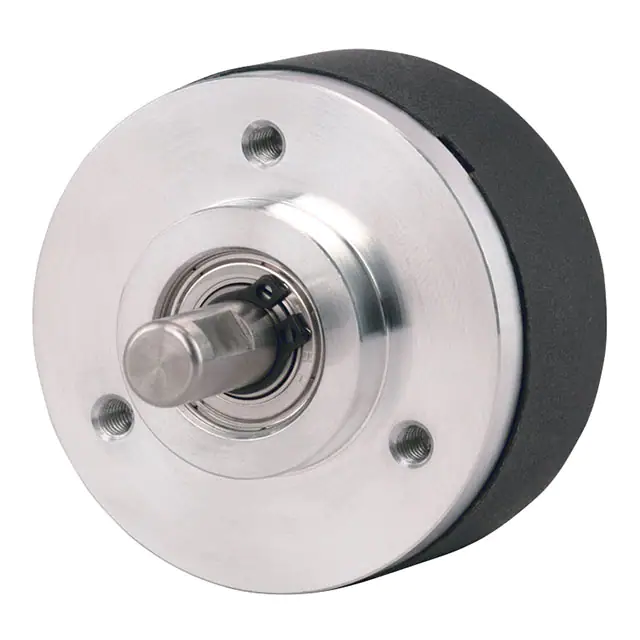

15S-19M1-0200NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,450 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 200 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-20M8-0100NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
2,806 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 100 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-01SA-0600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
4,680 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 600 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
