Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC09-2015F-N0012ROTARY ENCODER MECHANICAL 12PPR |
4,242 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC09-2015F-N0015ROTARY ENCODER MECHANICAL 15PPR |
2,389 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC09-2025F-N0015ROTARY ENCODER MECHANICAL 15PPR |
2,216 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC09-2115K-N0012ROTARY ENCODER MECHANICAL 12PPR |
2,916 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC09-2215K-N0012ROTARY ENCODER MECHANICAL 12PPR |
2,934 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC09-2215F-N0012ROTARY ENCODER MECHANICAL 12PPR |
4,920 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEL12S-2224S-N5024ENCODER |
2,799 |
|
Datasheet |
PEL12S | Tray | Active | - | Mechanical | Quadrature, 2-Bit | 24 | - | 6mm Dia Knurled End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

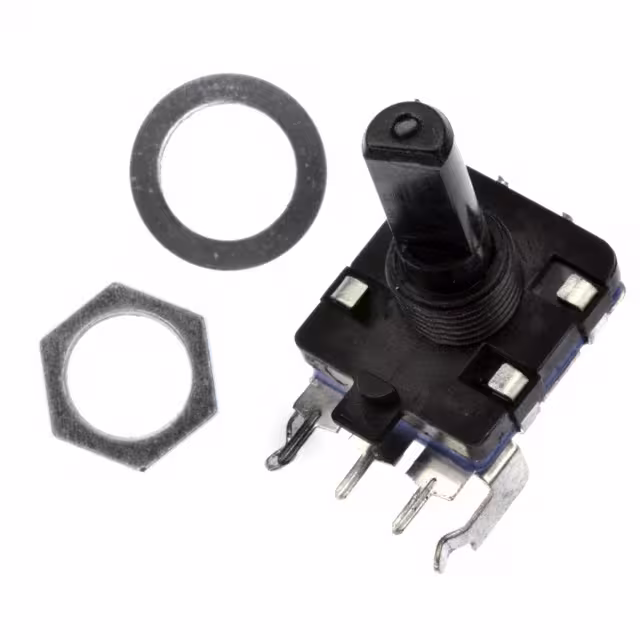

ACZ16NBR1E-20FA1-12CROTARY ENCODER INCREMENT 12PPR |
2,235 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

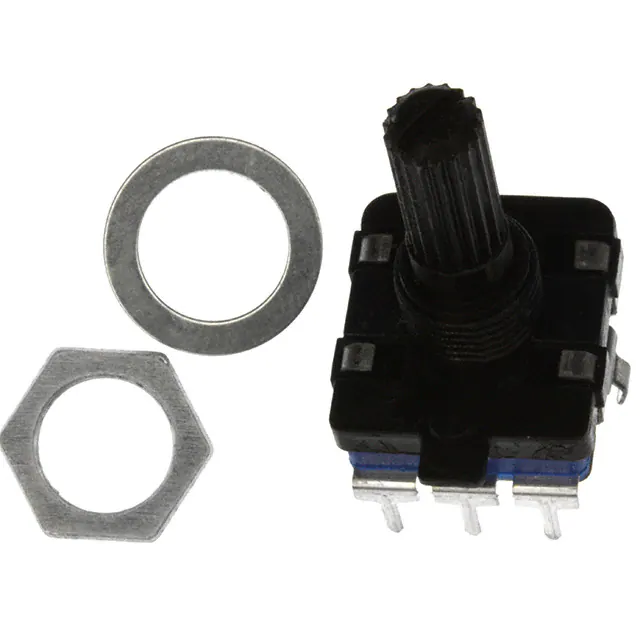

ACZ16NBR1E-20KQD1-24CROTARY ENCODER INCREMENT 24PPR |
1,778 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ACZ16BR1E-20FA1-24CROTARY ENCODER INCREMENT 24PPR |
1,185 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Horizontal | PC Pin | 100K | - | - |
|
|
EN16ABVM22B1F30ABSOLUTE ENCODER |
3,592 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABVM22B1F35ABSOLUTE ENCODER |
1,405 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABVM22B1F25ABSOLUTE ENCODER |
3,252 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABVM22B2F30ABSOLUTE ENCODER |
3,042 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABVM22B0F30ABSOLUTE ENCODER |
4,458 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABHM22B1F25ABSOLUTE ENCODER |
4,161 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABHM22B2F20ABSOLUTE ENCODER |
2,433 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABHM22B1F30ABSOLUTE ENCODER |
2,682 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABHM22B1F35ABSOLUTE ENCODER |
1,113 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EN16ABHM22B0F15ABSOLUTE ENCODER |
4,520 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
