Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30142483SWITCH ESTOP PULL RESET 10A 500V |
2,220 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | 500 V | 500 V | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
|
A6X30142482SWITCH ESTOP PULL RESET 10A 500V |
1,179 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | 500 V | 500 V | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
SSA-EB1P-02ED1Q5ASW ESTOP PULL/TWIST RESET 2A 30V |
2,235 |
|
- |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | DPST-NC | On-Off | - | 2A (DC) | - | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1P-02ED1Q5BSW ESTOP PULL/TWIST RESET 2A 30V |
2,641 |
|
- |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | DPST-NC | On-Off | - | 2A (DC) | - | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1P-11ECQ4SW ESTOP PULL/TWIST RESET 2A 30V |
1,499 |
|
- |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | DPST-NO/NC | On-Off, Off-On | - | 2A (DC) | - | 30 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1P-02ECQ4CSW ESTOP PULL/TWIST RESET 2A 30V |
2,574 |
|
- |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 2A (DC) | - | 30 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
A6X30142488SWITCH ESTOP PULL RESET 10A 500V |
3,373 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | - | 10A (AC/DC) | 500 V | 500 V | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
|
XW1E-BV4Z10C1RSWITCH E-STOP 22MM |
4,145 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A22NE-MP-PD04-N-69KSWITCH E-STOP PULL RESET 5A 125V |
1,604 |
|
Datasheet |
A22NE-PD | Bulk | Active | Panel Mount, Front | Pull | 4PST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -20°C ~ 70°C | - |
|
|
XN5E-TV412Q4MRSW ESTOP PULL/TWST RESET 5A 125V |
2,585 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Illuminated (Red), Padlock Style | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
|
XN5E-TV403Q4MRSW ESTOP PULL/TWST RESET 5A 125V |
3,115 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Pull or Twist | 3PST-NC | On-Off | Illuminated (Red), Padlock Style | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
1.11.031.001/0000SW E-STOP TWIST RESET 100MA 35V |
2,822 |
|
Datasheet |
RAMO 30 E | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 100mA (DC) | - | 35 V | Circular - 30.30mm Dia | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
|

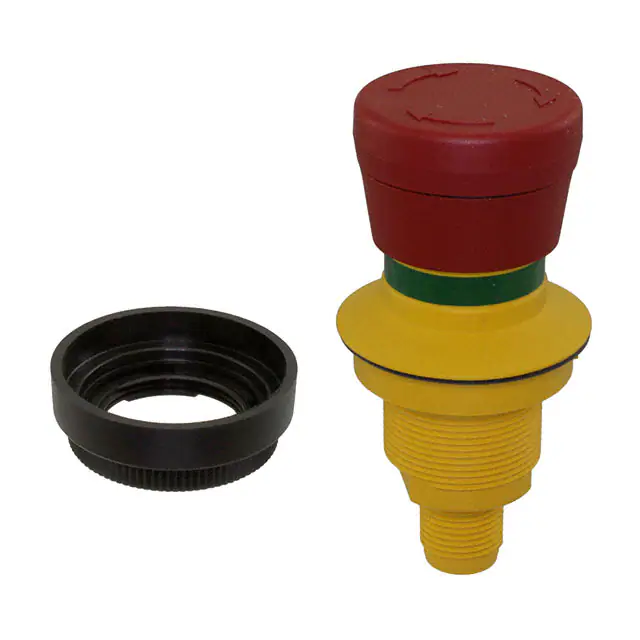

1.11.031.011/0000SW E-STOP TWIST RESET 100MA 35V |
3,762 |
|
Datasheet |
RAMO 30 E | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 100mA (DC) | - | 35 V | Circular - 30.30mm Dia | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
|
XN4E-BL403MFRHSWITCH ESTOP TWIST RESET 5A 125V |
1,347 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
XN4E-BL403MRSWITCH ESTOP TWIST RESET 5A 125V |
2,450 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
XN4E-BL412MRSWITCH ESTOP TWIST RESET 5A 125V |
3,208 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
XN4E-LL411Q4MRSWITCH ESTOP TWIST RESET 5A 125V |
3,693 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
|
XN4E-LL401Q4MRSWITCH ESTOP TWIST RESET 5A 125V |
3,840 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
|
XN4E-LL402Q4MRSWITCH ESTOP TWIST RESET 5A 125V |
3,120 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
|
SSA-EB2P-02ECQ5BSW ESTOP PULL/TWIST RESET 2A 24V |
3,081 |
|
- |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
