Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XN4E-TL403Q4MRSWITCH ESTOP TWIST RESET 5A 125V IDEC |
139 |
|
Datasheet |
XN | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | Illuminated (Red), Padlock Style | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
XW1E-BV422M-RSW ESTOP PULL/TWST RESET 5A 125V IDEC |
2,377 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-2NO/2NC | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|

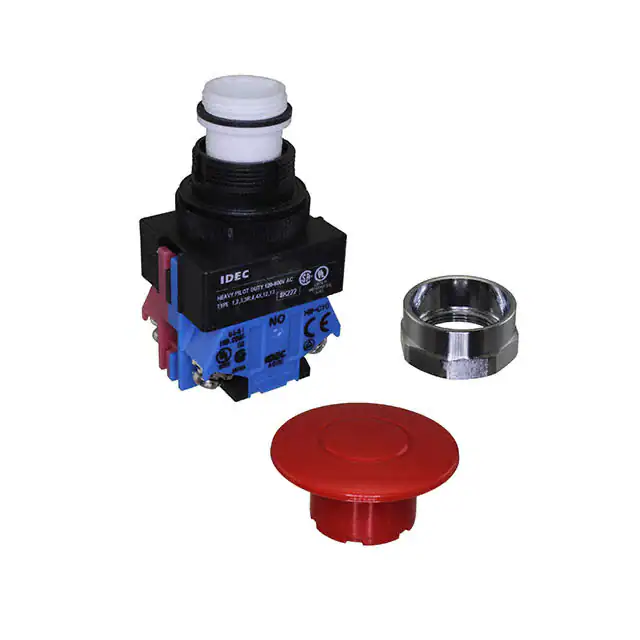

AYW411-RSWITCH ESTOP PULL RESET 10A 110V IDEC |
2,326 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | - | 10A (AC), 8A (DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | - |
|
HW1B-V4F01-RSW E-STOP TWIST RESET 10A 110V IDEC |
2,798 |
|
Datasheet |
HW | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 10A (AC), 8A (DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | - |
|
|
XW1E-TV412Q4M-RSW ESTOP PULL/TWST RESET 5A 125V IDEC |
3,238 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Illuminated (Red) | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
|
XW1E-BV411M-RSW ESTOP PULL/TWST RESET 5A 125V IDEC |
1,454 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NO/NC | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
AB6E-3BV02PTRHSW ESTOP PULL/TWST RESET 5A 125V IDEC |
2,099 |
|
Datasheet |
X6 | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
XA1E-BV302-RSWITCH ESTOP TWIST RESET 3A 125V IDEC |
3,247 |
|
Datasheet |
XA | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 3A (AC), 2A (DC) | 125 V | 30 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
XA1E-BV3U01T-RSW ESTOP PULL/TWST RESET 3A 125V IDEC |
3,086 |
|
Datasheet |
XA | Bulk | Active | Panel Mount, Front | Pull or Twist | SPST-NC | On-Off | - | 3A (AC), 2A (DC) | 125 V | 30 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
|
XW1E-LV404Q4M-RSW ESTOP PULL/TWST RESET 5A 125V IDEC |
4,132 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-NC | On-Off | Illuminated (Red) | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
