CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7256BFI256-7IC CPLD 256MC 7.5NS 256FBGA |
3,661 |
|
Datasheet |
MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 164 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|

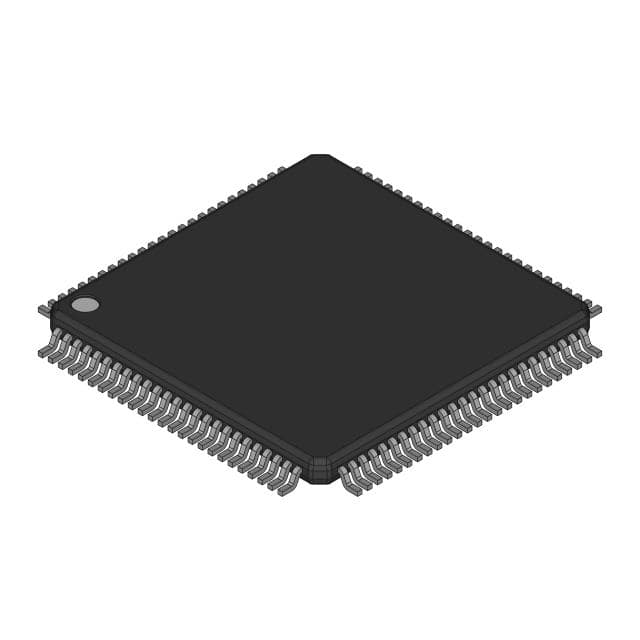

EPM7256BTC100-10IC CPLD 256MC 10NS 100TQFP |
3,994 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BTC100-10NIC CPLD 256MC 10NS 100TQFP |
3,987 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BTC100-5IC CPLD 256MC 5NS 100TQFP |
2,951 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256BTC100-5NIC CPLD 256MC 5NS 100TQFP |
1,798 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256BTC100-7IC CPLD 256MC 7.5NS 100TQFP |
3,136 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256BTC100-7NIC CPLD 256MC 7.5NS 100TQFP |
1,286 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BTC144-10IC CPLD 256MC 10NS 144TQFP |
4,024 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-10NIC CPLD 256MC 10NS 144TQFP |
3,260 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-5IC CPLD 256MC 5NS 144TQFP |
3,229 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-5NIC CPLD 256MC 5NS 144TQFP |
1,364 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-7IC CPLD 256MC 7.5NS 144TQFP |
4,135 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-7NIC CPLD 256MC 7.5NS 144TQFP |
3,584 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTI100-7NIC CPLD 256MC 7.5NS 100TQFP |
4,514 |
|
Datasheet |
MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BUC169-10IC CPLD 256MC 10NS 169UBGA |
2,819 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
EPM7256BUC169-10NIC CPLD 256MC 10NS 169UBGA |
3,554 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7256BUC169-5IC CPLD 256MC 5NS 169UBGA |
4,315 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7256BUC169-7IC CPLD 256MC 7.5NS 169UBGA |
1,911 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7256BUC169-7NIC CPLD 256MC 7.5NS 169UBGA |
3,614 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
EPM7256EGC192-12IC CPLD 256MC 12NS 192PGA |
3,334 |
|
Datasheet |
MAX® 7000 | 192-BPGA | Tray | Obsolete | Not Verified | EE PLD | 12 ns | 4.75V ~ 5.25V | 16 | 256 | 5000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 192-PGA (44.7x44.7) |
