DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KJ01RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,202 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ01RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,956 |
|
Datasheet |
KJ | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KJ01EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,174 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ04EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,005 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ04RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,502 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

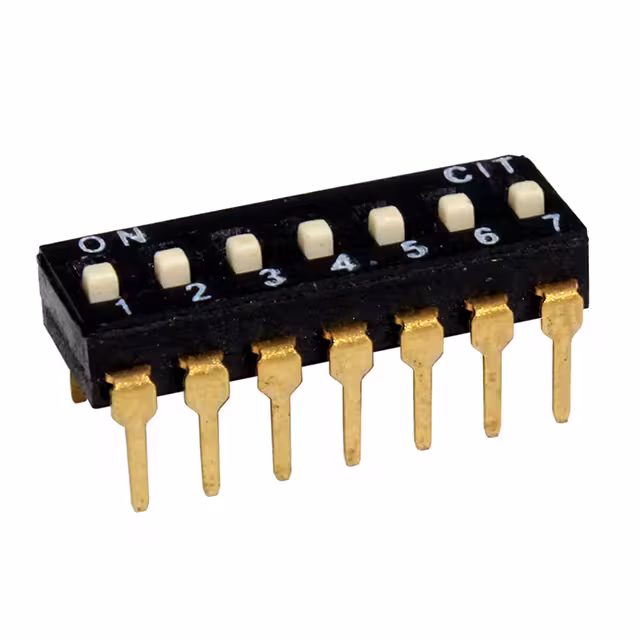

KT07ETHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,713 |
|
Datasheet |
KT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

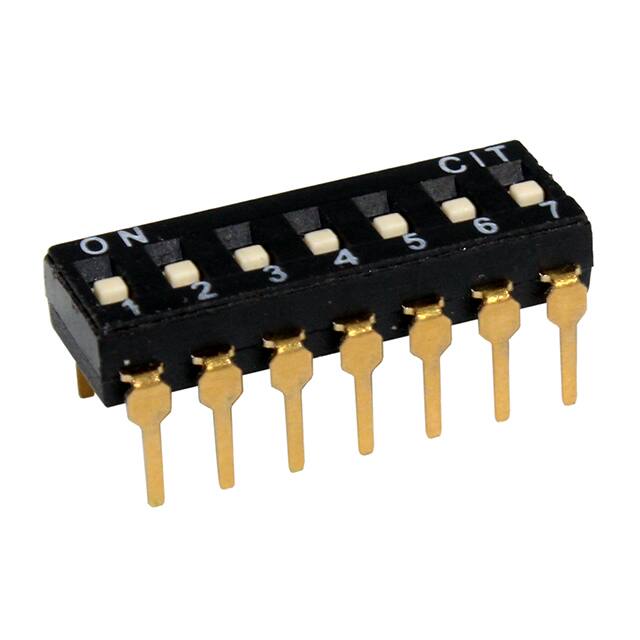

KT07RTHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,093 |
|
Datasheet |
KT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP06ETSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
2,411 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP06RTSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
3,176 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KJ05EXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,344 |
|
Datasheet |
KJ | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
