DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

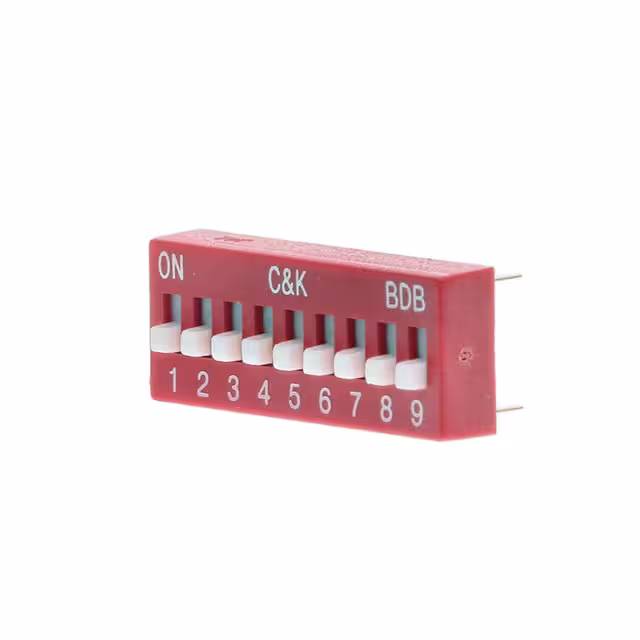

BDB09SWITCH SLIDE DIP SPST 0.025A 25V |
2,557 |
|
- |
BDB | Tube | Obsolete | SPST | 9 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DHS10-ASWITCH SLIDE DIP SPST 0.025A 24V |
3,297 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
DHS8-ASWITCH SLIDE DIP SPST 0.025A 24V |
3,816 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
DHS4-ASWITCH SLIDE DIP SPST 0.025A 24V |
4,188 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
DHS6-ASWITCH SLIDE DIP SPST 0.025A 24V |
4,494 |
|
Datasheet |
DHS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
GDH08S04Slide Dip Switch, 8 Switches, SP |
4,904 |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FD02KC16P-RSWITCH DIP |
2,041 |
|
- |
FD02 | Cut Tape (CT) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.283" (7.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD02KC10P-RSWITCH DIP |
2,494 |
|
- |
FD02 | Cut Tape (CT) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.283" (7.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
5-1571999-9SWITCH PIANO DIP SPST 25MA 24V |
1,347 |
|
- |
ADPA | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
KR01ESWITCH SLIDE DIP SPST 0.025A 24V |
2,251 |
|
Datasheet |
KR | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KG01ESWITCH SLIDE DIP SPST 0.025A 24V |
2,218 |
|
Datasheet |
KG | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.260" (6.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
