DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

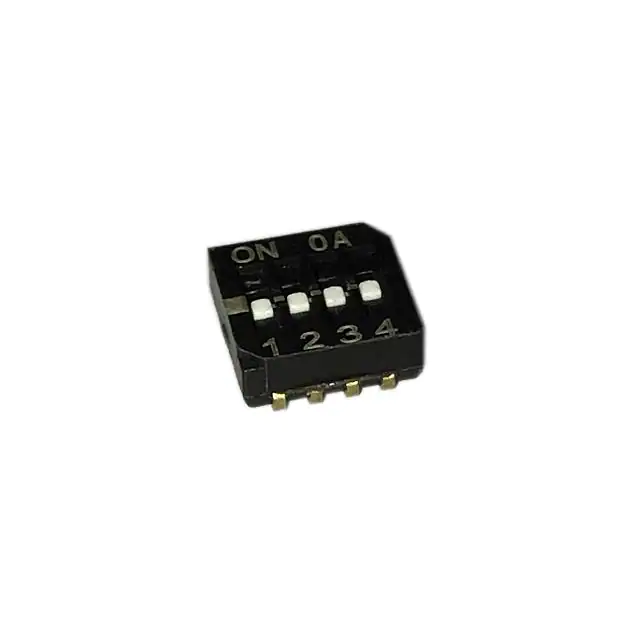

218-4LPSJFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,497 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

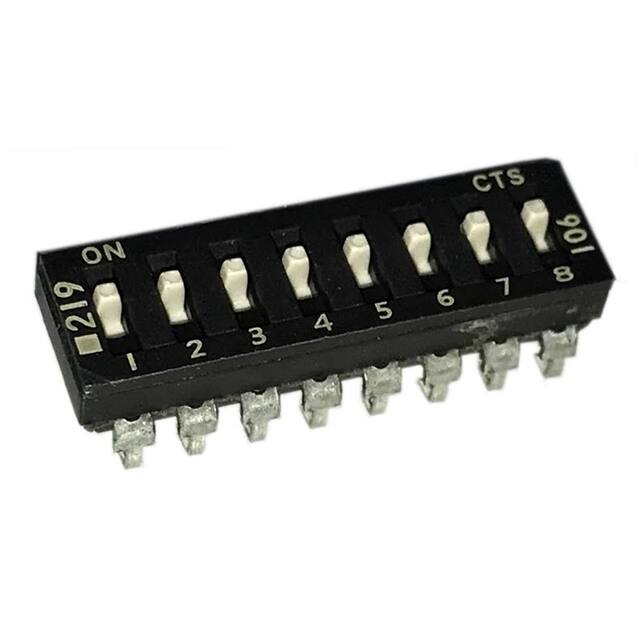

219-8ESJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,297 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

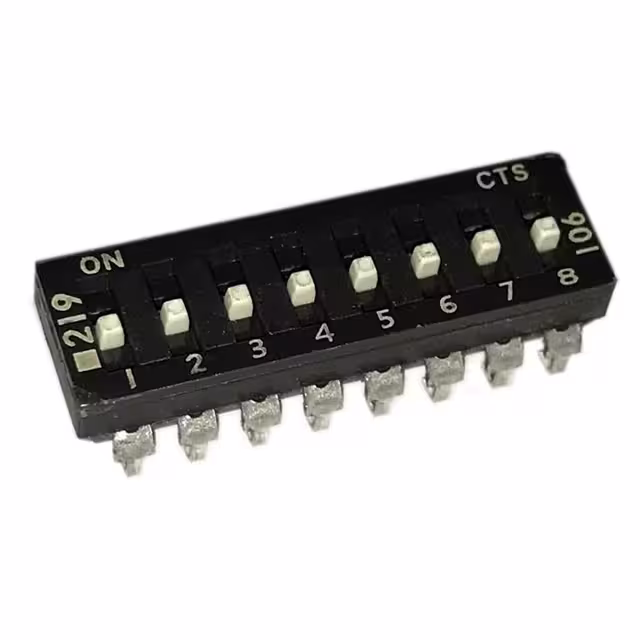

219-8ESJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,994 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

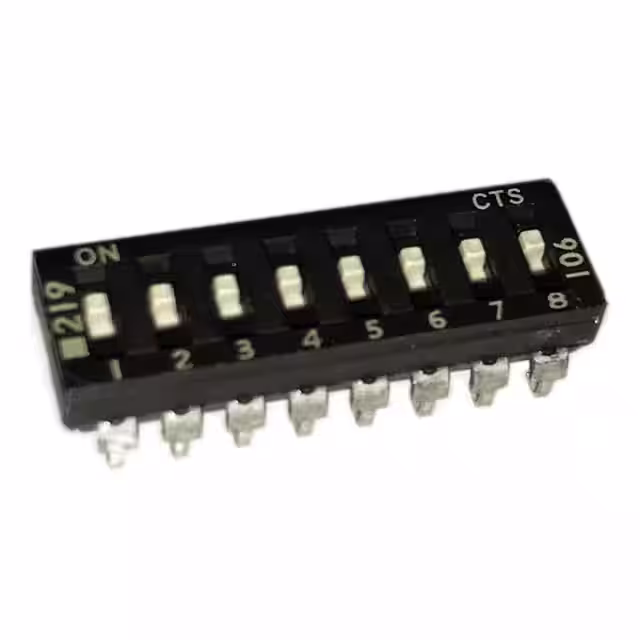

219-8LPSJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,078 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

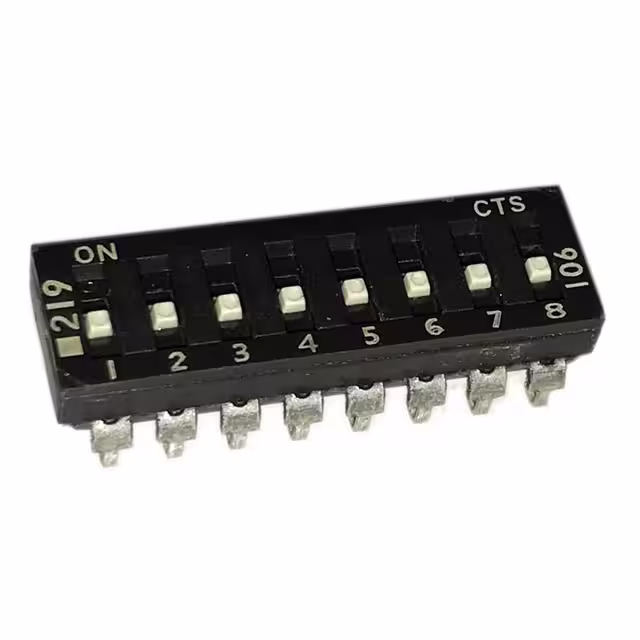

219-8LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,407 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

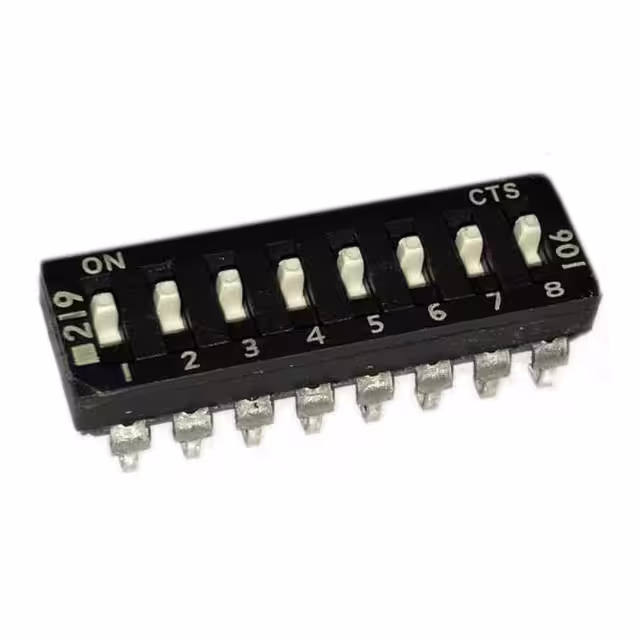

219-8MSJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,805 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

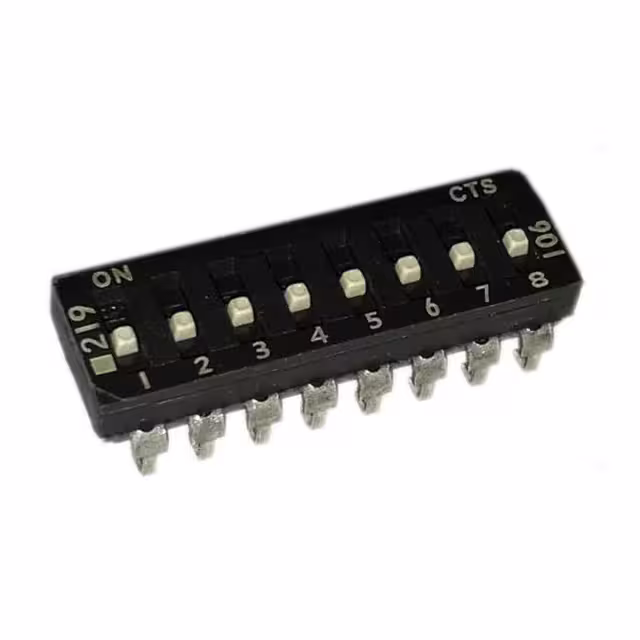

219-8MSJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,804 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
206-121RASWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,604 |
|
Datasheet |
206RA | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
219-10LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,609 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-10MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,236 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
