DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-8LPSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,589 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

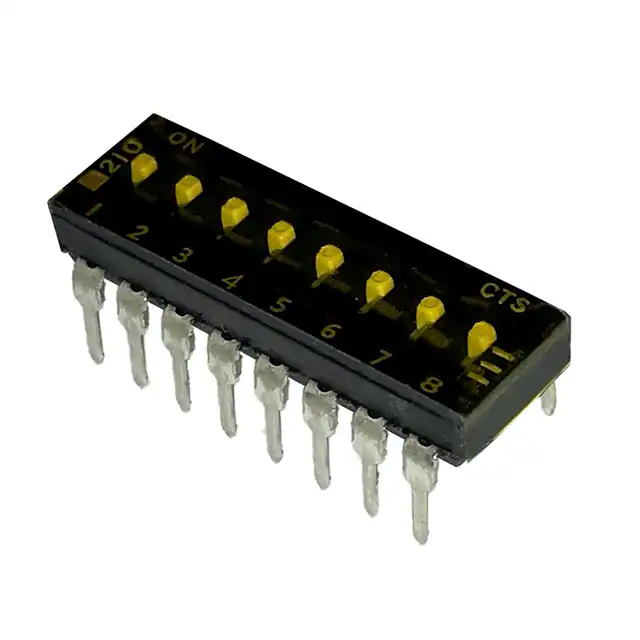

210-8MSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,048 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

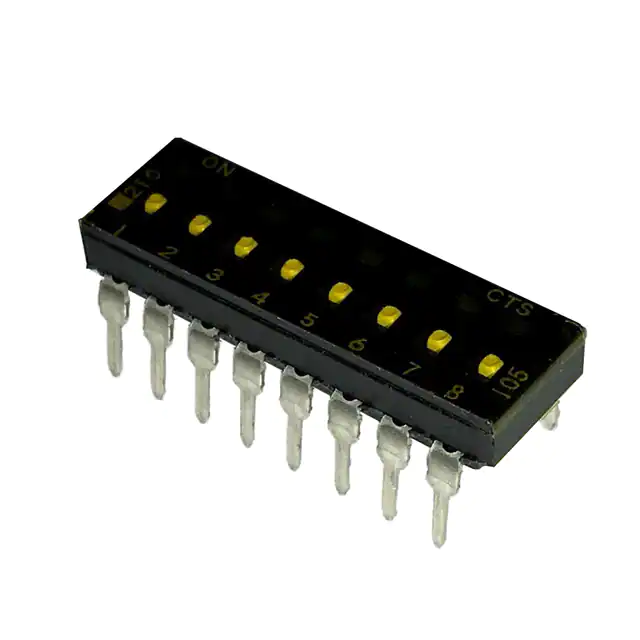

210-8LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,474 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
210-8MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,229 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
210-8LPSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,723 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

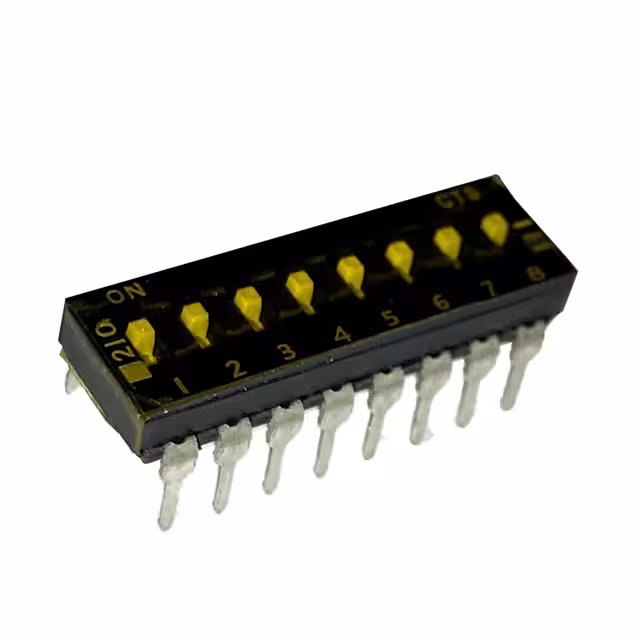

210-8MSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,930 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

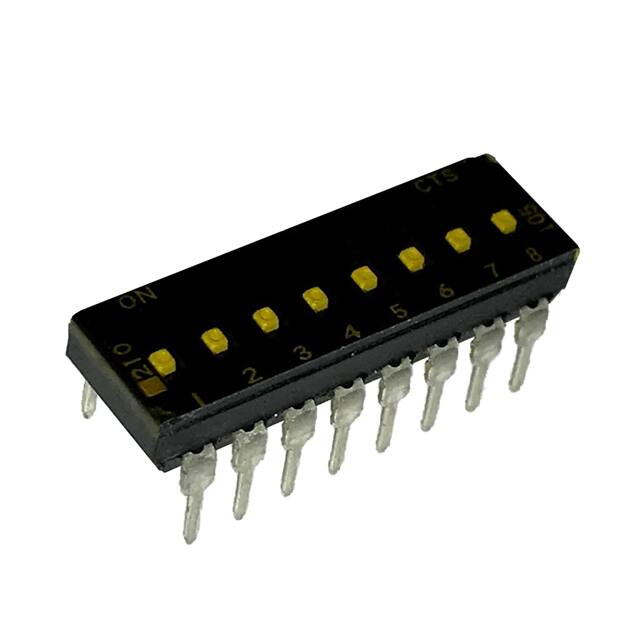

210-8LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,479 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

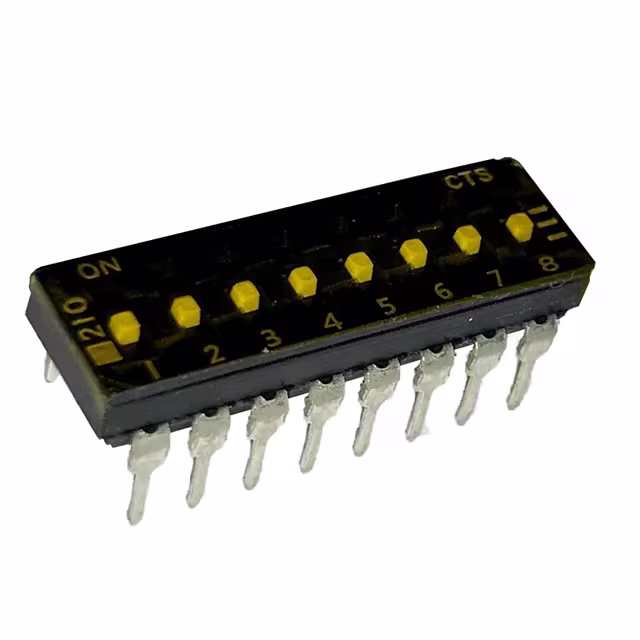

210-8MSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,605 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
208-7SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
4,913 |
|
Datasheet |
208 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

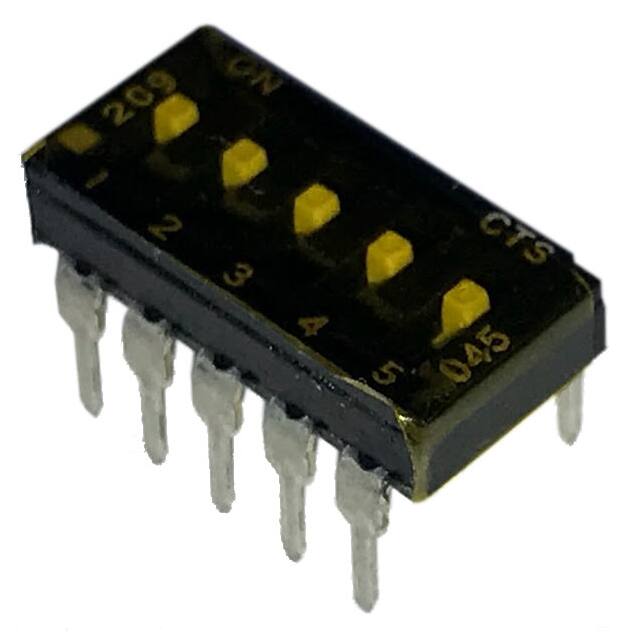

209-5MSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,340 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
