DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-9LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,904 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

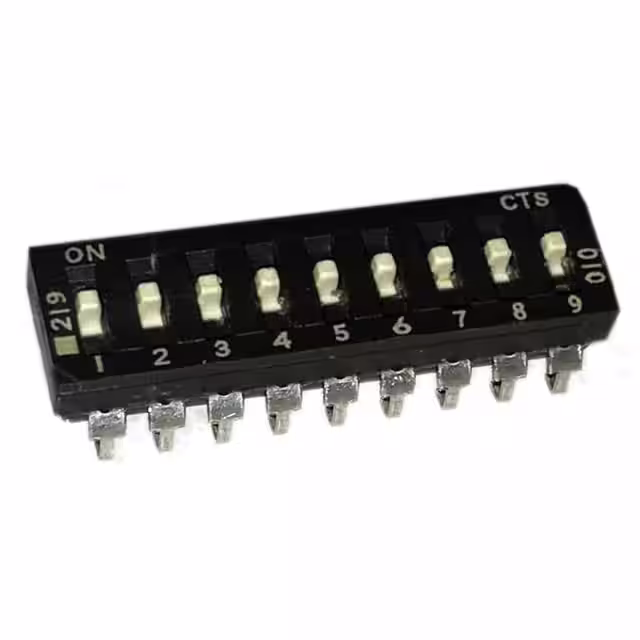

219-9MSJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,407 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

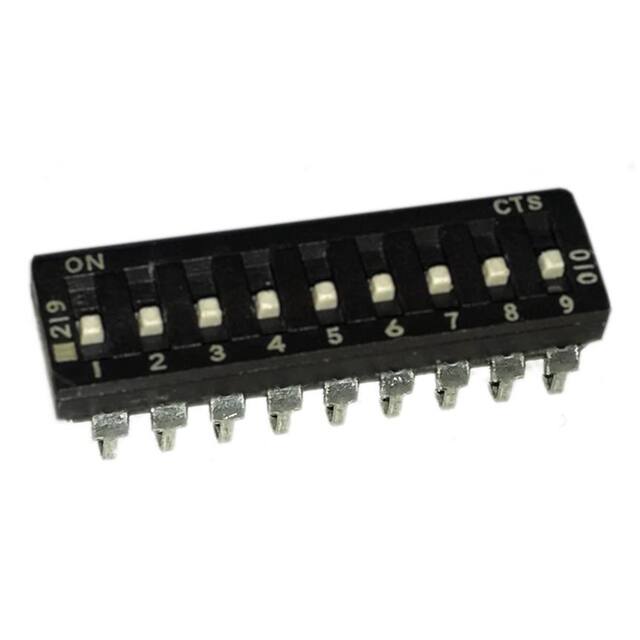

219-9MSJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,327 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
194-7MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,412 |
|
Datasheet |
194 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
194-7MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,081 |
|
Datasheet |
194 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

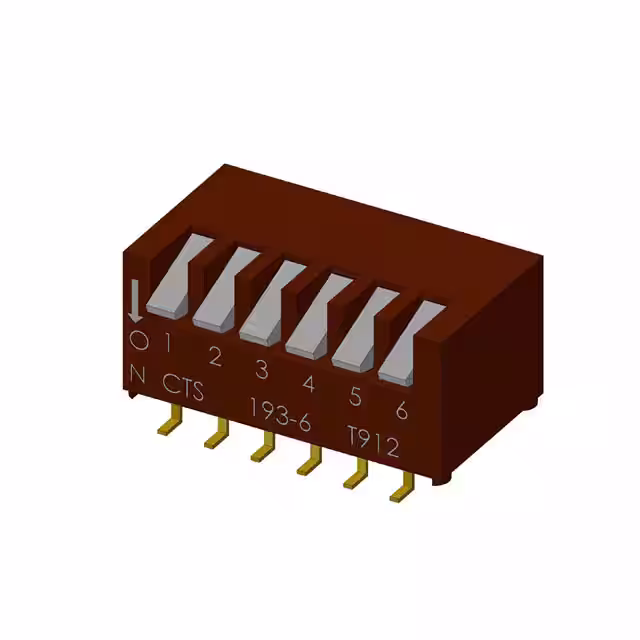

193-6MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,602 |
|
Datasheet |
193 | Tube | Active | SPST | 6 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

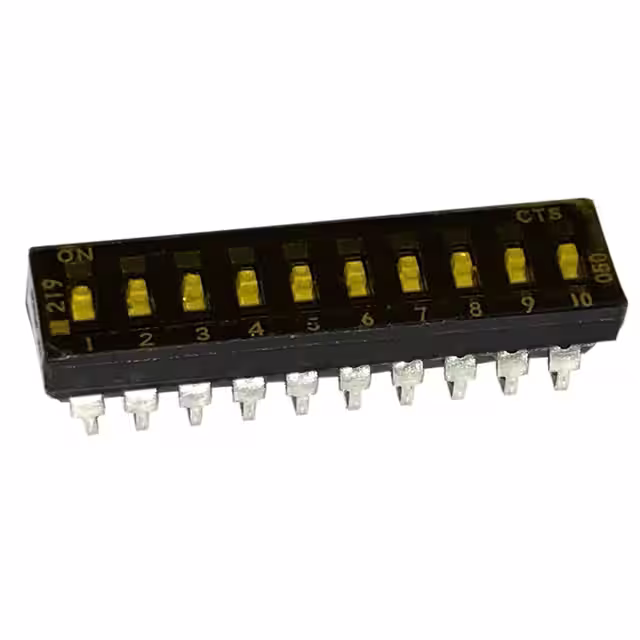

219-10LPSTJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,084 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-10LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,292 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-10MSTJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,207 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-10MSTJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,161 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
