DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

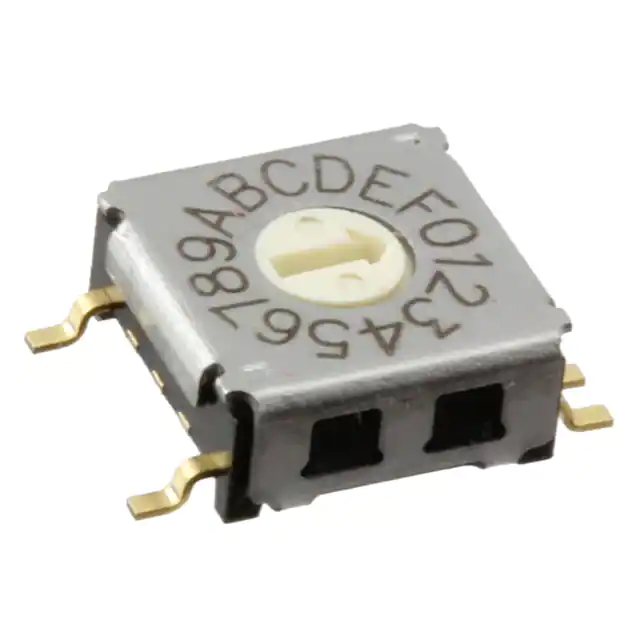

A6KS-164RF-R100SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
3,009 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

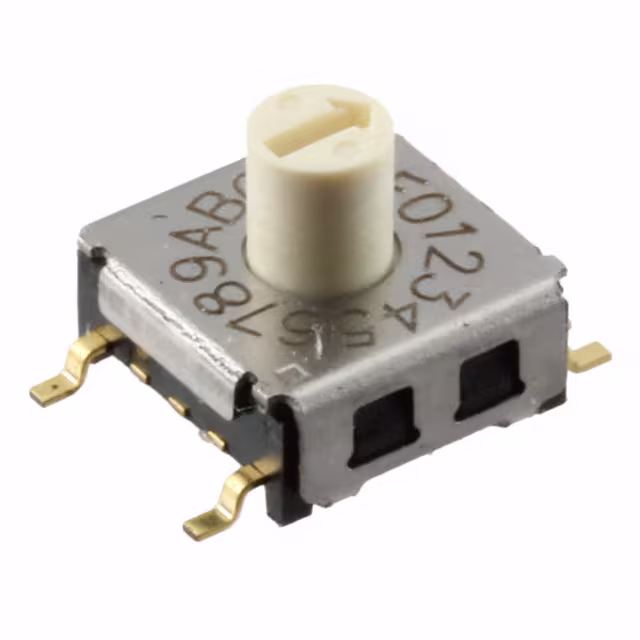

A6KS-164RS-R100SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
1,162 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

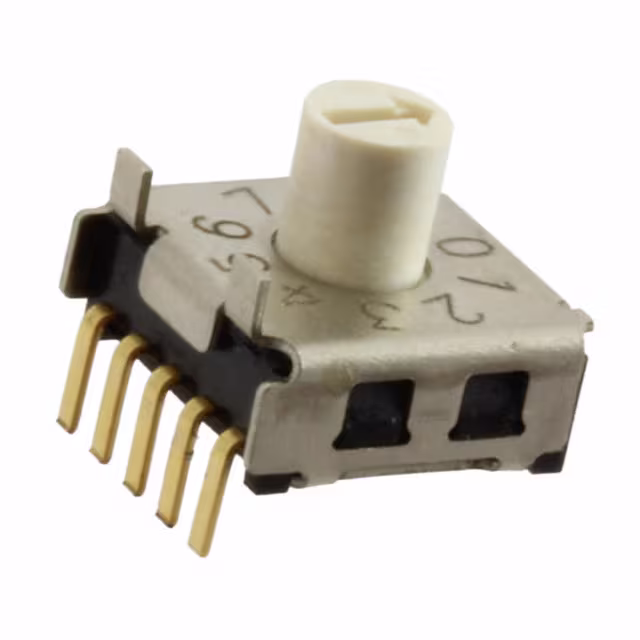

A6KSV-104RS-R100SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
3,784 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6D-9100SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
1,508 |
|
Datasheet |
A6D | Tube | Active | SPST | 9 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
|
A6D-9103SWITCH SLIDE DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
1,771 |
|
Datasheet |
A6D | Tube | Active | SPST | 9 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

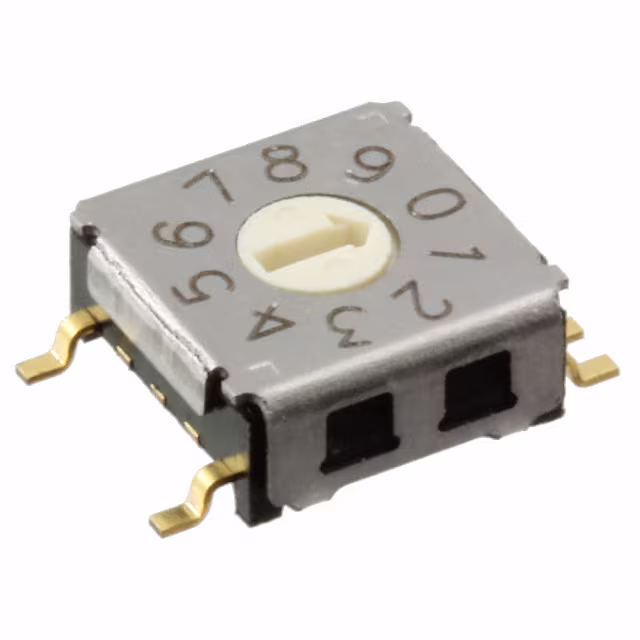

A6KS-104RF-R100SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
4,698 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

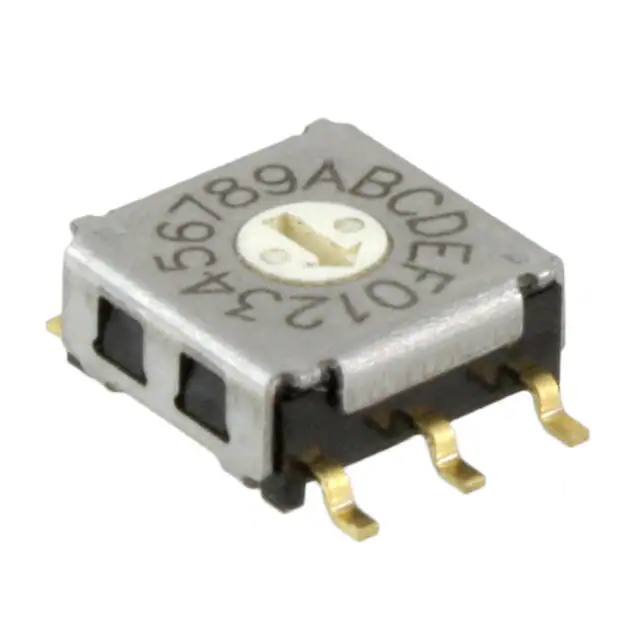

A6KS-162RF-R100SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
4,430 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|

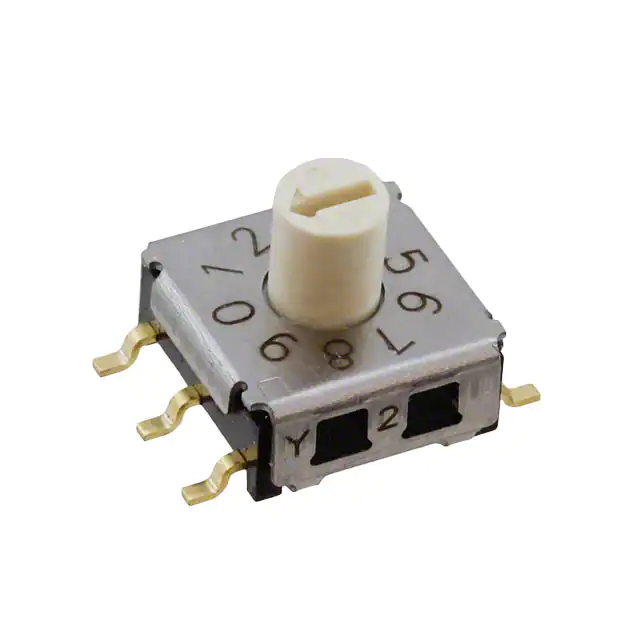

A6KS-102RS-R100SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
3,459 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|

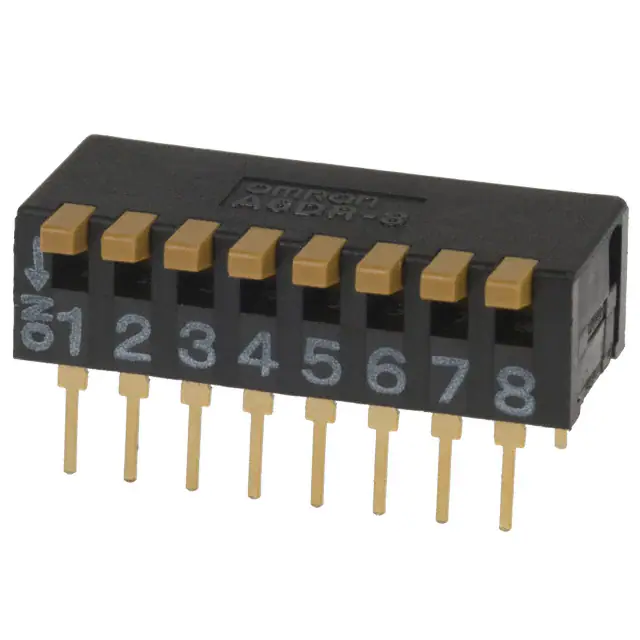

A6DR-8100-05SWITCH DIP Omron Electronics Inc-EMC Div |
2,891 |
|
Datasheet |
A6DR | Box | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A6S-2102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,079 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
