DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA10TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
3,168 |
|
Datasheet |
DA | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA10SWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
2,720 |
|
Datasheet |
DA | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA08TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
3,097 |
|
Datasheet |
DA | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA08SWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
2,324 |
|
Datasheet |
DA | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
TDS10SWITCH SLIDE DIP SPDT 0.025A 24V APEM Inc. |
1,332 |
|
- |
TDS | Tube | Obsolete | SPDT | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

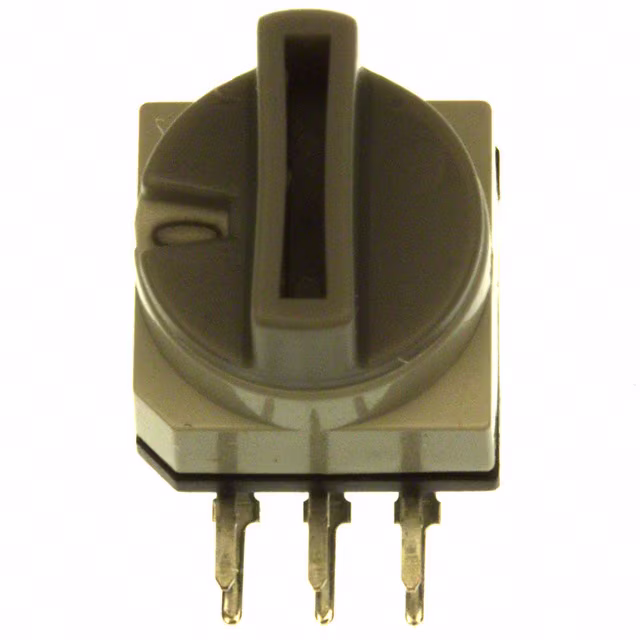

PT65526L254SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
2,686 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
NDA-04T-VSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
4,078 |
|
Datasheet |
NDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
NDA-04-VSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,966 |
|
Datasheet |
NDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
NDA-07T-VSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
2,599 |
|
Datasheet |
NDA | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
NDA-08T-VSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
4,095 |
|
Datasheet |
NDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
