DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPL04TSWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,659 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL04SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,458 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DPL03SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,314 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

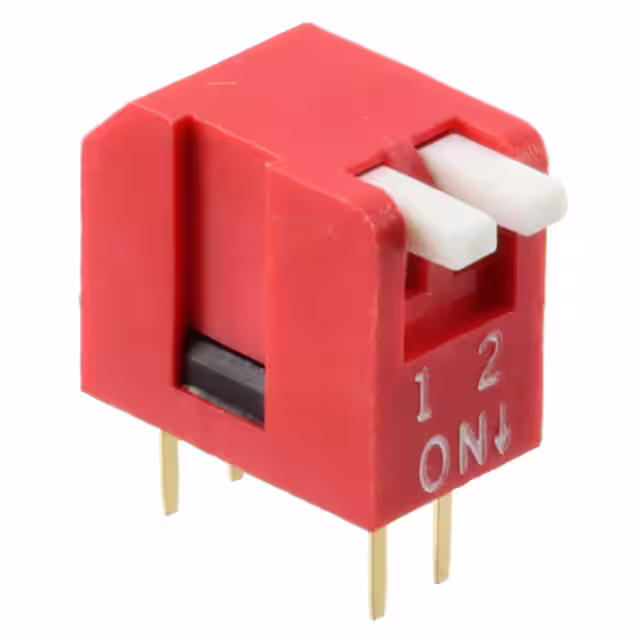

DPL02TSWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,198 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP08TSWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,048 |
|
Datasheet |
DP | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP10SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
4,644 |
|
Datasheet |
DP | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DPL06SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
3,079 |
|
Datasheet |
DPL | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP08SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
4,465 |
|
Datasheet |
DP | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP07SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
4,085 |
|
Datasheet |
DP | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP06SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
2,034 |
|
Datasheet |
DP | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
