DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHP-041ASWITCH PIANO DIP SPST 0.1A 6V Nidec Components Corporation |
1,192 |
|
Datasheet |
CHP | Bulk | Active | SPST | 4 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHP-041BSWITCH PIANO DIP SPST 0.1A 6V Nidec Components Corporation |
3,217 |
|
Datasheet |
CHP | Bulk | Active | SPST | 4 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-10TA2SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,418 |
|
- |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-10TB2SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
1,014 |
|
- |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CVS-04BSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
4,041 |
|
Datasheet |
CVS | Bulk | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
|
CHS-08A1SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,691 |
|
Datasheet |
CHS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-08B1SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
4,994 |
|
Datasheet |
CHS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

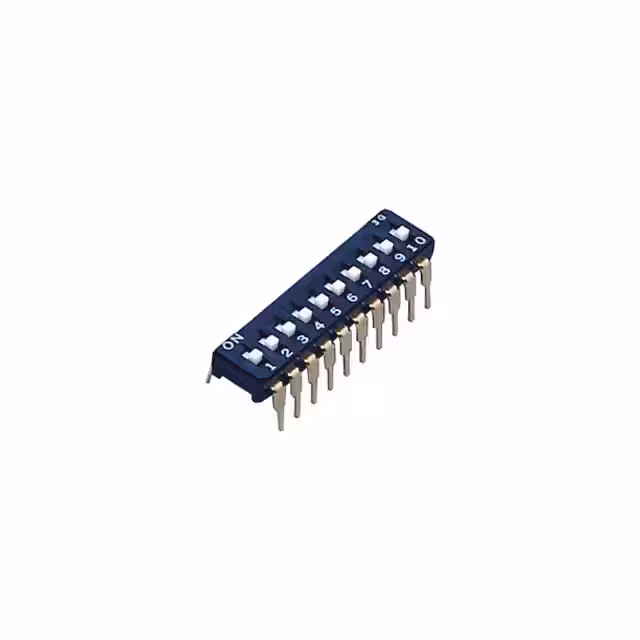

CFS-1002MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
3,516 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0512MBSWITCH PIANO DIP SPST 0.1A 6V Nidec Components Corporation |
4,437 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0501MBSWITCH PIANO DIP SPST 0.1A 6V Nidec Components Corporation |
1,920 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
