DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78H02RATSWITCH SLIDE DIP 4PST 0.15A 30V Grayhill Inc. |
3,499 |
|
Datasheet |
78 | Tube | Active | 4PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

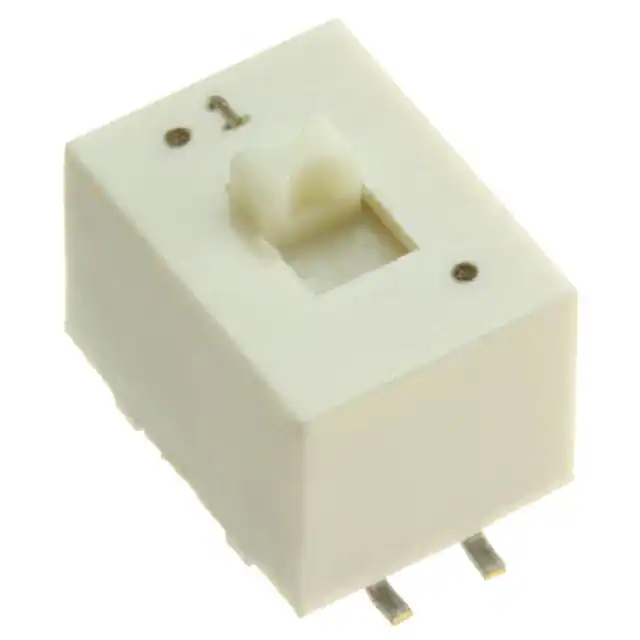

78HJ05GWTSWITCH SLIDE DIP SPDT 0.15A 30V Grayhill Inc. |
2,336 |
|
Datasheet |
78H | Tube | Obsolete | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78J05RATSWITCH SLIDE DIP SPDT 0.15A 30V Grayhill Inc. |
4,184 |
|
Datasheet |
78 | Tube | Active | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

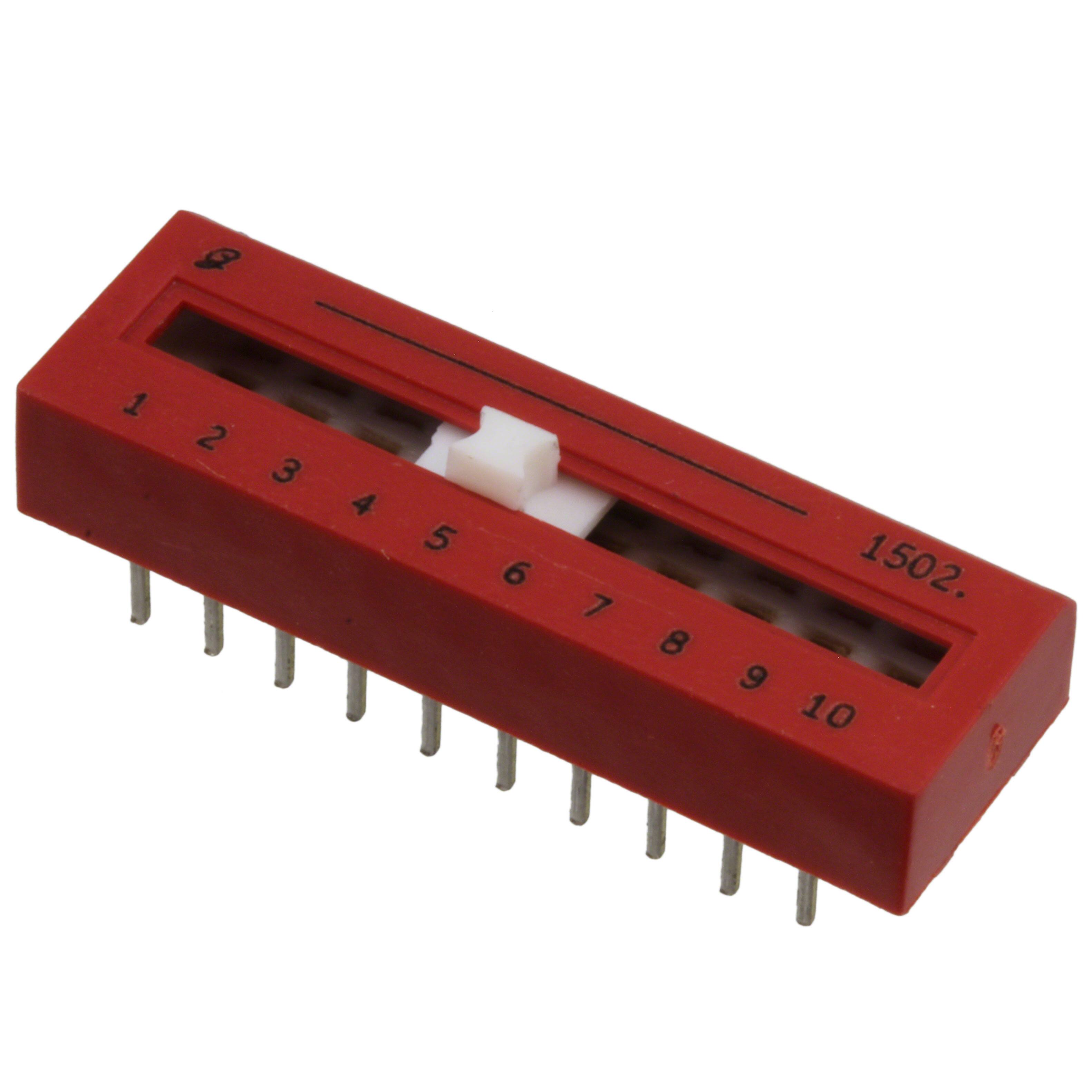

79C10TSWITCH SLIDE DIP SP10T 0.125A 6V Grayhill Inc. |
4,910 |
|
Datasheet |
79C | Tube | Obsolete | SP10T | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB03TSWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc. |
3,002 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 3 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB04LTSWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc. |
3,278 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Position Identification Line | -40°C ~ 85°C |
|
|
90GB04STSWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc. |
2,385 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90GB04TSWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc. |
1,092 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB05LTSWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc. |
1,306 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Position Identification Line | -40°C ~ 85°C |
|
|
90GB05SLTSWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc. |
2,256 |
|
Datasheet |
90GB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
