Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

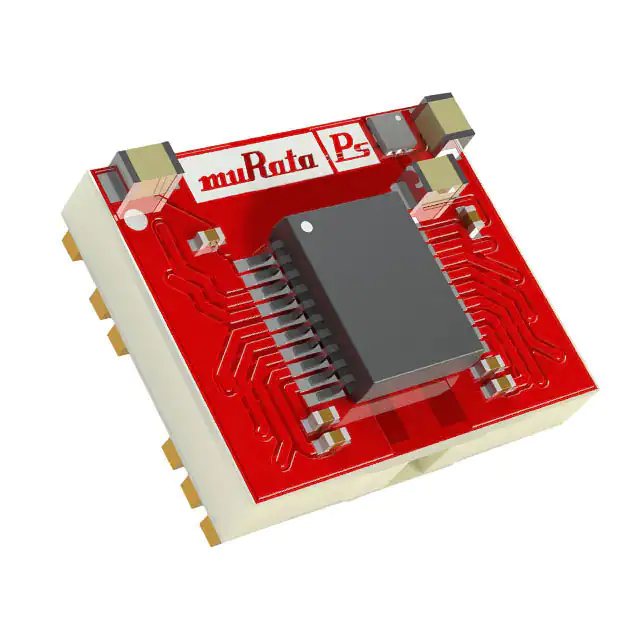

NMTTLD6S5MC-R7DGTL ISOL 1500VAC 2CH GEN PURP Murata Power Solutions Inc. |
2,562 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1500VAC | 25kV/µs | 25Mbps | 33ns, 33ns | 3ns | - | 4.5V ~ 5.5V | - | - | -40°C ~ 95°C | - | - |
|
NM485D6S5MC-R13DGTL ISOL 3000VAC 2CH RS485 Murata Power Solutions Inc. |
1,404 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | RS485 | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 500kbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | - |
|
|

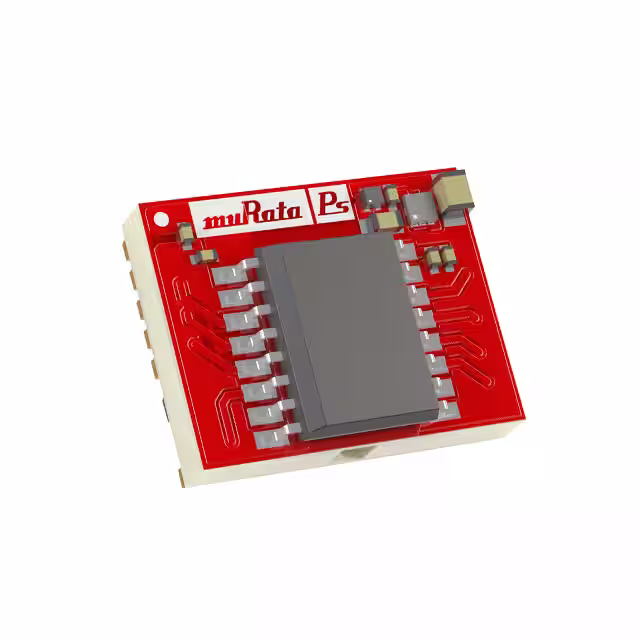

NM485D6S5MC-R7DGTL ISOL 3000VAC 2CH RS485 Murata Power Solutions Inc. |
1,525 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | RS485 | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 500kbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | - |
|

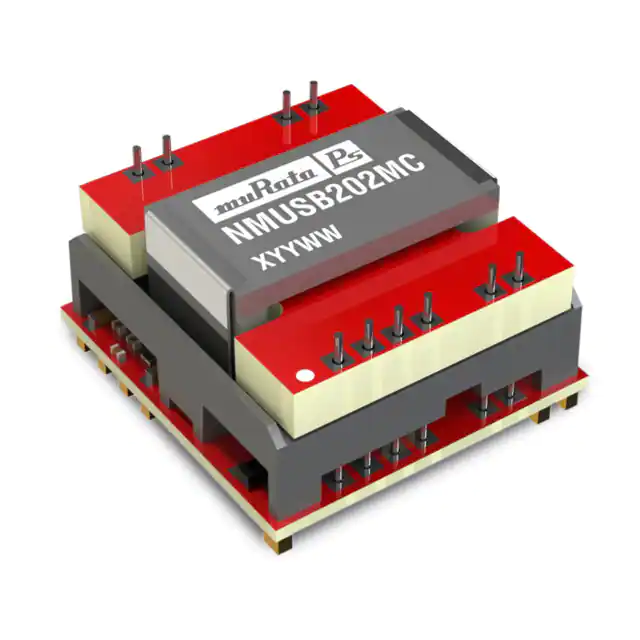

NMUSB202MC-R13DGTL ISOL 3000VAC 2CH USB MODULE Murata Power Solutions Inc. |
2,995 |
|
Datasheet |
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
|

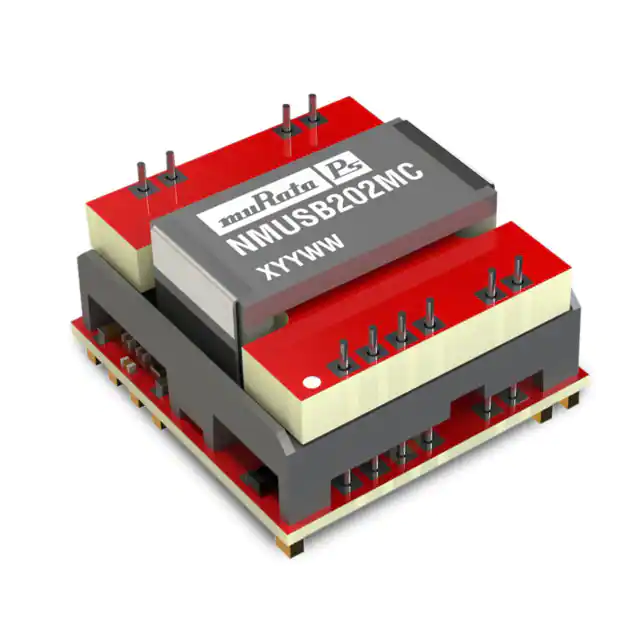

NMUSB202MC-R7DGTL ISOL 3000VAC 2CH USB MODULE Murata Power Solutions Inc. |
1,532 |
|
Datasheet |
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
|

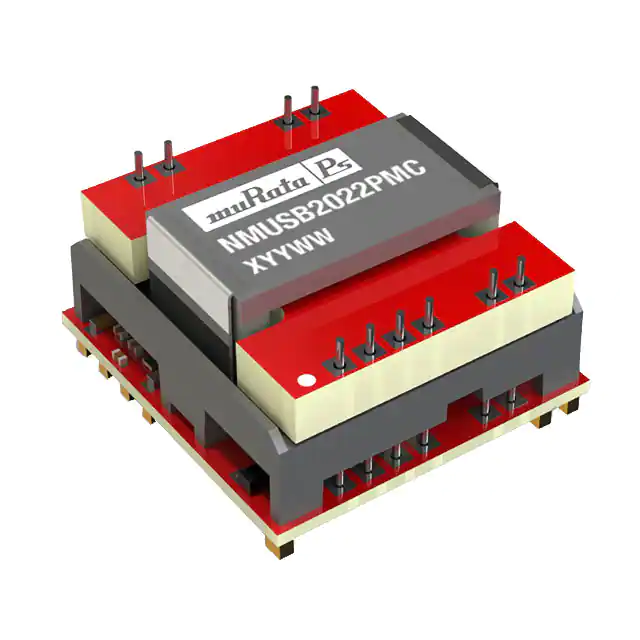

NMUSB2022PMC-R13DGT ISOL 4000VRMS 1CH USB MODULE Murata Power Solutions Inc. |
2,787 |
|
Datasheet |
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Capacitive Coupling | USB | Yes | 1 | - | Unidirectional | 4000Vrms | 25kV/µs | 12Mbps | - | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | Module |
|

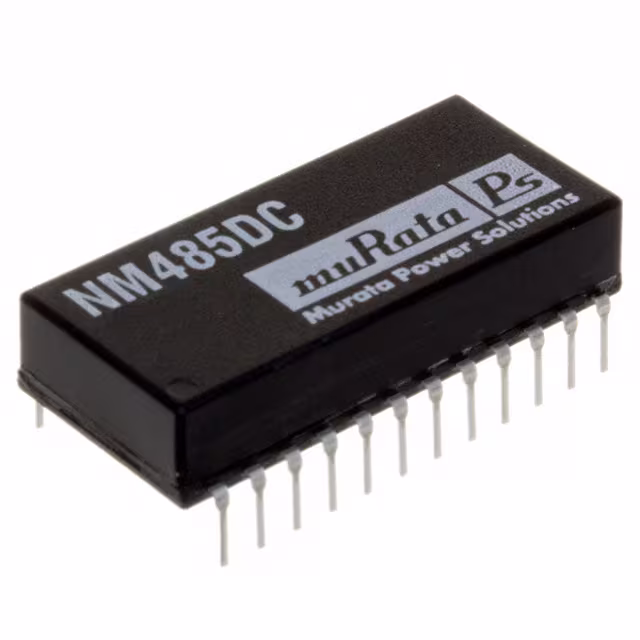

NM485DCDGTL ISO 1000VRMS 4CH GP 24DIL Murata Power Solutions Inc. |
2,247 |
|
Datasheet |
- | 24-DIP (0.667", 16.95mm) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 1000Vrms | - | 1.25Mbps | - | - | - | 4.75V ~ 5.25V | - | - | 0°C ~ 60°C | Through Hole | 24-DIL |
|

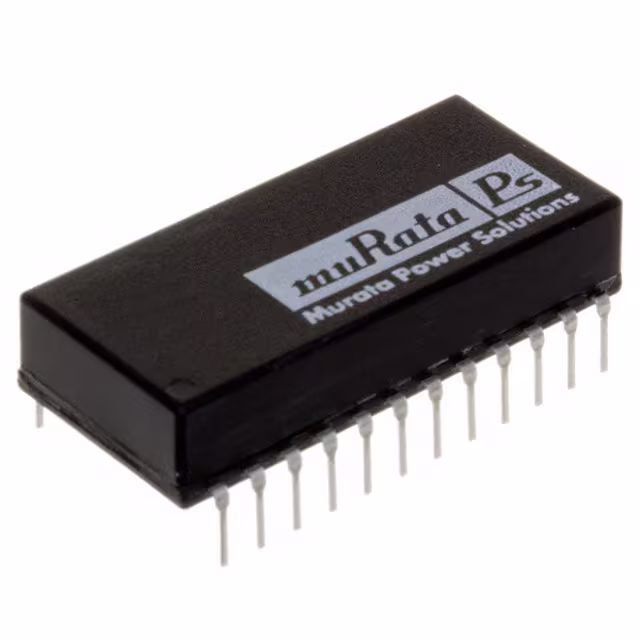

NM485SLCDGTL ISO 1000VRMS 2CH GP 24DIL Murata Power Solutions Inc. |
2,764 |
|
Datasheet |
- | 24-DIP (0.667", 16.95mm) | Tube | Obsolete | Capacitive Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1000Vrms | - | 2.5Mbps | - | - | - | 4.75V ~ 5.25V | - | - | 0°C ~ 70°C | Through Hole | 24-DIL |
|
|
NMTTLD6S5MC-R13DGTL ISO 1500VAC 2CH GP MODULE Murata Power Solutions Inc. |
1,007 |
|
Datasheet |
- | 16-SMD Module | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1500VAC | 25kV/µs | 25Mbps | 33ns, 33ns | 3ns | - | 4.5V ~ 5.5V | - | - | -40°C ~ 95°C | Surface Mount | Module |
|
|
NMUSB2022PMC-R7DGT ISOL 4000VRMS 1CH USB MODULE Murata Power Solutions Inc. |
3,909 |
|
Datasheet |
- | 13-SMD Module | Tape & Reel (TR) | Obsolete | Capacitive Coupling | USB | Yes | 2 | 1/1 | Bidirectional | 4000Vrms | 25kV/µs | 12Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | Module |
