Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
787026-01DAQ DEVICE MULTIFUNCT I/O PXIE |
1,171 |
|
Datasheet |
- | Box | Active | Multifunction I/O | DAQ Device | PXIe | - | - | - | - | - | - | - | - | - | - |
|
783861-02DAQ DEVICE ANALOG INPUT |
2,414 |
|
Datasheet |
C | Box | Active | Voltage | Module | - | Screw Terminal | 8 - Analog (Differential) | ±60V | 24 Bits | - | - | - | - | - | 1k - Simultaneous |
|

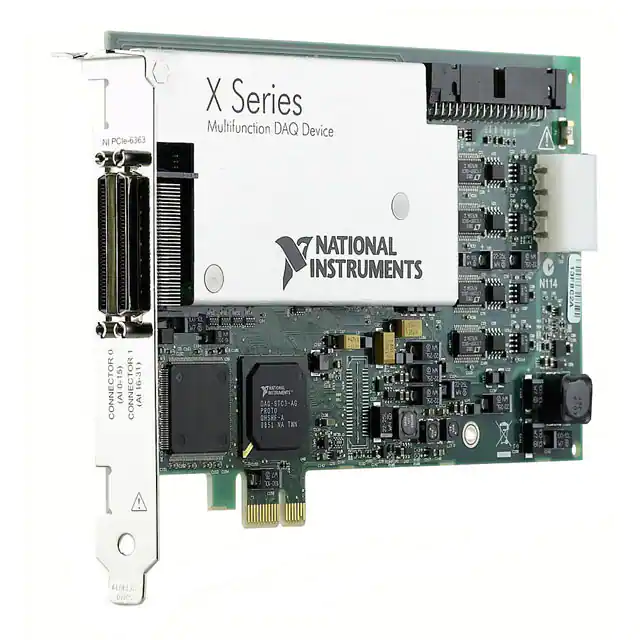

781051-01DAQ DEVICE MULTIFUNCT I/O PCIE |
3,979 |
|
Datasheet |
X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|

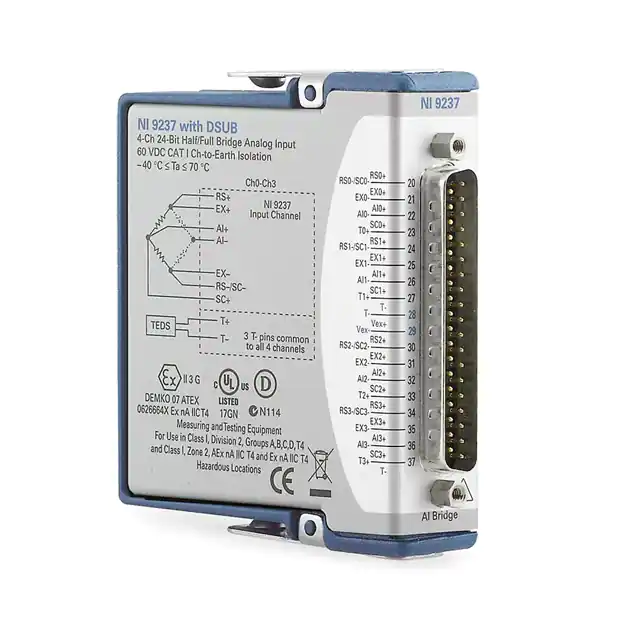

780264-01DAQ DEVICE ANALOG INPUT |
4,908 |
|
Datasheet |
C | Box | Active | Load, Pressure, Strain, Torque | Module | - | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|

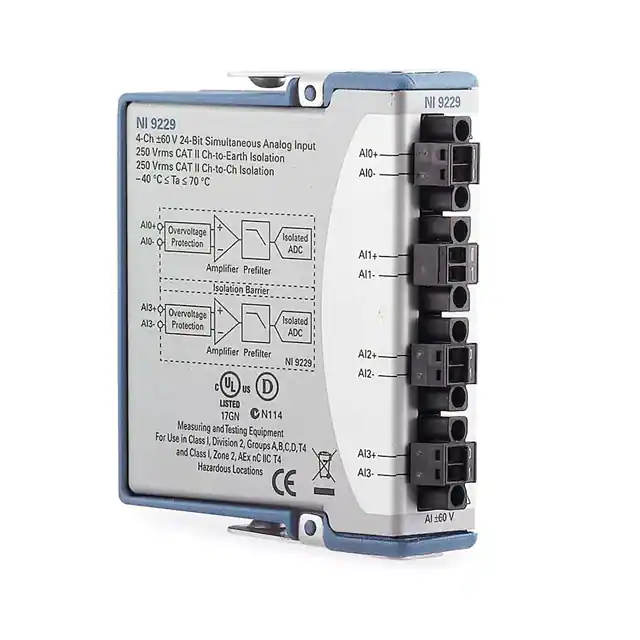

779785-01MODULE ANALOG INPUT |
3,245 |
|
Datasheet |
C | Box | Active | Analog Input | Module | - | - | 4 - Analog | ±60V | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
|
785605-01DAQ DEVICE MULTIFUNCT I/O PCIE |
4,029 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PCIe | D-Sub | - | 0 ~ 30V | - | - | 0 ~ 5V | - | 6 | - | - |
|

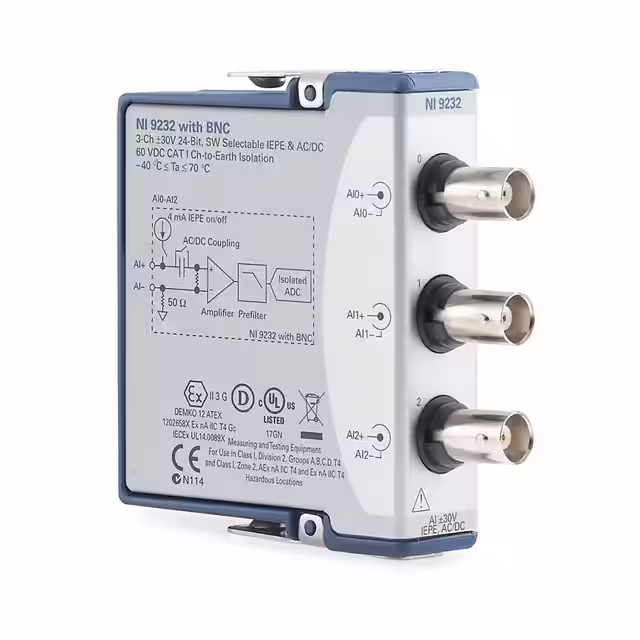

784397-01DAQ DEVICE ANALOG INPUT |
4,814 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 3 - Analog | ±30V | - | - | - | - | - | - | - |
|

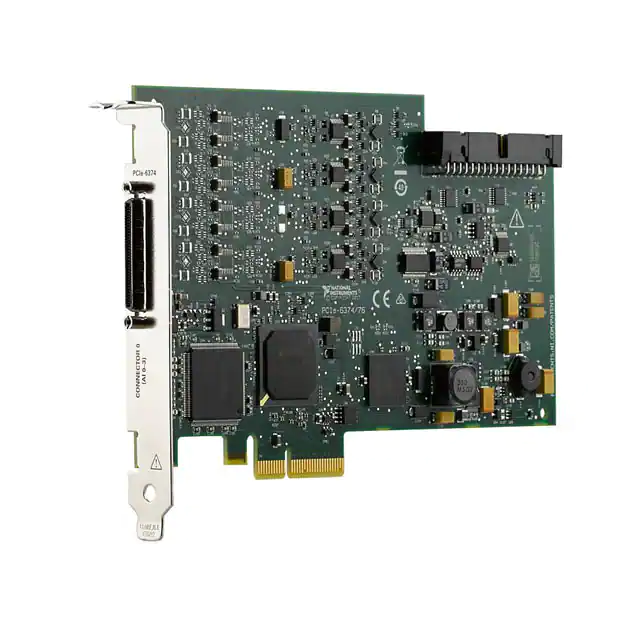

785817-01DAQ DEVICE MULTIFUNCT I/O PCIE |
4,418 |
|
Datasheet |
- | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 4 - Analog (Differential) | ±11V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 24 | 4 | 3.57M |
|
|
778572-27DAQ DEVICE MULTIFUNCTION I/O PXI |
1,079 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXI | - | 32 - Analog | - | - | 32 - Analog | - | - | - | - | - |
|

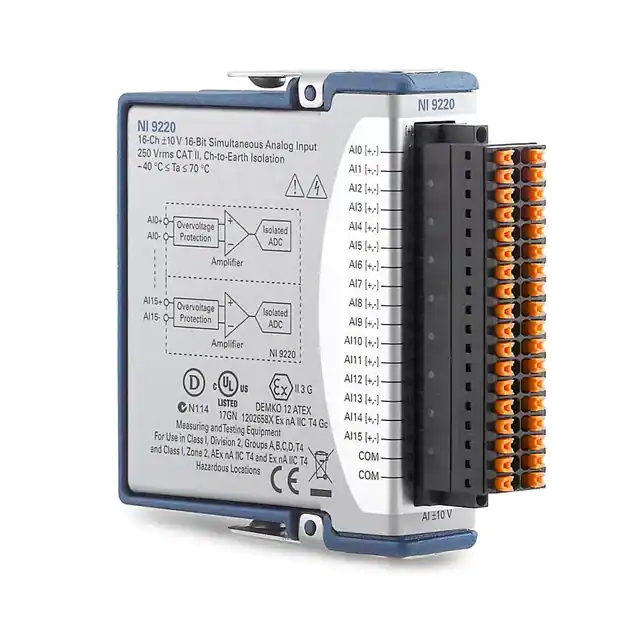

785188-01DAQ DEVICE ANALOG INPUT |
3,398 |
|
Datasheet |
C | Box | Active | Analog Input | DAQ Device | - | - | 16 - Analog | ±10V | - | - | - | - | - | - | - |
|
785996-01DAQ DEVICE ANALOG INPUT |
1,007 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 8 - Analog | - | - | - | - | - | - | - | - |
|

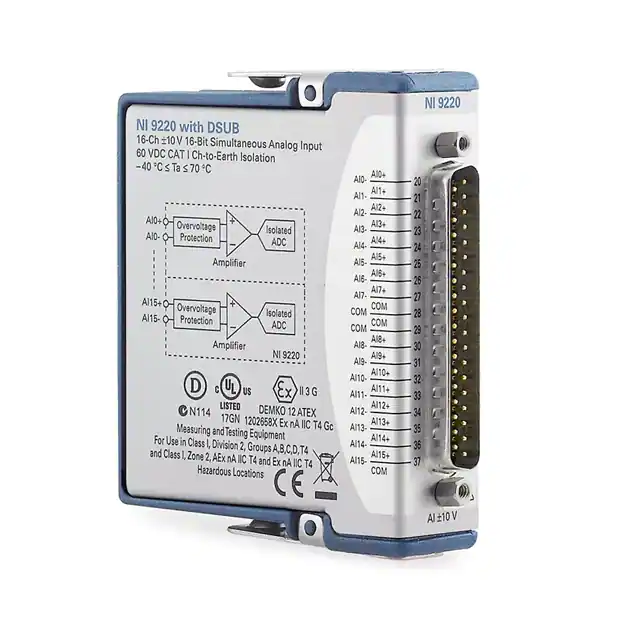

782615-01DAQ DEVICE ANALOG INPUT |
4,928 |
|
Datasheet |
C | Box | Active | Voltage | DAQ Device | - | - | 16 - Analog | ±10V | 16 Bits | - | - | - | - | - | 100k - Simultaneous |
|
782257-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,166 |
|
Datasheet |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Generic (OEM) | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|

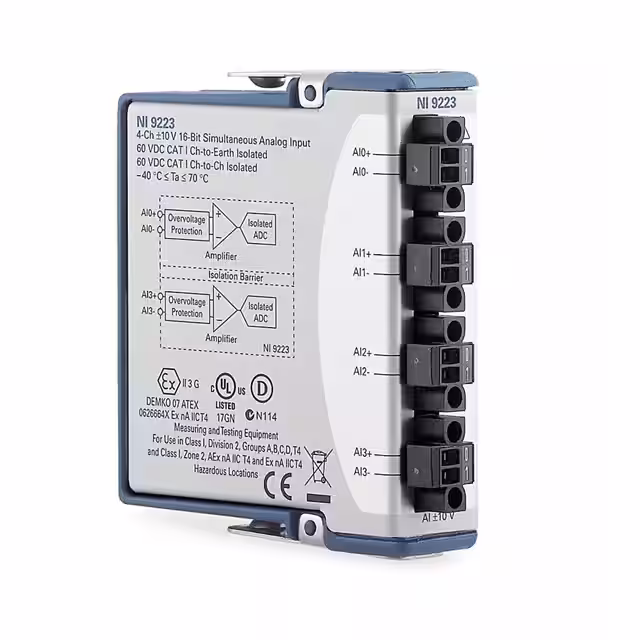

781398-01DAQ DEVICE ANALOG INPUT |
4,984 |
|
- |
C | Box | Active | Voltage | Module | - | - | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | 1M - Multiplexed |
|
|
780687-02DAQ DEVICE MULTIFUNCTION I/O PXI |
2,779 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXI | - | 2 - Digital | - | - | - | - | - | - | - | - |
|

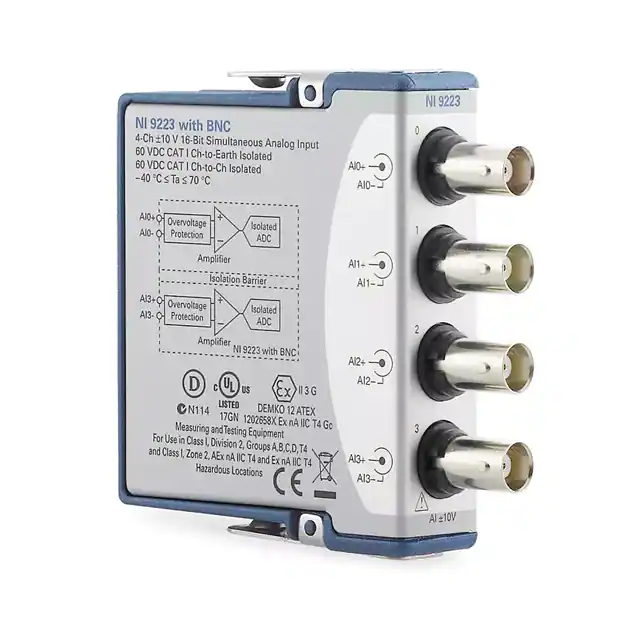

783284-01DAQ DEVICE ANALOG INPUT |
3,265 |
|
- |
C | Box | Active | Voltage | Module | - | - | 4 - Analog (Differential) | ±10V | 16 Bits | - | - | - | - | - | 1M - Simultaneous |
|
782255-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,875 |
|
Datasheet |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 4 | 1M - Multiplexed |
|
785815-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,415 |
|
Datasheet |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 8 - Analog (Differential) | ±11V | 16 Bits | 6 - Analog (Differential) | ±10V | 16 Bits | 24 | 4 | 500k |
|

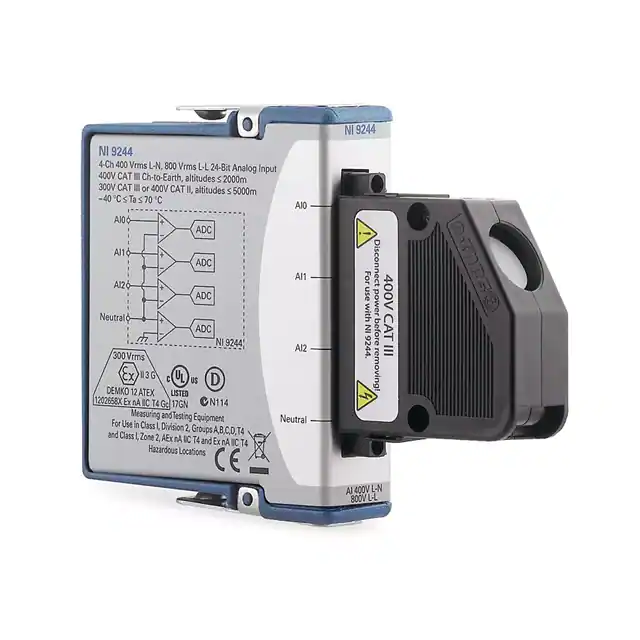

783106-01DAQ DEVICE ANALOG INPUT |
4,711 |
|
Datasheet |
C | Box | Active | Voltage | Module | - | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
|

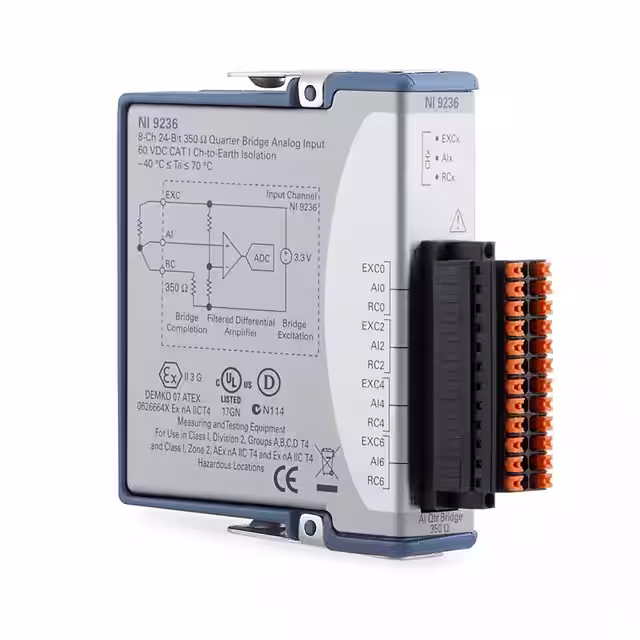

779994-02MODULE ANALOG INPUT |
1,155 |
|
- |
C | Box | Active | Analog Input | Module | - | Spring Terminal | 8 - Analog (Single-Ended) | - | 24 Bits | - | - | - | - | - | 10k - Simultaneous |
