Boxes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Container Type | Size / Dimension | Height | Area (L x W) | Design | Material | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

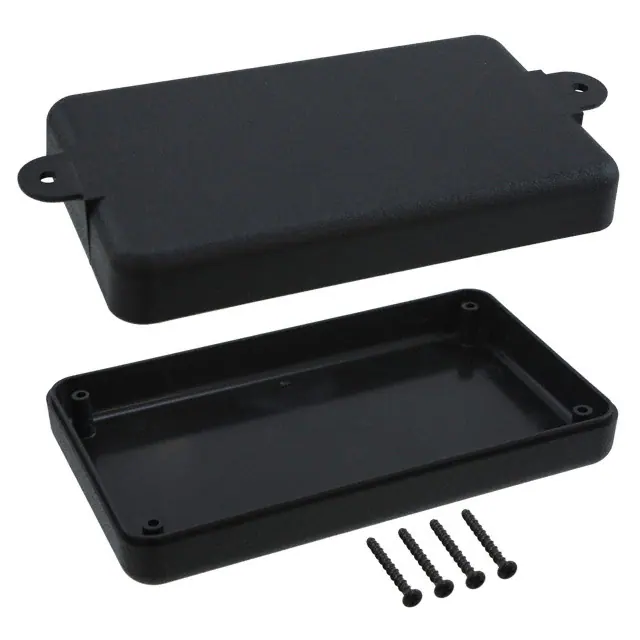

PT-11657-MBBOX ABS BLACK 5.63"L X 3.25"W Bud Industries |
3,922 |
|
Datasheet |
Plastibox Style H | Bulk | Active | Box | 5.625" L x 3.250" W (142.88mm x 82.55mm) | 1.372" (34.85mm) | 18.3in² (118cm²) | Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|

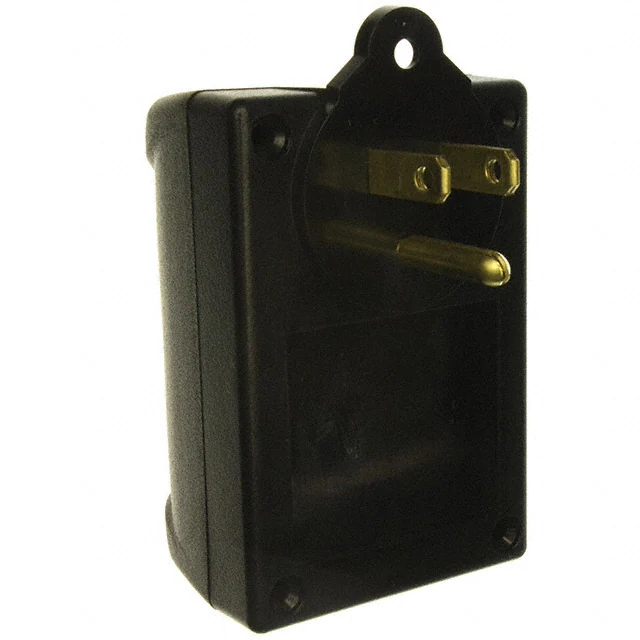

PPB-11860-BKBOX ABS BLACK 3.09"L X 2.09"W Bud Industries |
3,386 |
|
Datasheet |
PPB | Bulk | Active | Box | 3.086" L x 2.085" W (78.38mm x 52.96mm) | 1.647" (41.83mm) | 6.43in² (41.5cm²) | Hand Held, Split Sides | Plastic, ABS | Black | - | Mounting Flange, PCB Supports, Power Plug | - | UL94 V-0 |
|

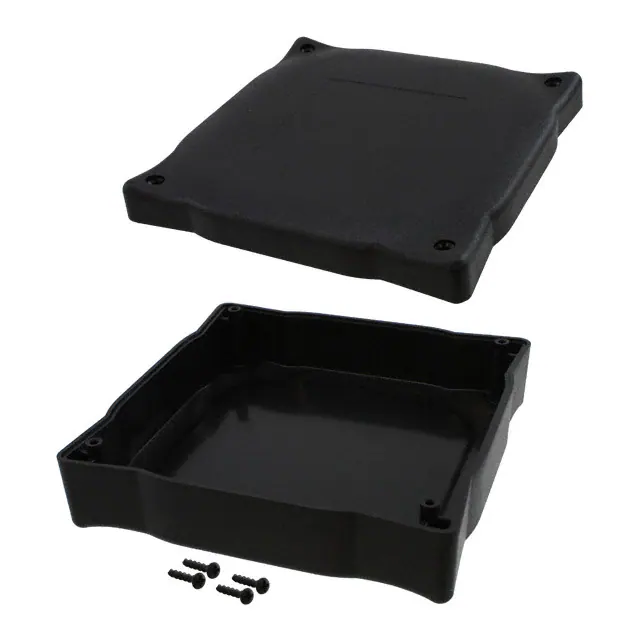

HH-3550BOX ABS BLACK 4.5"L X 4.5"W Bud Industries |
4,107 |
|
Datasheet |
Grabbers Style I | Bulk | Active | Box | 4.500" L x 4.500" W (114.30mm x 114.30mm) | 1.510" (38.35mm) | 20.3in² (131cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.108" (2.74mm) | PCB Supports | - | UL94 5VA |
|

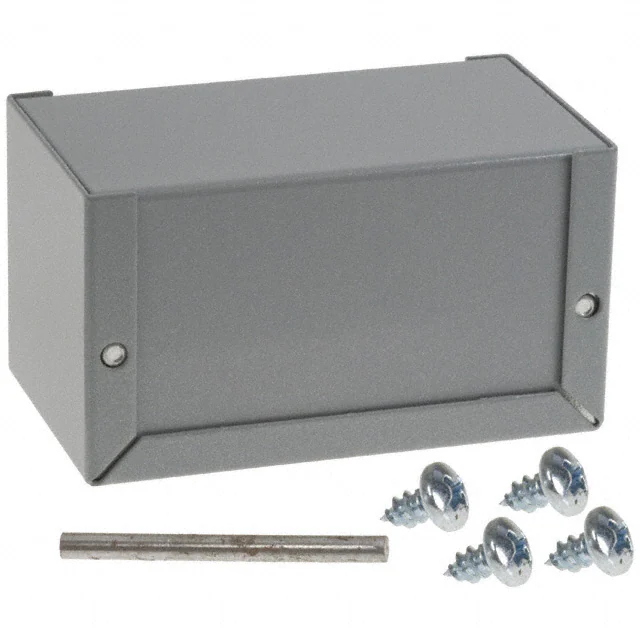

CU-2103-BBOX ALUM GRAY 4"L X 2.25"W Bud Industries |
2,058 |
|
Datasheet |
Mini-Box | Bulk | Active | Box | 4.000" L x 2.250" W (101.60mm x 57.15mm) | 2.250" (57.15mm) | 9.00in² (58.1cm²) | U Shaped Pieces | Metal, Aluminum | Gray | 0.040" (1.02mm) | - | - | - |
|

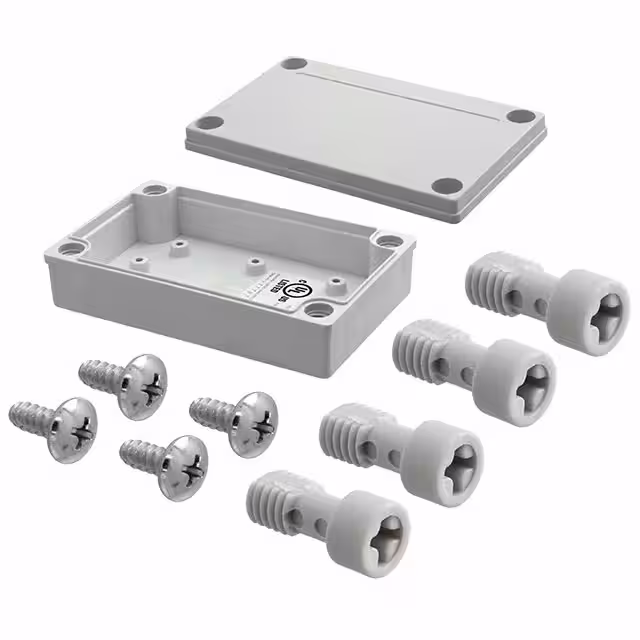

PIP-11760BOX PLASTIC GRAY 5.12"L X 3.15"W Bud Industries |
3,125 |
|
Datasheet |
PIP | Bulk | Active | Box | 5.118" L x 3.150" W (130.00mm x 80.00mm) | 1.378" (35.00mm) | 16.1in² (104cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.130" (3.30mm) | PCB Supports | IP67, NEMA 1,2,4,4X,6, UL-508 | UL94 V-0 |
|

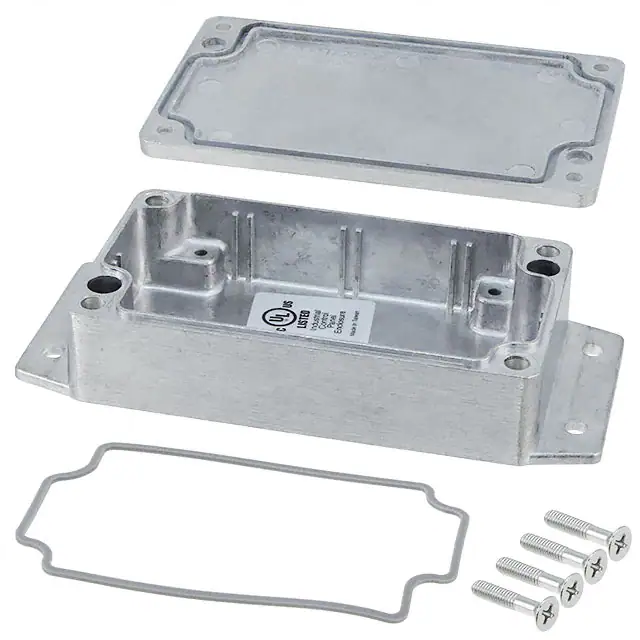

AN-2852-ABOX ALUM NATURAL 4.53"L X 2.56"W Bud Industries |
4,313 |
|
Datasheet |
AN-A | Bulk | Active | Box | 4.530" L x 2.560" W (115.06mm x 65.02mm) | 1.180" (29.97mm) | 11.7in² (75cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Mounting Flange, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
JB-3952-KOBOX STEEL GRAY 4"L X 3"W Bud Industries |
1,232 |
|
Datasheet |
JB | Box | Active | Box | 4.000" L x 3.000" W (101.60mm x 76.20mm) | 6.000" (152.40mm) | 12.0in² (77cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Knockouts, Wall Mount | NEMA 1 | - |
|
CU-3287BOX ABS BLACK 6.112"L X 4.612"W Bud Industries |
4,895 |
|
Datasheet |
Utilibox Style A | Box | Active | Box | 6.112" L x 4.612" W (155.24mm x 117.14mm) | 1.356" (34.44mm) | 28.2in² (182cm²) | Cover Included | Plastic, ABS | Black | 0.130" (3.30mm) | PCB Supports | - | UL94 5VA |
|

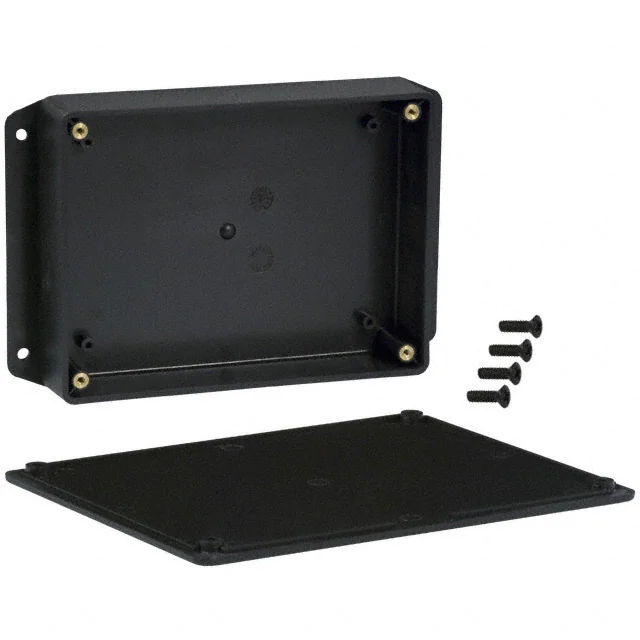

CU-3287-MBBOX ABS BLACK 6.112"L X 4.612"W Bud Industries |
3,443 |
|
Datasheet |
Utilibox Style A | Box | Active | Box | 6.112" L x 4.612" W (155.24mm x 117.14mm) | 1.356" (34.44mm) | 28.2in² (182cm²) | Cover Included | Plastic, ABS | Black | 0.130" (3.30mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|

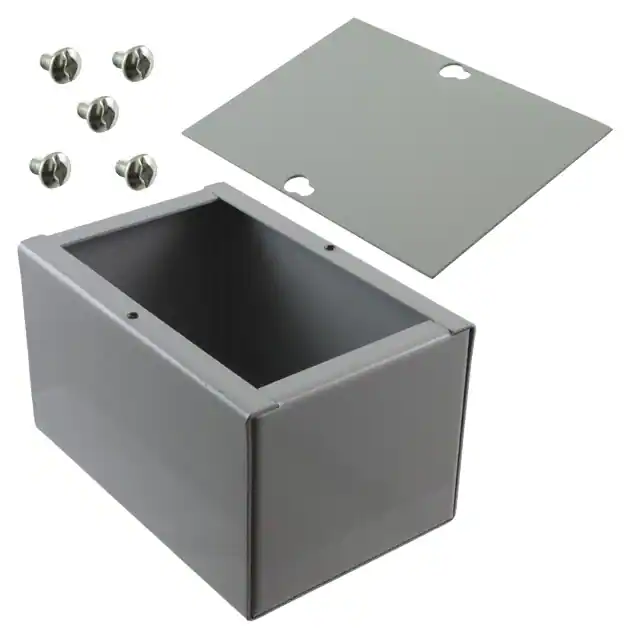

JB-3944BOX STEEL GRAY 4"L X 3.5"W Bud Industries |
2,591 |
|
Datasheet |
JB | Box | Active | Box | 4.000" L x 3.500" W (101.60mm x 88.90mm) | 6.000" (152.40mm) | 14.0in² (90cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Wall Mount | NEMA 1 | - |
