Backplanes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Panel Units | Number of Channels | Interface | 1st Connector Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
23001010BACKPLANE 3U 10 CHANNEL VME J1 |
4,706 |
|
Datasheet |
VMEbus | Box | Active | 3U | 10 | VME J1 | 0.800" (20.32mm) |
|
23001021BACKPLANE 3U 21 CHANNEL VME J1 |
4,511 |
|
Datasheet |
VMEbus | Box | Active | 3U | 21 | VME J1 | 0.800" (20.32mm) |
|
23006300BACKPLANE 3U 8 CHAN COMPACTPCI |
2,642 |
|
- |
CompactPCI | Box | Active | 3U | 8 | CompactPCI® | - |
|
23006-862BACKPLANE 2 CHAN |
2,659 |
|
Datasheet |
* | Bulk | Active | - | - | - | - |
|
VMEBP21J1BACKPLANE 3U 21 CHAN VME J1/J2 |
2,793 |
|
Datasheet |
VME | Bulk | Active | 3U | 21 | VME J1/J2 | 0.800" (20.32mm) |
|
|
6BP16-26BP16 - 16 CHAN BP W RS-232 |
1,050 |
|
Datasheet |
* | Bulk | Active | - | - | - | - |
|
23001005BACKPLANE 3U 5 CHANNEL VME J1 |
4,330 |
|
Datasheet |
VMEbus | Box | Active | 3U | 5 | VME J1 | 0.800" (20.32mm) |
|
23006814BACKPLANE 3U 4 CHAN COMPACTPCI |
2,799 |
|
Datasheet |
CompactPCI | Box | Active | 3U | 4 | CompactPCI® | - |
|
PCA-6114P7-0E1EBACKPLANE 14 CHAN COMPACTPCI |
1,444 |
|
Datasheet |
- | Bulk | Active | - | - | CompactPCI® | - |
|
23001004BACKPLANE 3U 4 CHANNEL VME J1 |
4,007 |
|
Datasheet |
VMEbus | Box | Active | 3U | 4 | VME J1 | 0.800" (20.32mm) |
|

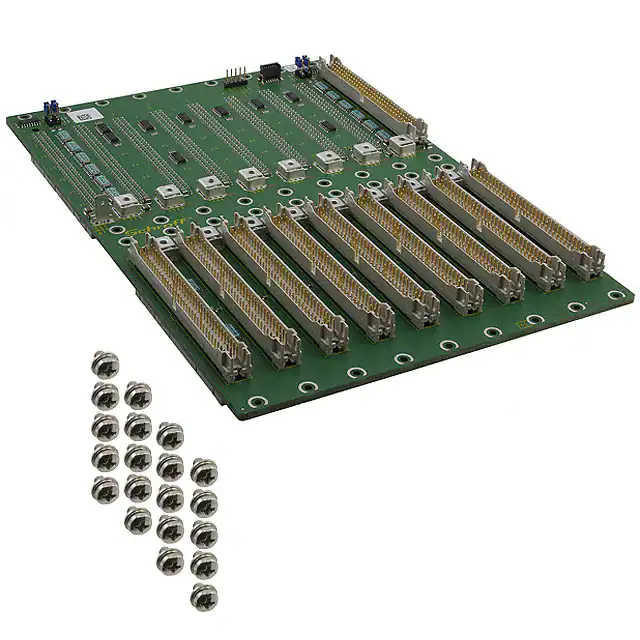

23001069BACKPLANE 6U 9 CHANNEL VME J1/J2 |
2,640 |
|
Datasheet |
VMEbus | Box | Active | 6U | 9 | VME J1/J2 | 0.800" (20.32mm) |
|

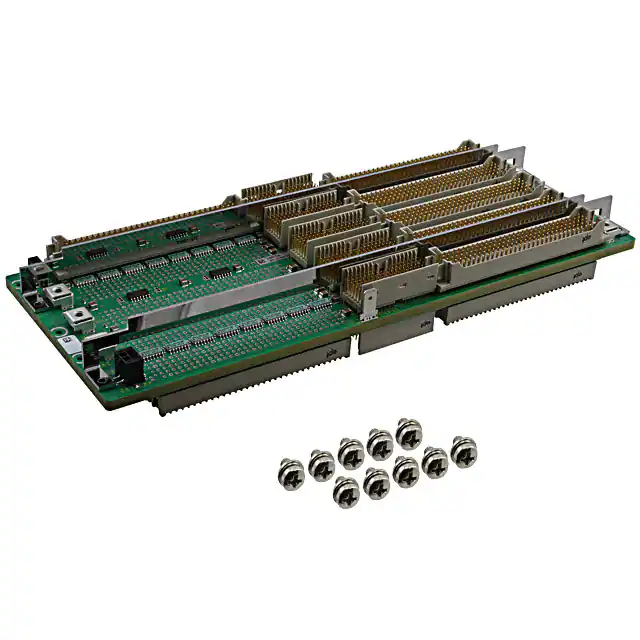

23001535BACKPLANE 6U 5 CHANNEL VME J1/J2 |
2,814 |
|
Datasheet |
VME64 | Box | Active | 6U | 5 | VME J1/J2 | 0.800" (20.32mm) |
|
23001007BACKPLANE 3U 7 CHANNEL VME J1 |
4,739 |
|
Datasheet |
VMEbus | Box | Active | 3U | 7 | VME J1 | 0.800" (20.32mm) |
|
|
VMEBPE05P00BACKPLANE 6U 5 CHANNEL VME J1/J2 |
2,251 |
|
Datasheet |
VME | Bulk | Active | 6U | 5 | VME J1/J2 | 0.800" (20.32mm) |
|
|
PCA-6104-0C2EBACKPLANE 4 CHAN HALF SIZE |
4,177 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - |
|
|
PCA-6106-0B2EBACKPLANE 6 CHAN HALF SIZE |
3,964 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - |
|
|
PCA-6104P4-0B2EBACKPLANE 4 CHAN HALF SIZE 4PC |
2,292 |
|
Datasheet |
* | Bulk | Active | - | - | - | - |
|
|
PCA-6105P5-0B2EBACKPLANE 5 CHAN HALF SIZE 5PC |
2,566 |
|
Datasheet |
* | Bulk | Active | - | - | - | - |
|
|
PCA-6108-0B2EBACKPLANE 8 CHAN 8 ISA |
4,955 |
|
- |
* | Bulk | Obsolete | - | - | - | - |
|
|
PCA-6108E-0C2EBACKPLANE 8 CHAN 8 ISA |
4,079 |
|
- |
* | Bulk | Obsolete | - | - | - | - |
