DIN 41612
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Style | Level, Class | Mounting Type | Termination | Features | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCN12-10S-2.54DSA(71)CONN DIN RCPT 10POS PCB GOLD |
7,269 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Receptacle, Female Sockets | 10 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12-24S-2.54DSA(71)CONN DIN RCPT 24POS PCB GOLD |
6,054 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Receptacle, Female Sockets | 24 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12-28S-2.54DSA(71)CONN DIN RCPT 28POS PCB GOLD |
6,461 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Receptacle, Female Sockets | 28 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12-32S-2.54DSA(71)CONN DIN RCPT 32POS PCB GOLD |
4,147 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Receptacle, Female Sockets | 32 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12-50S-2.54DSA(71)CONN DIN RCPT 50POS PCB GOLD |
7,352 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Receptacle, Female Sockets | 50 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12-96P-2.54DS(71)CONN DIN HDR 96POS PCB RA GOLD |
6,318 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Header, Male Pins | 96 | All | 0.100" (2.54mm) | 3 | - | - | Through Hole, Right Angle | Solder | - | Gold | 3.94µin (0.10µm) |
.jpg)
|

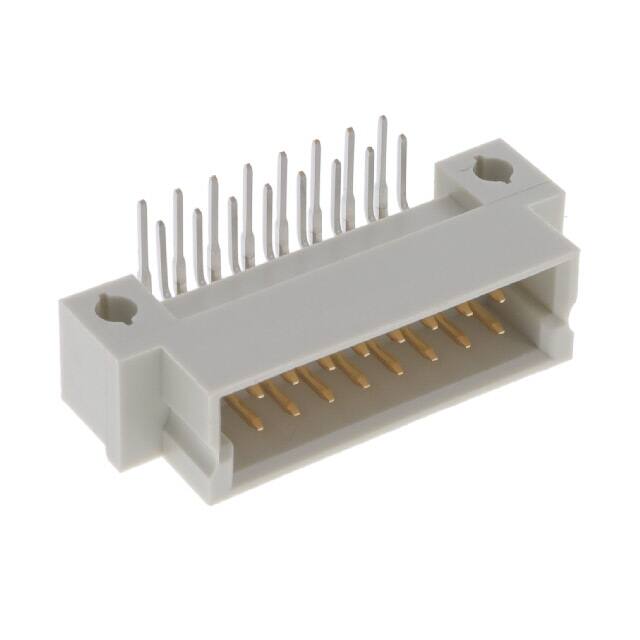

PCN12A-16P-2.54DS(71)CONN DIN HDR 16POS PCB RA GOLD |
7,535 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Header, Male Pins | 16 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole, Right Angle | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12A-28P-2.54DS(71)CONN DIN HDR 28POS PCB RA GOLD |
8,720 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Header, Male Pins | 28 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole, Right Angle | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12A-96P-2.54DS(71)CONN DIN HDR 96POS PCB RA GOLD |
2,995 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Header, Male Pins | 96 | All | 0.100" (2.54mm) | 3 | - | - | Through Hole, Right Angle | Solder | - | Gold | 3.94µin (0.10µm) |
|
|
PCN12E-32S-2.54DSA(84)CONN DIN RCPT 32POS PCB GOLD |
2,816 |
|
Datasheet |
PCN12 | Bulk | Active | Receptacle, Female Sockets | 32 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole | Solder | Board Lock | Gold | - |
|
|
PCN12EA-90P-2.54DS(71)CONN DIN HDR 90POS PCB RA GOLD |
3,095 |
|
Datasheet |
PCN12 | Bulk | Obsolete | Header, Male Pins | 90 | All | 0.100" (2.54mm) | 2 | - | - | Through Hole, Right Angle | Solder | Board Lock | Gold | 3.94µin (0.10µm) |
|
|
102A10029XCONN DIN RCPT 21POS PNL MNT GOLD |
5,030 |
|
Datasheet |
- | Bulk | Obsolete | Receptacle, Female Sockets | 21 | All | - | 2 | - | 3 | Panel Mount | Solder Lug | - | Gold | Flash |
|
|
86093488109758E1LFCONN DIN RCPT 96POS IN-LINE GOLD |
5,863 |
|
Datasheet |
8609 | Tray | Obsolete | Receptacle, Female Sockets | 96 | 48 | 0.100" (2.54mm) | 3 | C | 2 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Gold | - |
|
|
86094168309788E1LFCONN DIN RCPT 48POS IN-LINE GOLD |
4,228 |
|
Datasheet |
8609 | Tray | Obsolete | Receptacle, Female Sockets | 48 | All | 0.100" (2.54mm) | 3 | C/2 (1/2 C) | - | Free Hanging (In-Line) | Solder Eyelet(s) | - | Gold | - |
|
|
86094328109758E1LFCONN DIN RCPT 96POS PCB GOLD |
9,550 |
|
- |
8609 | Tray | Obsolete | Receptacle, Female Sockets | 96 | 32 | 0.100" (2.54mm) | 3 | C | 2 | Through Hole | Solder | - | Gold | - |
|
|
86094328109788E1LFCONN DIN RCPT 96POS PCB GOLD |
9,067 |
|
Datasheet |
8609 | Tray | Obsolete | Receptacle, Female Sockets | 96 | 32 | 0.100" (2.54mm) | 3 | C | - | Through Hole | Solder | - | Gold | - |
|
|
86093968108785E1LFCONN DIN HDR 96POS IN-LINE GOLD |
6,683 |
|
Datasheet |
MIL-C-55302, 8609 | Tray | Obsolete | Header, Male Pins | 96 | All | 0.100" (2.54mm) | 3 | C | - | Free Hanging (In-Line) | Solder Eyelet(s) | - | Gold, GXT™ | - |
|
|
86093968109755E1LFCONN DIN HDR 96POS IN-LINE GOLD |
4,217 |
|
Datasheet |
8609 | Tray | Obsolete | Header, Male Pins | 96 | All | 0.100" (2.54mm) | 3 | C | 2 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Gold, GXT™ | - |
|
|
86093968115785RLLFCONN DIN RCPT 96POS PCB GOLD |
7,036 |
|
- |
MIL-C-55302, 8609 | Tray | Obsolete | Receptacle, Female Sockets | 96 | All | 0.100" (2.54mm) | 3 | C | - | Through Hole | Solder | - | Gold | - |
|
|
148684-1CONN DIN RCPT 32POS PCB |
4,527 |
|
Datasheet |
Eurocard | Bulk | Obsolete | Receptacle, Female Sockets | 32 (24 + 8 Power) | All | 0.100" (2.54mm) | 3 | M | 1 | Through Hole | Solder | - | - | - |
